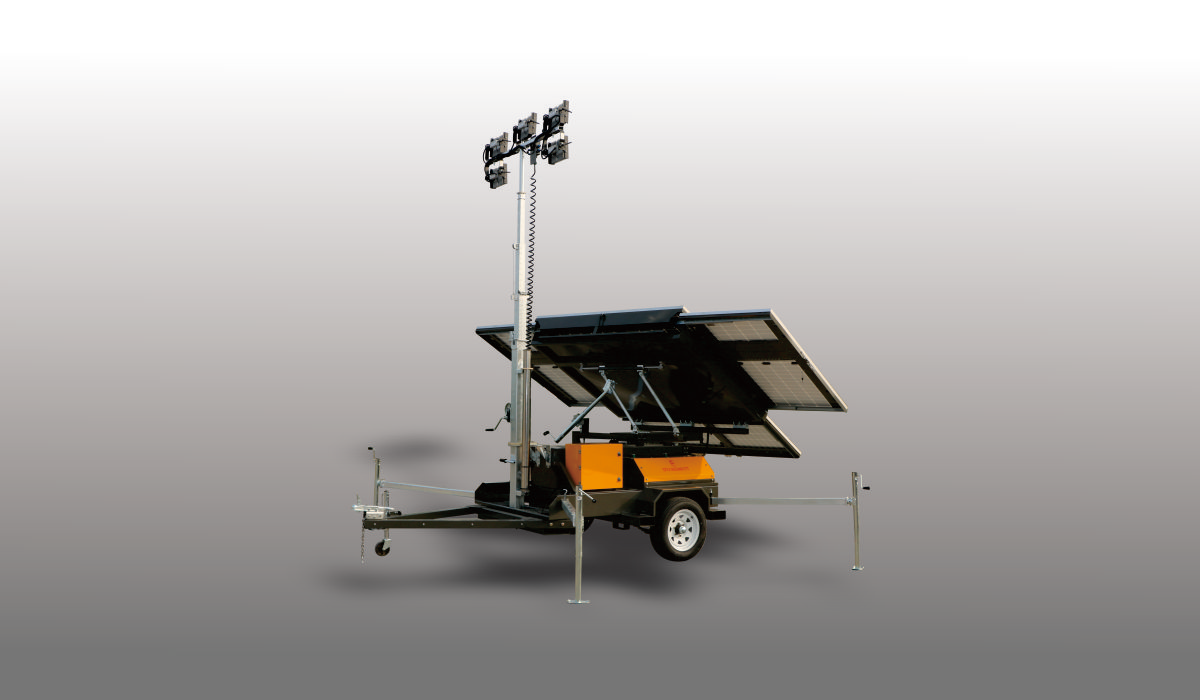

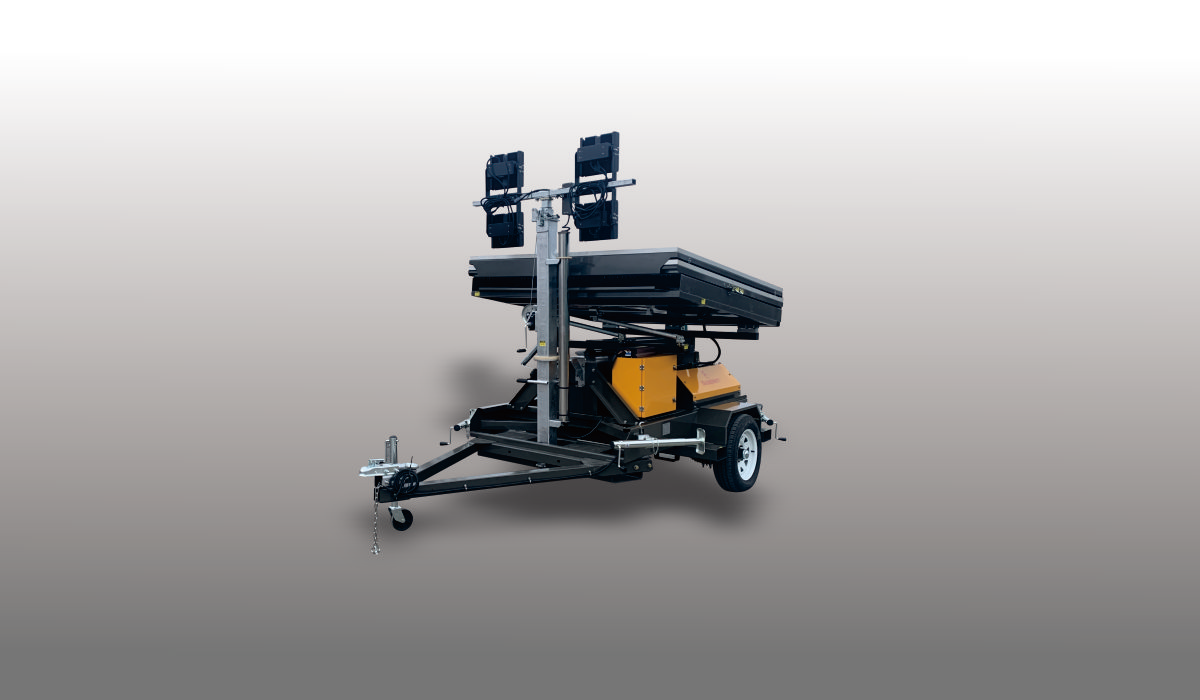

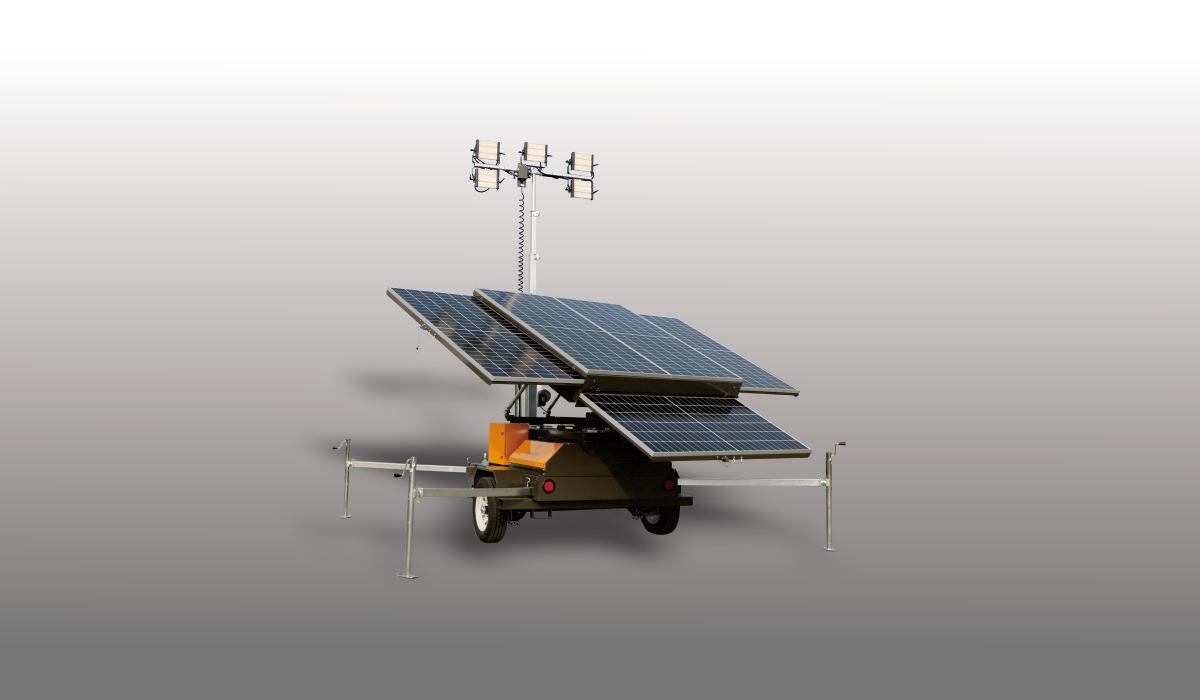

KANSAS Series Solar Light Towers SX9-R600/2275
KANSAS series solar light towers SX9-R600/2275 is efficient and delivers high performance, giving workers good visibility while allowing sites to increase sustainability with zero CO₂ emissions and zero noise, zero operating costs (diesel fuel, maintenance, labor), it is 100% renewable energy, stronger structure can load more power solar panels and batteries, patented rotating mechanism can adjust angle of solar panel to align with the sun's location perfectly to achieve maximum solar yield. Equip with latest photovoltaic and Energy storage controller system, very intelligent, it can be monitored by phone APP to set auto timer switches auto turn on-off the lights.
Main Feature
6*400 W LED, 396,000 Lumens
Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.
6*400W LED or 6*600W LED are optional.
| Solar Light Tower | |||||
| Standard Model | SX9-R600/2275 | SX9-P600/2275 | SX9-R750/2275 | SX9-P750/2275 | |
| Solar panel & battery system | System voltage | 24 VDC | |||
| Solar panel system | 2,275 W- 5*455 W Mono | ||||
| Retractable panel system | Manual sliding system with guide rail | ||||
| Solar system backwards movement | 490mm for sunshine direction adjustment | ||||
| Solar system sunshine direction | 90°(± 45°) adjustable | ||||
| Solar system sunshine tilt | Manually 7.5°- 32° adjustable with a jack | ||||

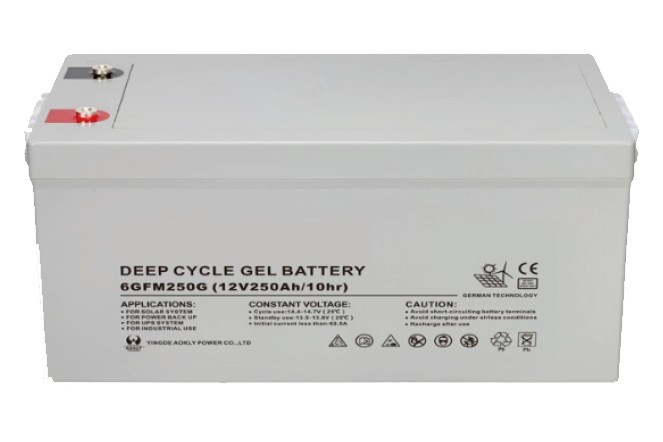

| Battery | 8*250 Ah Gel battery |
3*150Ah Lithium battery |
8*250 Ah Gel battery |
3*150Ah Lithium battery |
|

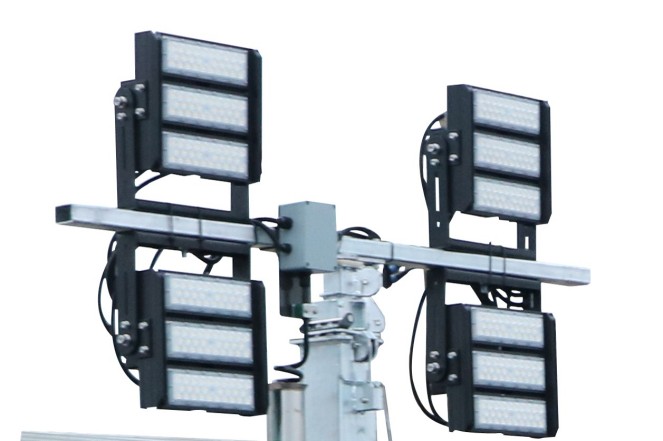

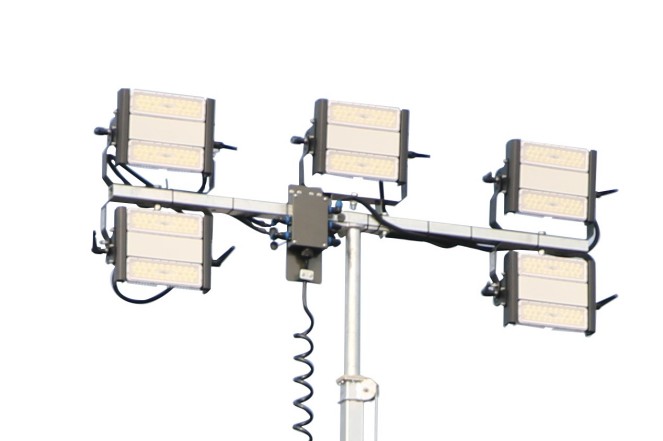

| Mast & Luminaire | Luminaire(DC 24V with dimming) | 600 W-4*150 W LED | 750 W-5*150 W LED | ||
| Luminous flux | 90,000 Lumen | 112,500 Lumen | |||
| Mast style | 5 sections; 2,500 lb manual winch | ||||
| Mast rotation | Manual 225° with self-lock | ||||
| Trailer | Suspension & brake | Single leaf-spring axle without brake | |||
| Tow bar | "A" style frame with a directional wheel | ||||
| Forklift slots | 2 sides + rear | ||||
| Stabilizing leg | 4 retractable jacks | ||||
| Wheel | 16" rim with regular tire | ||||
| Tow Coupler | Switchable 2" ball coupler with 2½" pintle ring | ||||
| Max towing speed | 100 km/h (62 mph) | ||||
| General Data | Max. lighting hours with batteries fully charged | 16 hours (Theoretical data for reference only) | 12 hours (Theoretical data for reference only) | ||
| Max. wind resistance (All solar panels retracked) | 20 m/s (45 mph) | ||||
| Max. quantity for loading in 40' high cube | 5 | ||||
| Optional parts or accessories | External DC power input | DC 24V receptacle | |||
| Battery Charger with cable & plug | 1 pcs | ||||
| R-Regular configuration—Gel batteries; P-Premium configuration—Iron-lithium batteries | |||||
| Notes: | |||||
| 1. How full the batteries be charged by solar are completely depend on the weather, season and location. | |||||
| 2. For keeping the lighting hours you need, please adjust the lighting time of controller or LED load by the dimming knob as the weather & season. | |||||
