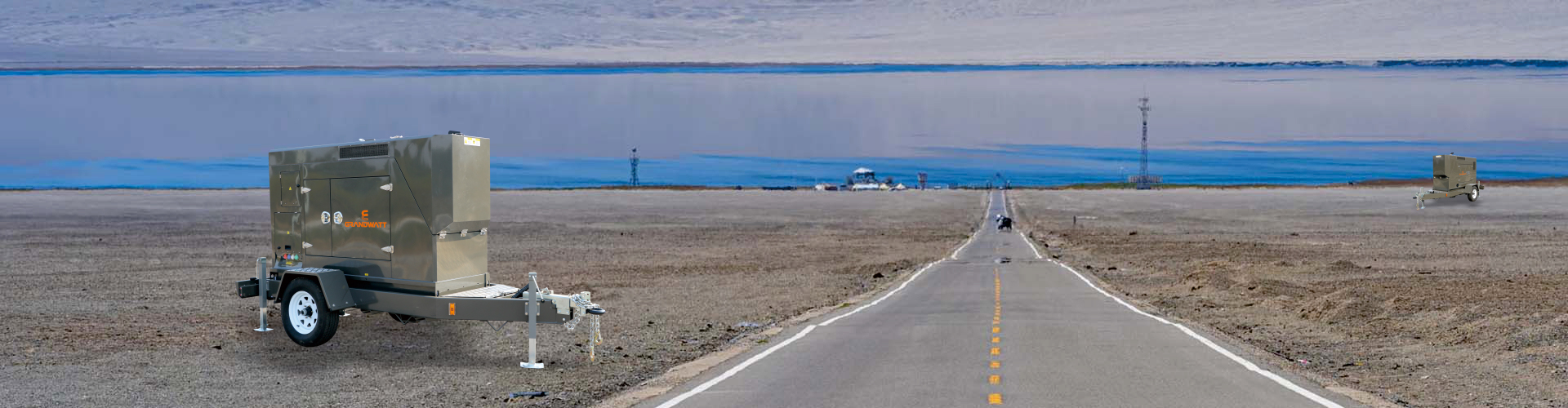

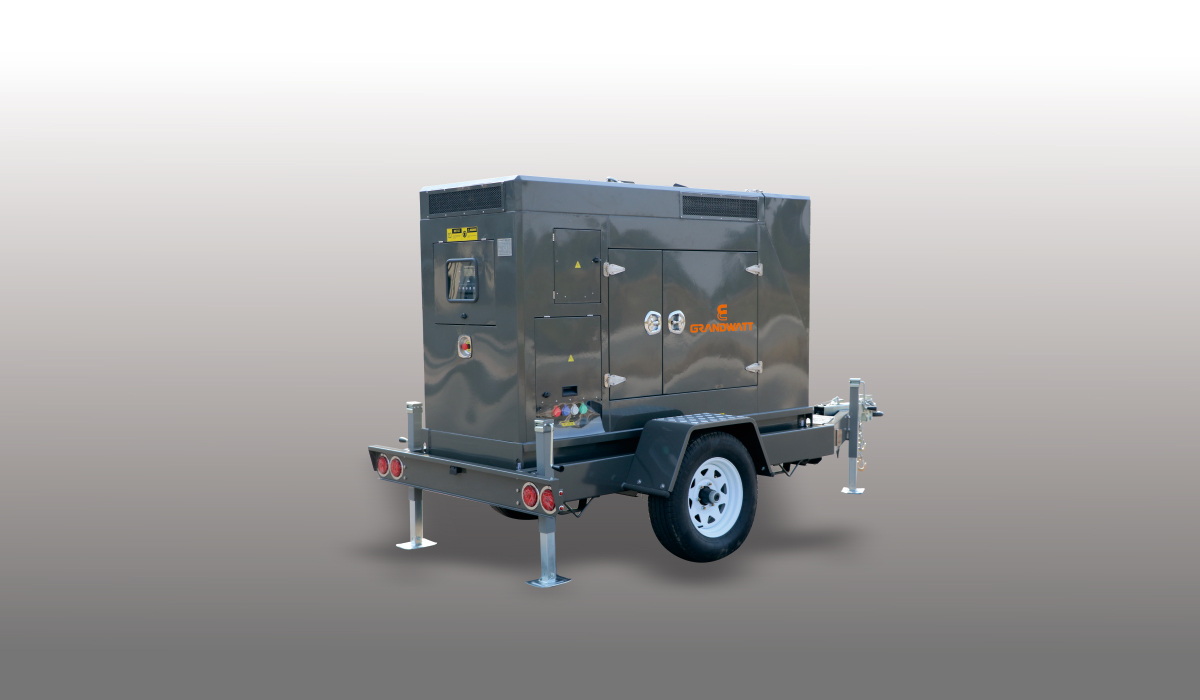

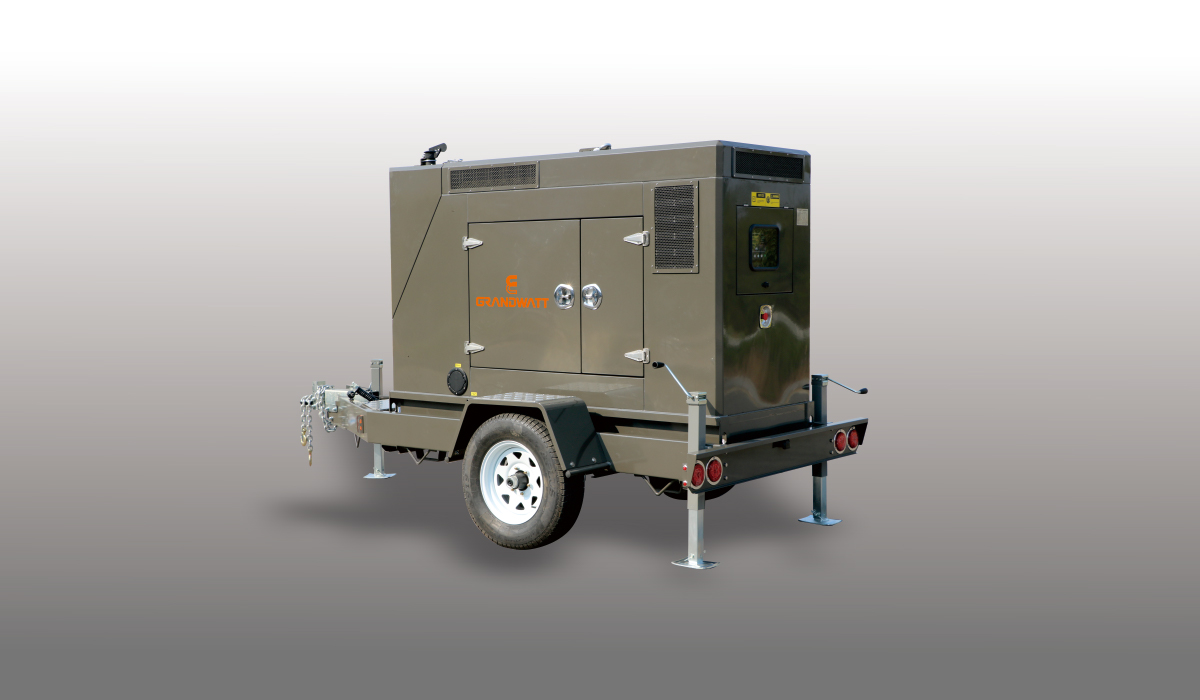

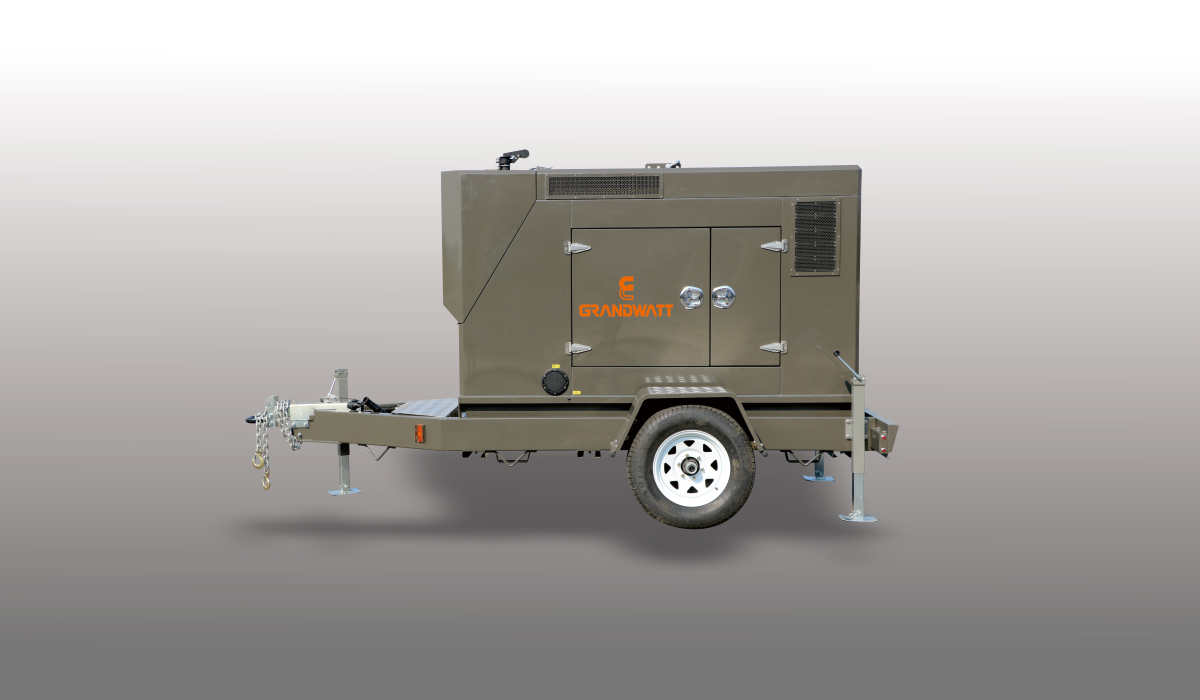

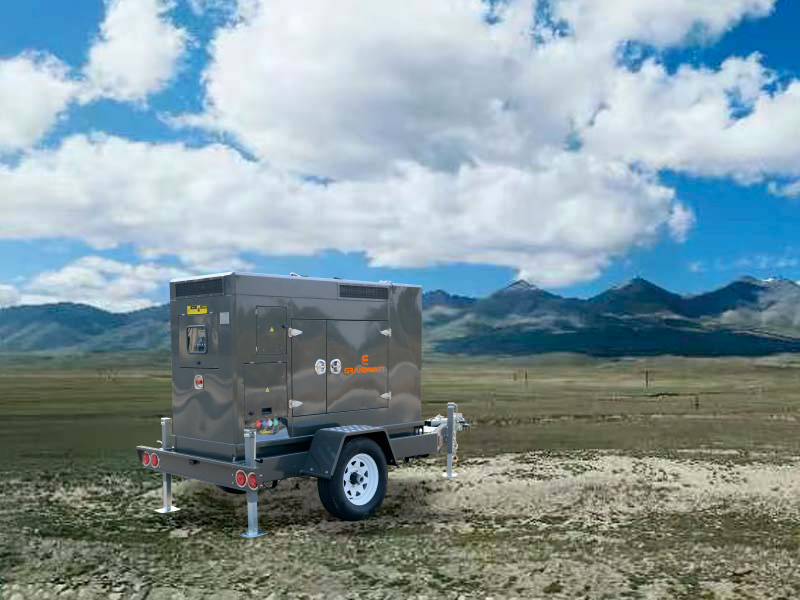

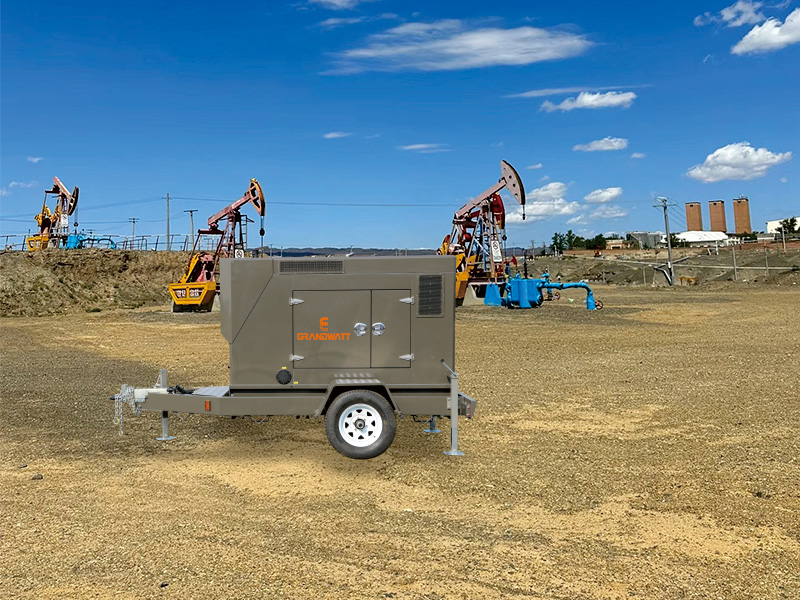

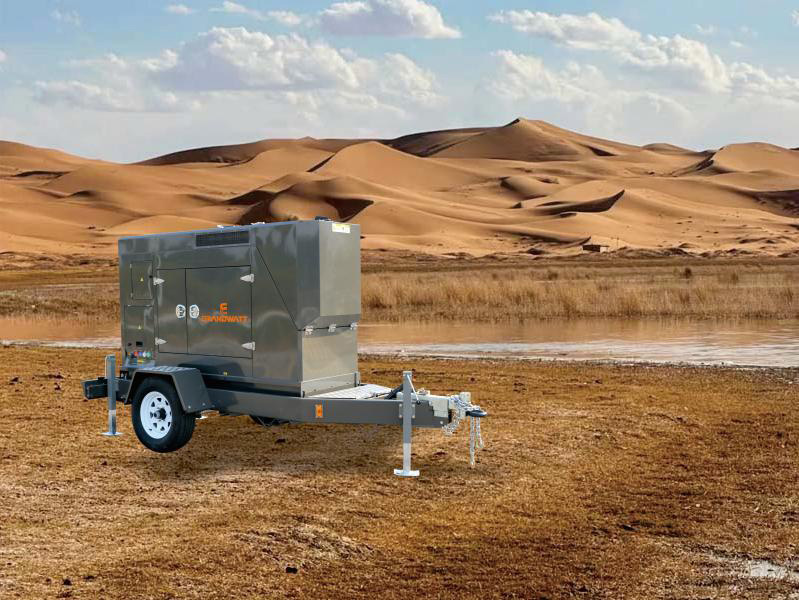

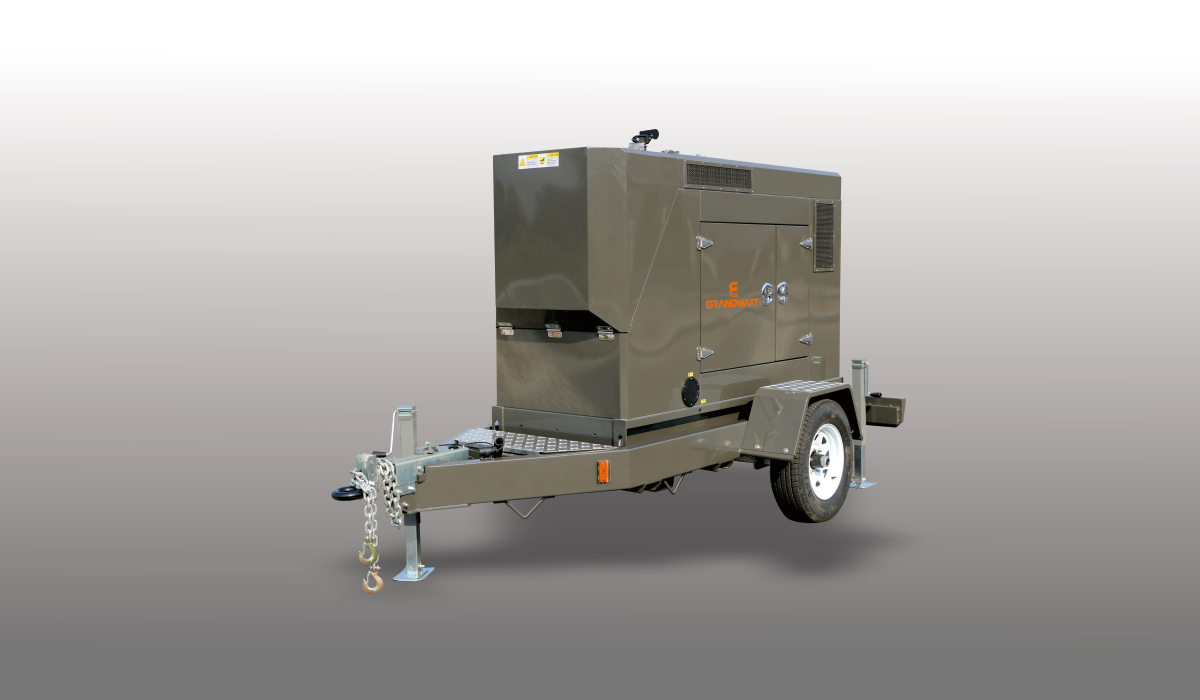

MONTANA Series Generators M2

MONTANA Series Generators M2 includes model GMI-45/T and GMK-50/T, prime power 45KVA and 50 KVA at voltage 480V/277V 3 Phases. They are powered by ISUZU and KOHLER engine, which comply EPA Tier4 final emission. The output voltage can be switched to 480/277V 3-phase and 208/120V 3-phase and 240V/120V single phase by Voltage Selector Switch. You can supply power to lights, electric tools, and other similar devices at the same time, you also can supply power to drive pumps, compressors, and similar equipment, select different voltage according to different applications.

product details

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

HIGHLIGHT FEATURES

MAIN DATASHEET

Generator Model		GMI-45/T	GMK-50/T
Power (KW/KVA)
480V/277V 3P 60Hz PF=0.8	Prime	36/45	40/50
480V/277V 3P 60Hz PF=0.8	Standby	40/50	44/55
208V/120V 3P 60Hz PF=0.8	Prime	36/45	40/50
208V/120V 3P 60Hz PF=0.8	Standby	40/50	44/55
240V/120V 1P 60Hz PF=1	Prime	24/24	29/29
240V/120V 1P 60Hz PF=1	Standby	26/26	31/31
Engine Tier 4 Final
Model		4LE2X	KDI3404TCR
Brand		ISUZU	KOHLER
Alternator
Model		ECP32 1M4C	ECP32 2M4C
Brand		Mecc Alte	Mecc Alte
Fuel Consumption US gallons/h (L/h)
25% of load		0.9 (3.8 )	0.95(3.60)
50% of load		1.5 (5.9 )	1.89(7.15)
75% of load		2.1 (8.2)	2.84(10.75)
100% of load		2.8 (10.7)	3.79(14.35)
Sound Level
23 feet(7m)		61.8 dB(A)	64.4 dB(A)
Dimensions and Weight
Silent type	LWH/ inch	1013876	1013876
Silent type	Dry Weight/ Ibs(kg)	3,314(1,503)	3,726(1,690)
Trailer type	LWH/ inch	158¾72½94½	158¾72½94½
Trailer type	Dry Weight/ Ibs(kg)	4,206(1,908)	4,618(2,095)
