NEVADA Series Diesel Light Towers HNV9-R2000
Diesel Light Towers

GRANDWATT

Hydraulic Light Tower For USA Market (1).png

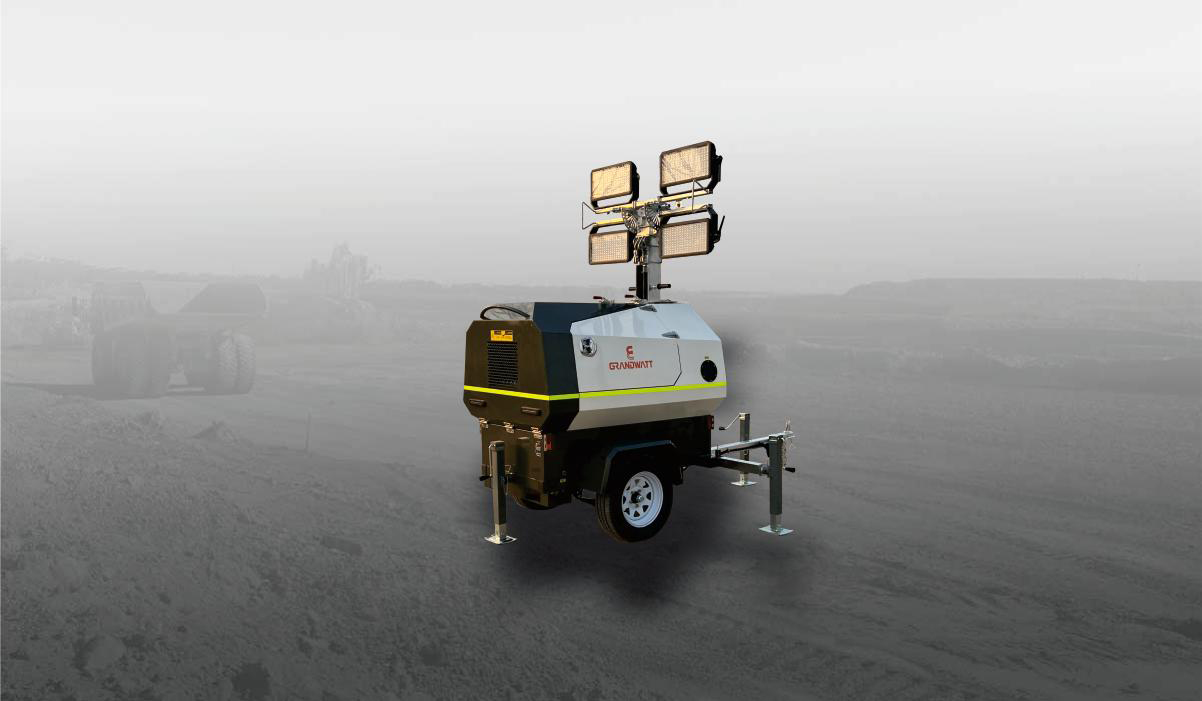

Hydraulic Light Tower For USA Market (2).png

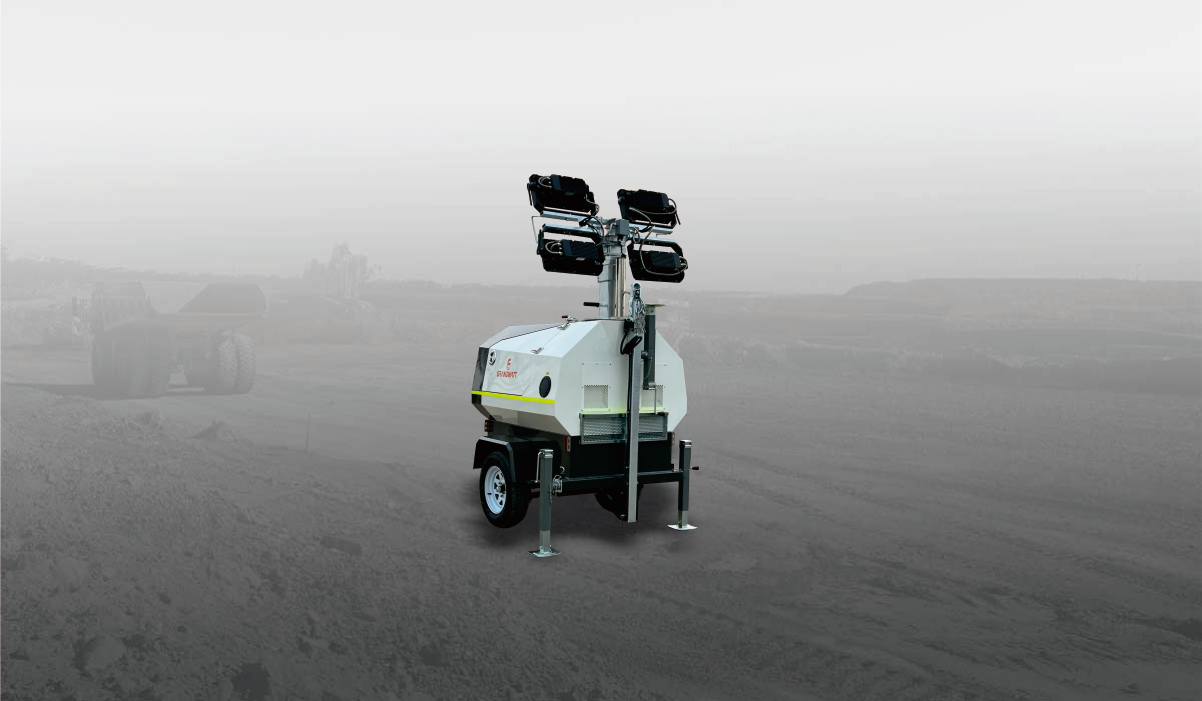

Hydraulic Light Tower For USA Market (3).png

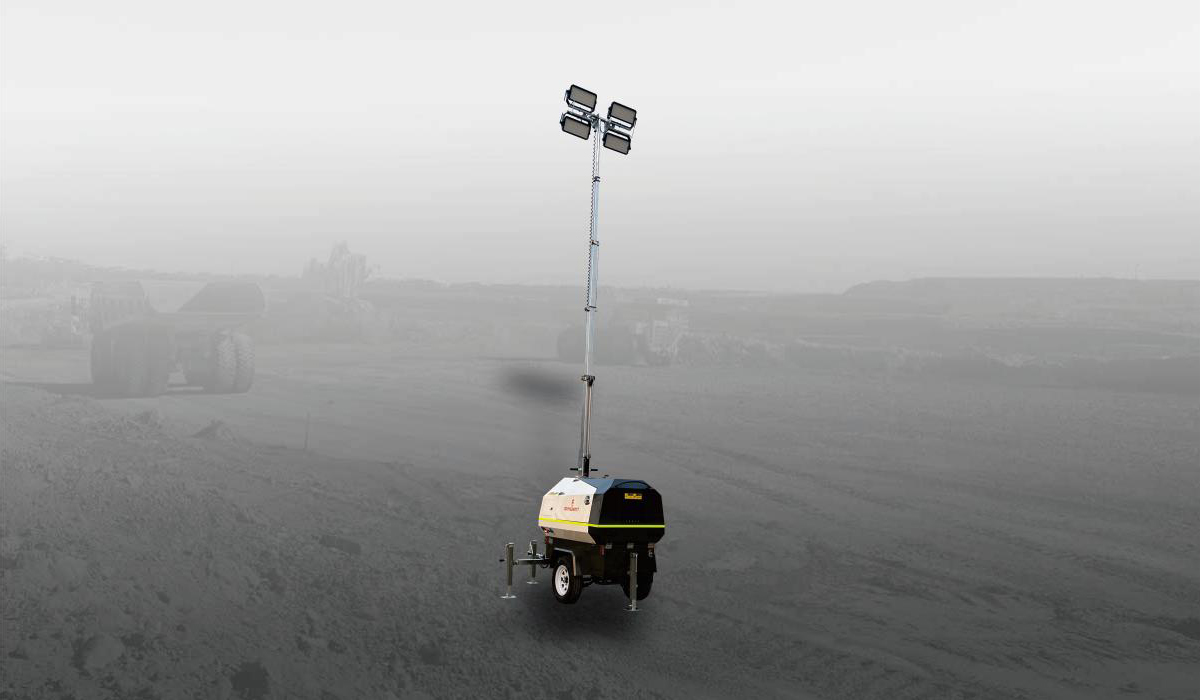

Hydraulic Light Tower For USA Market (4).png

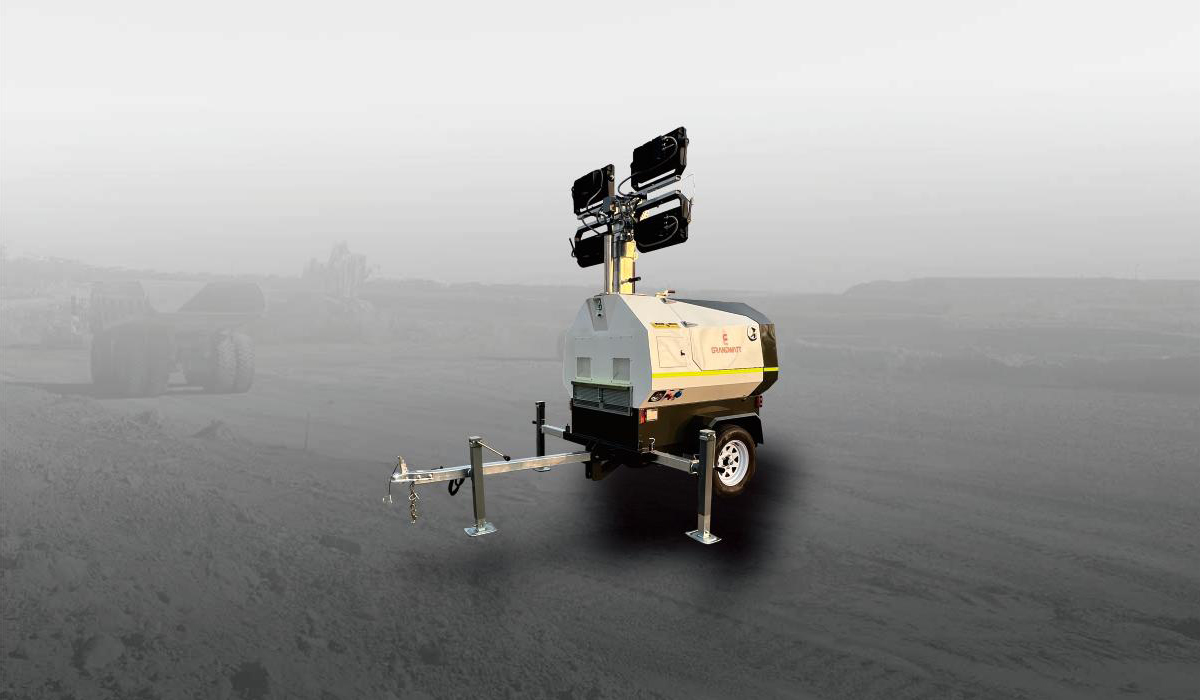

Hydraulic Light Tower For USA Market (5).png
010203040506

NEVADA Series Diesel Light Towers HNV9-R2000

GRANDWATT NEVADA series light towers HNV9-R2000 features innovative designed wide angle maintenance door and trunk for conveniently access, 27'3'' max. height with telescopic hydraulic mast hot dipped, 359° manual rotation with multi-angle locking, ±90° manual lighting frame tilt with lockable pin, foldable stepping board for adjusting lights and horizontal angle. It is powered by Japan Kubota engine and Italy Mecc Alte alternator. It is applied in road construction, mining, oil field, events and military. Compact design makes loading and unloading quantity to be more pretty.

Contact us Download
product details

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

HIGHLIGHT FEATURES

HNV9-hightlight-feature

MAIN DATASHEET

NEVADA Series Light Tower
Standard Model HNV9-R2000
Lighting LED 4*500W
Luminous flux  314,000 Lumens
Dimensions & Weight Max. Length*Width*Height 11' 6" (3,520 mm)*10'10''(3,310 mm)*27'3''(8.3 m)
Lengh*Width*Height 6'4''(1,940mm) * 5' 7"(1,700 mm) * 8'¾"(2,460mm)
Gross weight  2,270 lbs (1,030kg)
Vertical Tower Structure 6-section tubular steel design
Actuation Hydraulic cylinder
Rotation 359° Manual with Lockable Pin
Lighting frame tilt ±90° Manual with Lockable Pin
Max Wind Speed 110km/h
Diesel Engine & Fuel Tank Model Kubota Z482-E4B
Speed 1,800 rpm
Tank capacity 71.5 U.S. gal/ (270 liters)
Consumption 0.264 U.S. gal/hr (1.00 L/h)
Mix. running time 270 h
Alternator Model Mecc Alte LT3N-130/4
Insulation Class H
Voltage 240/120 VAC
Trailer Suspension & brake  Leafspring axle without brake
Towing bar 90° Foldable 3 inch robust tube
Stabilizers 4*7,000 lbs jacks for front, rear & 2 sides with retractable tongue
Wheel 14" rim with DOT tire
Towing Coupler 2 inch ball hitch
Trailer lights US standard tail lights & 4*side marker clearance lights
Max towing speed 62 mph (100 km/h)
General Data Control system Deepsea DSEL401
Noise level dB(A) at 7m 67.5 dB(A)
Auxiliary outlets 1 pcs 16A/120V Receptacle
Transport Loading or Unloading 2 sides and rear forklift pockets
Number in 40' high cube 7
Number on 48' flatbed 8
Number on 53' flatbed 9

OPTIONS AVAILABLE

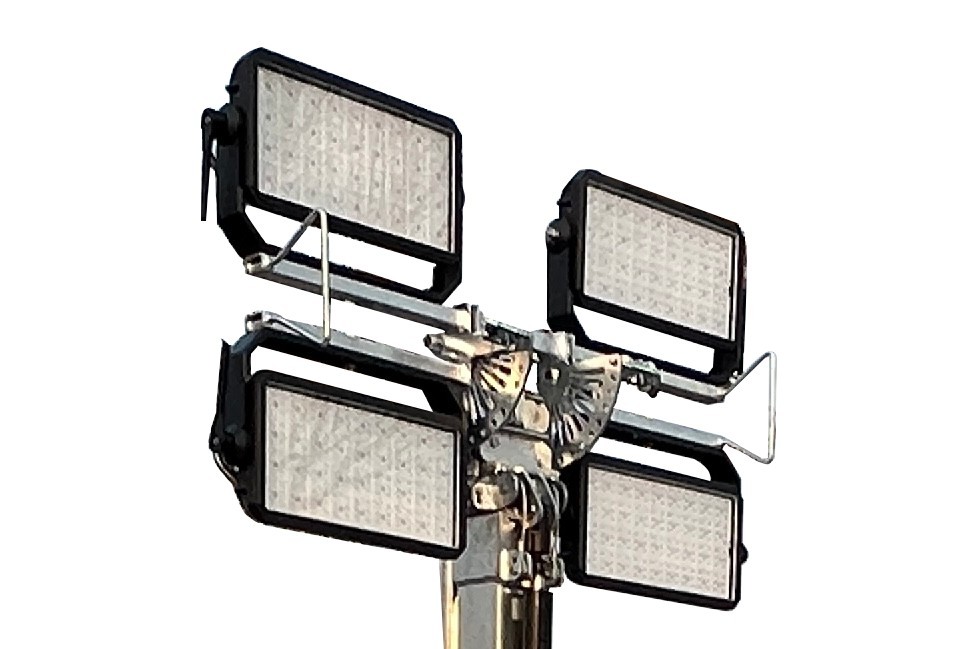

4*350W-600W LED
01

 4*350W-600W LED

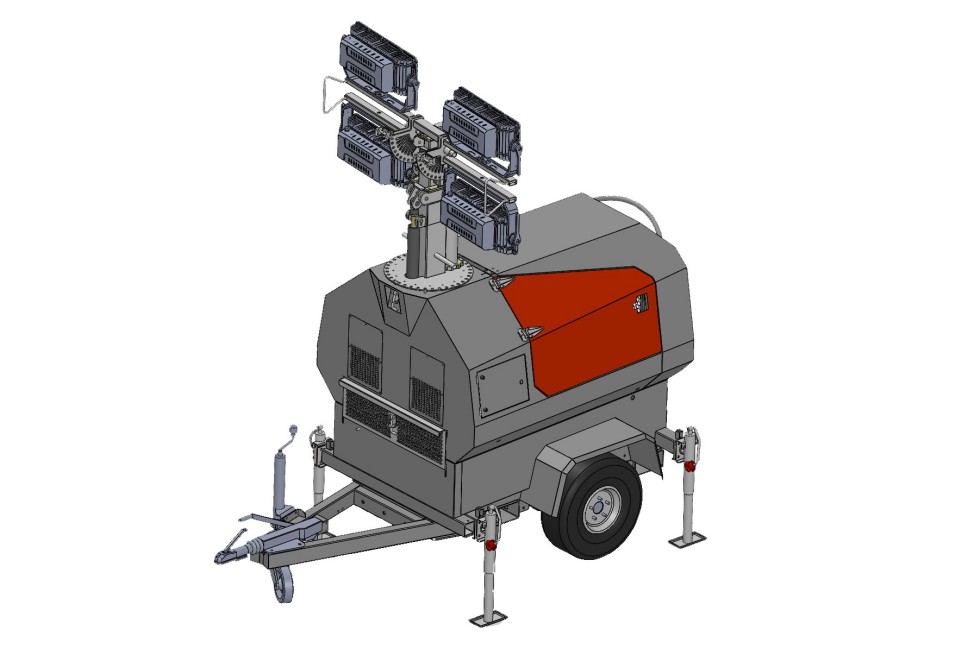

Australian style
01

Australian style

Application

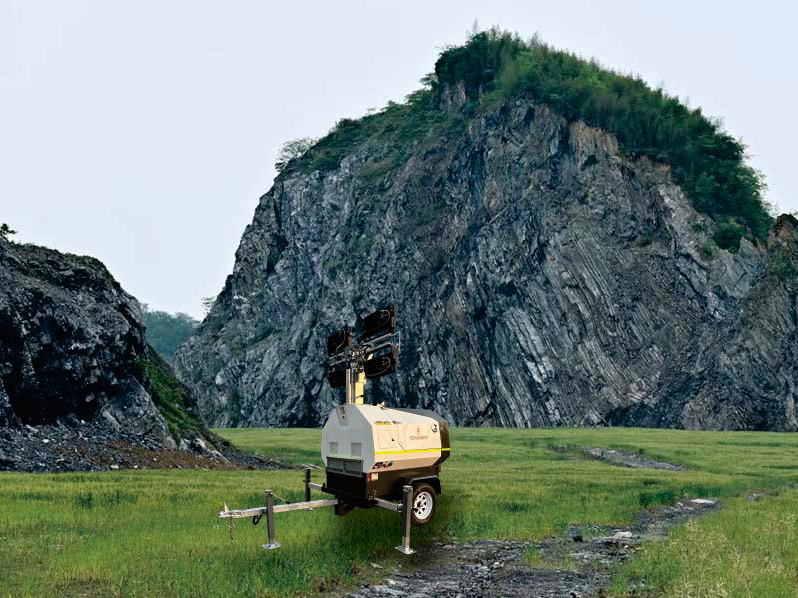

HNV9appli-(1)

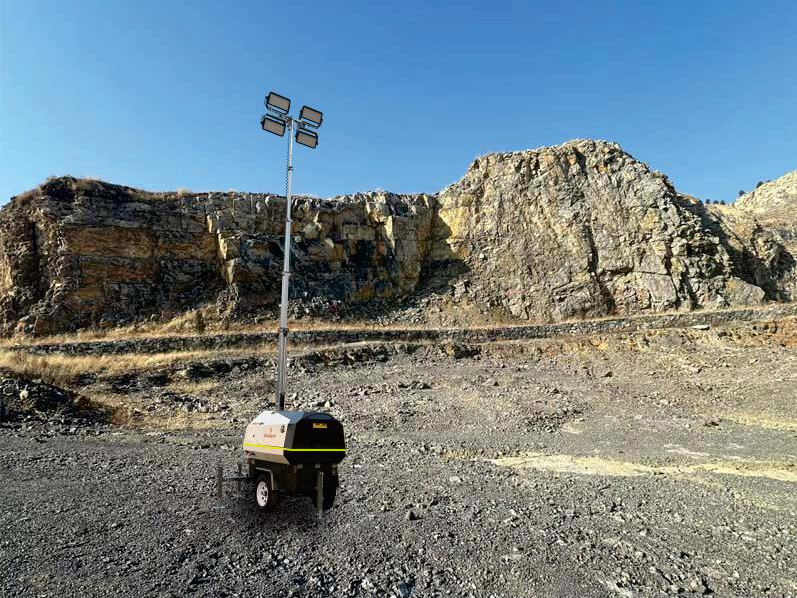

HNV9appli-(2)

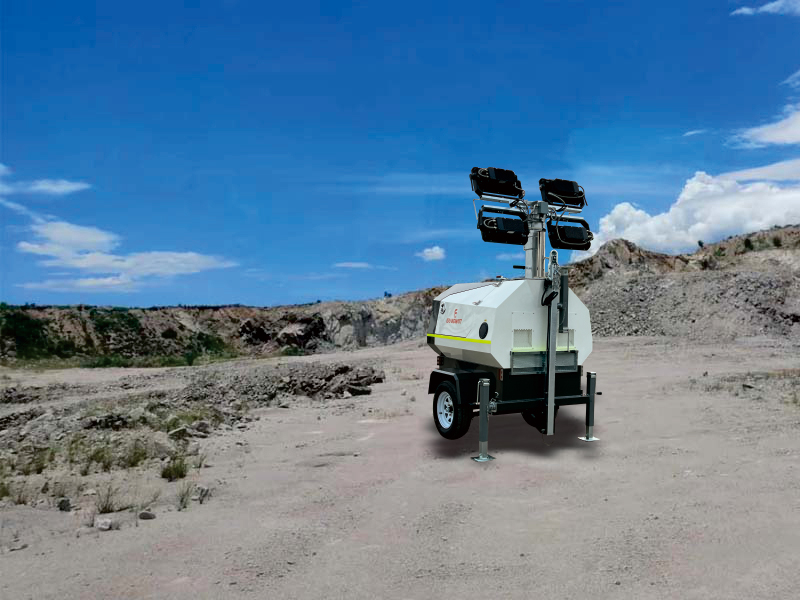

HNV9appli-(3)

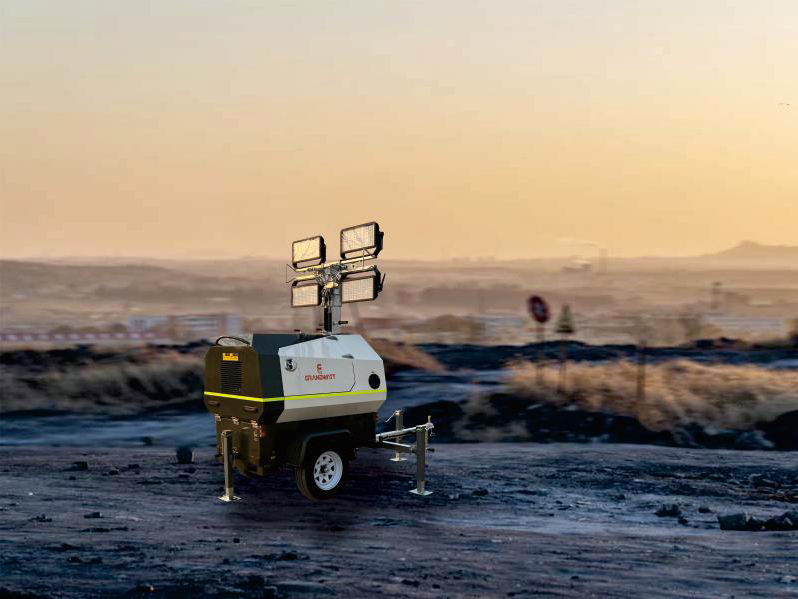

HNV9appli-(4)

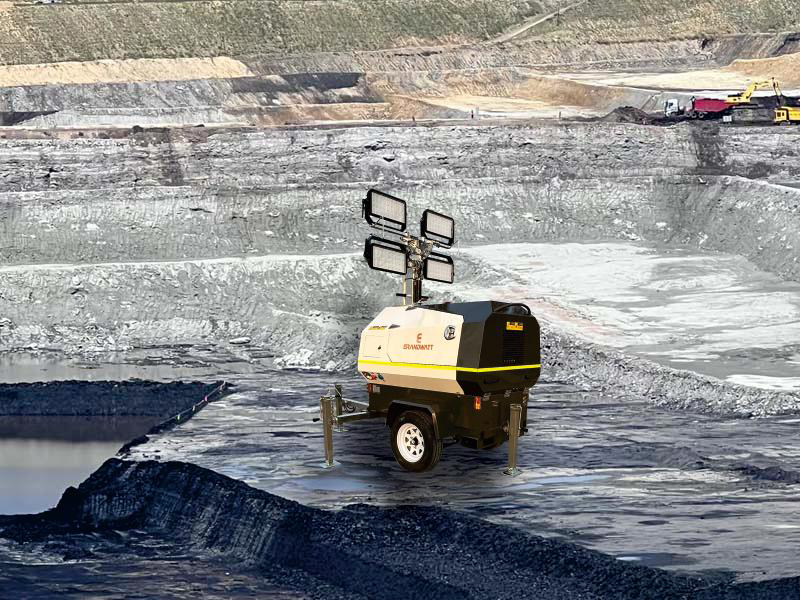

HNV9appli-(5)
0102
