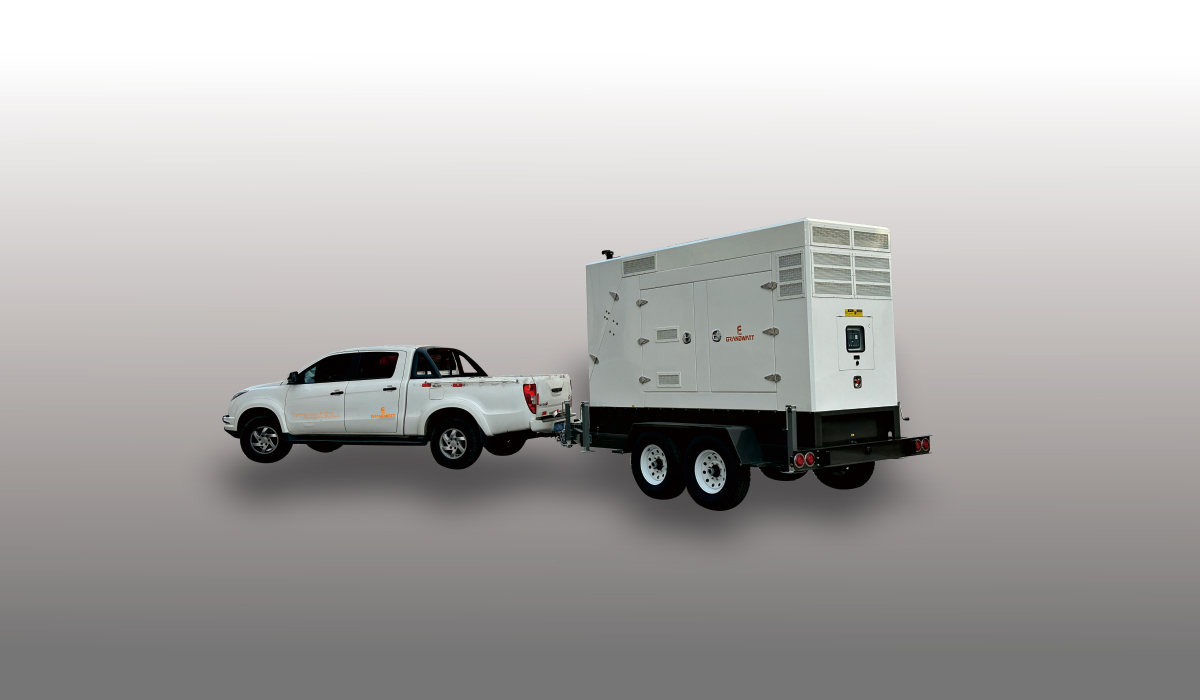

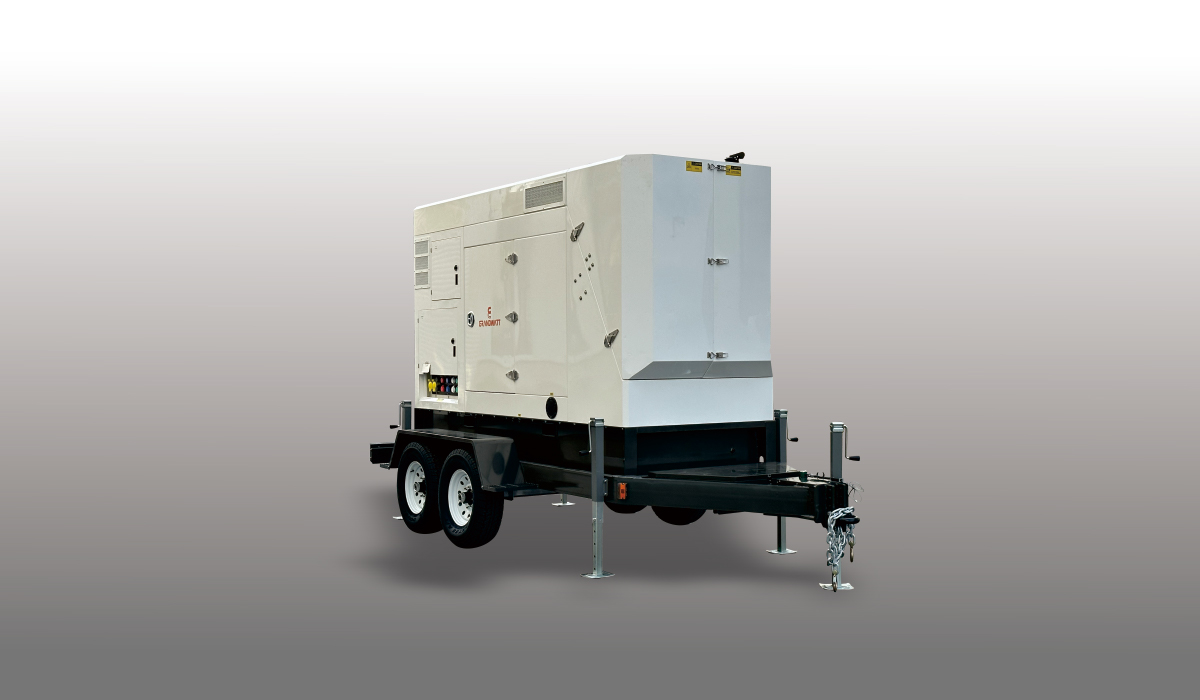

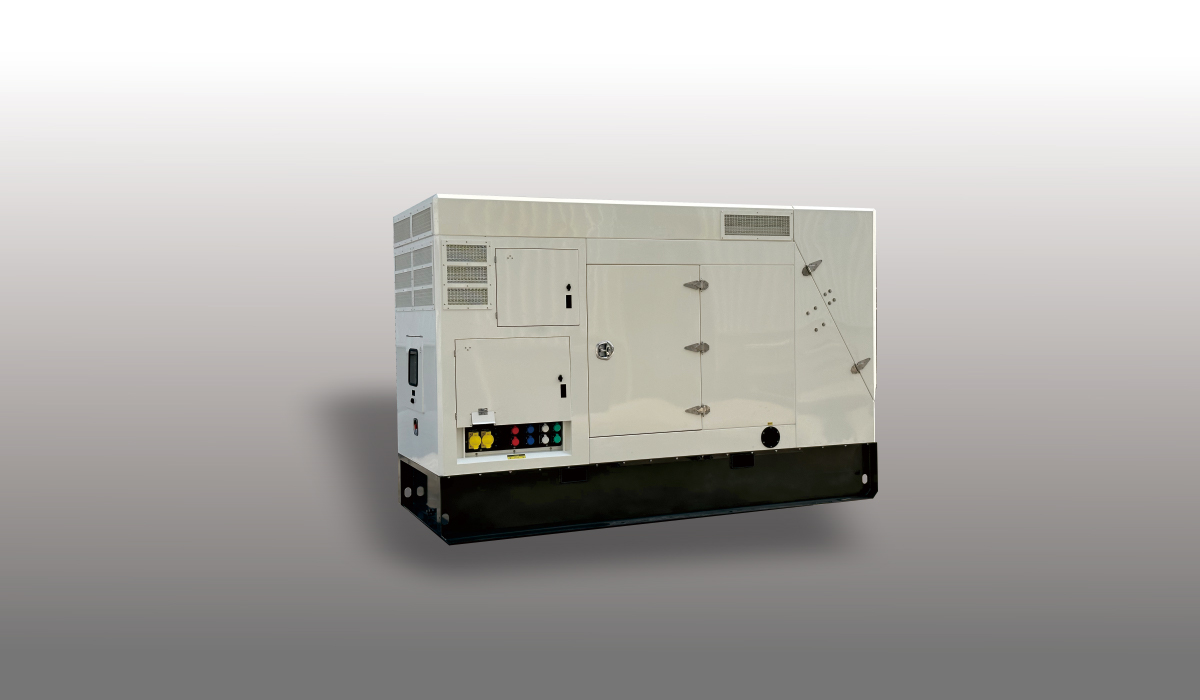

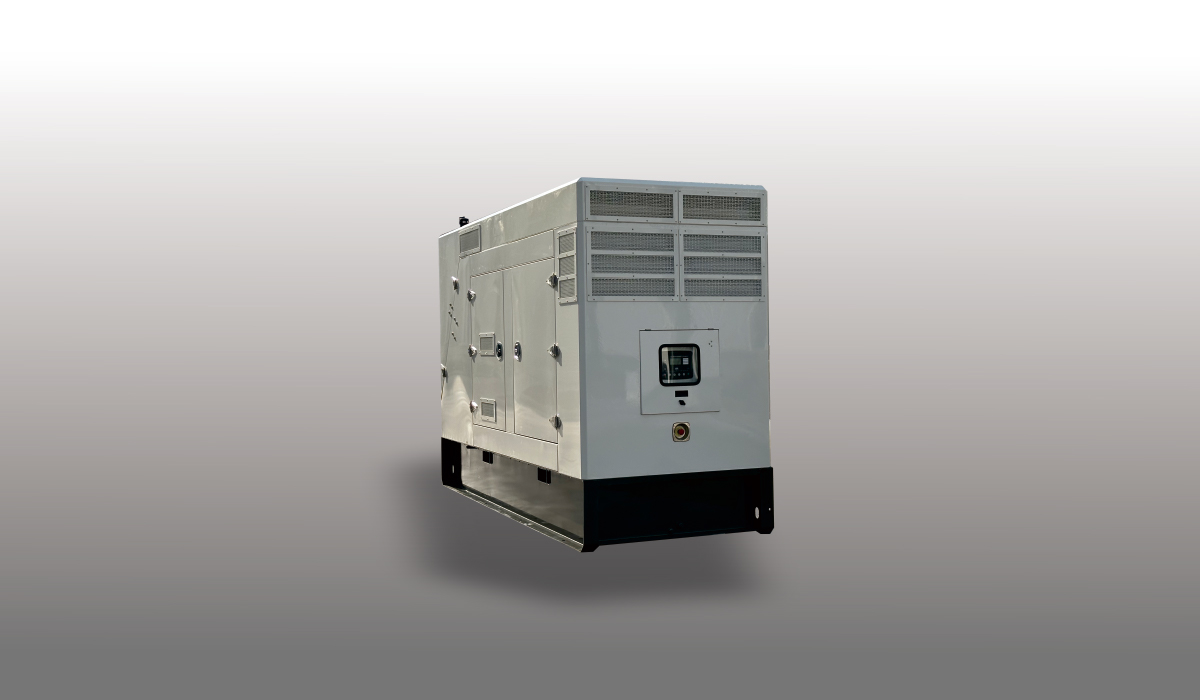

MONTANA Series Generators M5

MONTANA Series Generators M5 are Tier 4 final EPA compliant and built on a proven platform of emissions control technologies. Our silent portable generators are engineered to operate in the most challenging environments and can meet any application. With standard models ranging from 169 kVA to 225 kVA, and the ability to customize any units to fit any need, innovative sound reduction technology makes machine quiet enough to provide power for all-important special occasions. Because Grandwatt generators are dependable and easy to operate, they are the correct choice for all of your power needs.

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

HIGHLIGHT FEATURES

HIGHLIGHT FEATURES

MAIN DATASHEET

Generator Model GMP-169/T GMP-225/T
Power (KW/KVA)
480V/277V 3P 60Hz PF=0.8 Prime 135/169 180/225
Standby 150/188 200/250
208V/120V 3P 60Hz PF=0.8 Prime 112/140 176/220
Standby 123/154 194/242
240V/120V 1P 60Hz  PF=1 Prime 67/67 72/72
Standby 74/74 79/79
Engine Tier 4 Final
Model 1206J-E70TTAG3 1206J-E70TTAG4
Brand PERKINS PERKINS
Alternator
Model ECP34 1L4C ECO38 2S4C
Brand Mecc Alte Mecc Alte
Fuel Consumption US gallons/h (L/h)
25% of load 3.0(11.4) 3.9 (14.7)
50% of load 5.9(22.3) 7.8 (29.5)
75% of load 9.1(34.4) 11.7 (44.1)
100% of load 12.0(59.2) 15.6 (59.2)
Sound Level
23 feet(7m) 67.2 dB(A) 68.5 dB(A)
Dimensions and Weight
Silent type L*W*H/ inch 146¾*55½*97½ 146¾*55½*97½
Dry Weight/ Ibs(kg)  8,807(3,995)  9,259(4,200)
Trailer type L*W*H/ inch 204¾*90½ *120½ 204¾*90½ *120½
Dry Weight/ Ibs(kg) 10,825(4,910) 11,277(5,115)

RELATED PRODUCTS

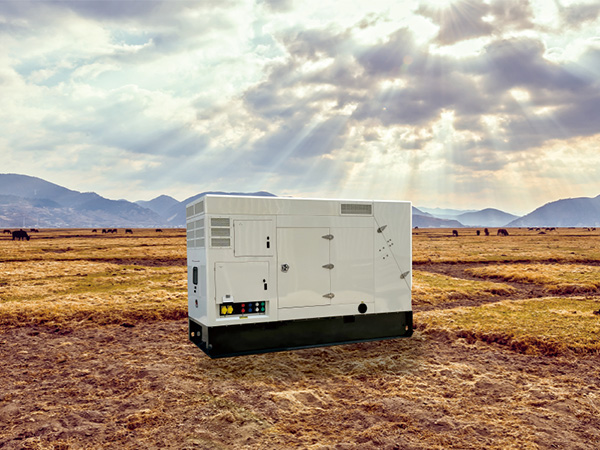

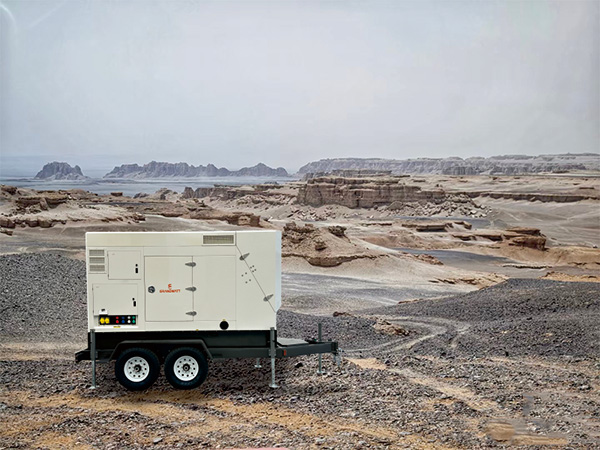

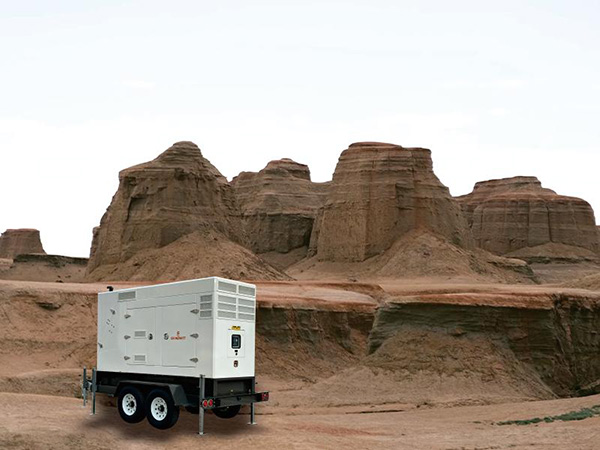

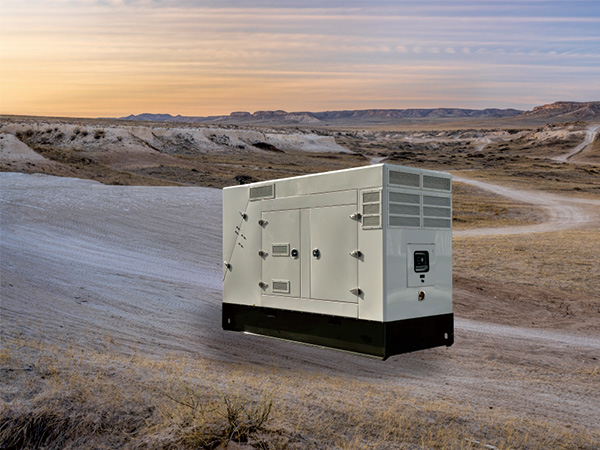

Application
