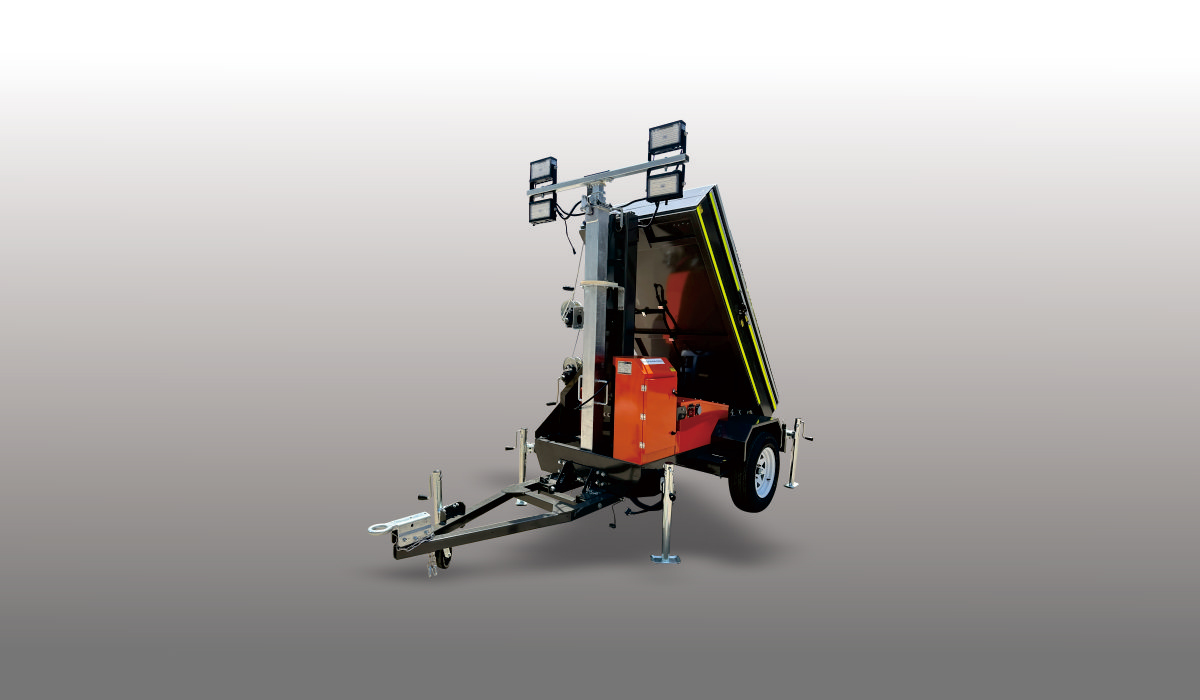

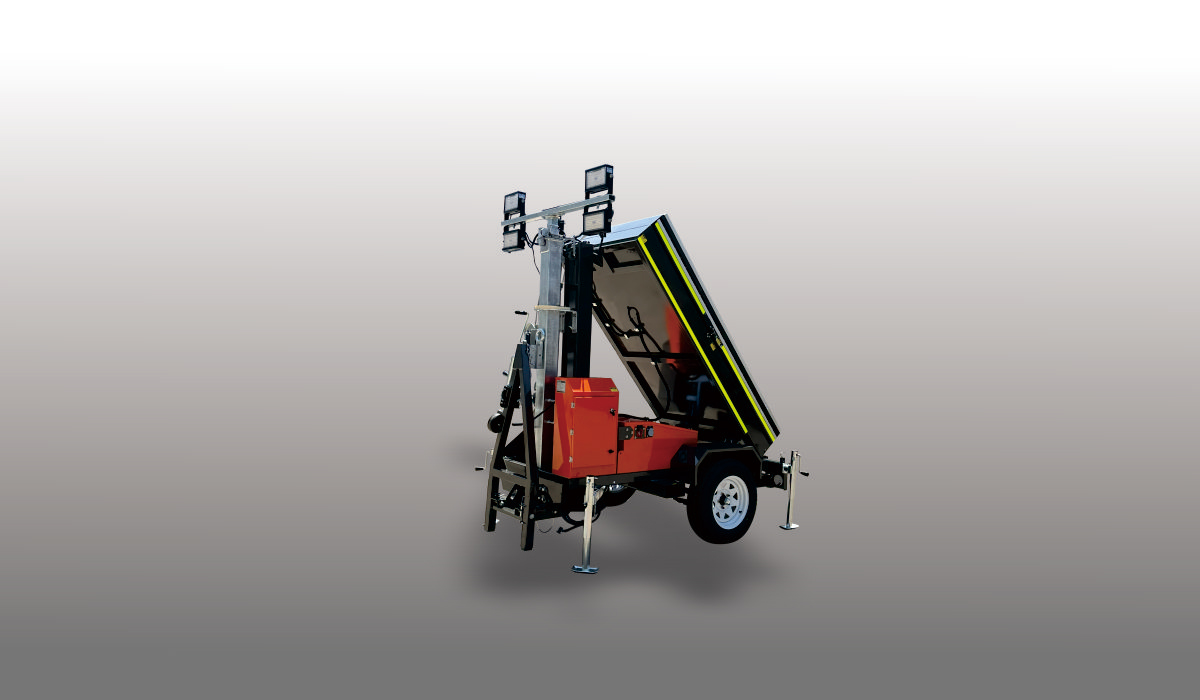

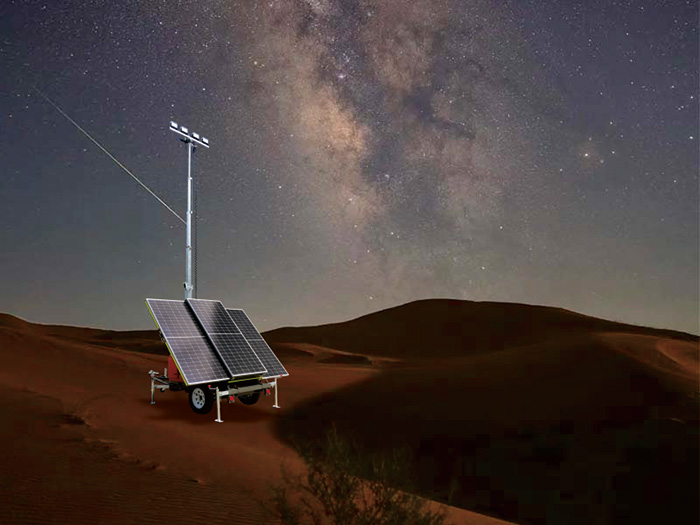

KANSAS Series Solar Light Towers SX9-R400/1620
KANSAS Series Solar Light Towers SX9-R400/1620 is the economical solar light tower with small body, which has 4*100W LED, max. lighting hours with batteries fully charged reach to 14 hours. It has very high cost performance, it allows site lighting to increase sustainability with zero CO₂ emissions and zero noise, zero operating costs (diesel fuel, maintenance, labor), it is 100% renewable energy, smaller and exquisite stronger structure can load more power solar panels and batteries, patented lifting mechanism can adjust tilt angle of solar panel to align with the best sunlight direct angle to achieve maximum solar yield. Equip with latest photovoltaic and energy storage controller system, very intelligent, it can be monitored by cell phone APP to set auto timer switches auto tum on-off the lights.
Main Feature
6*400 W LED, 396,000 Lumens

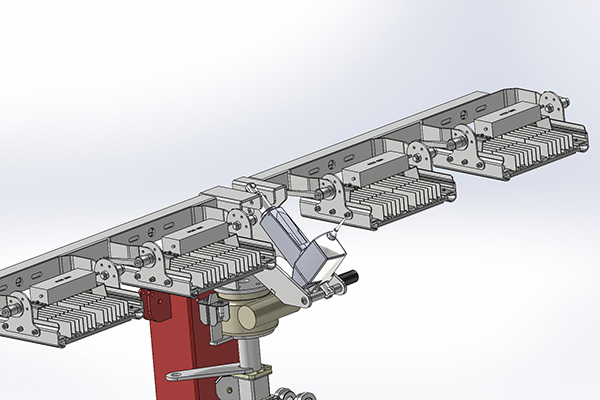

Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.
6*400W LED or 6*600W LED are optional.
| Solar Light Tower | |||||
| Standard Model | SX9-R400/1620-4 | SX9-P400/1620-1 | SX9-R400/1620-6 | SX9-P400/1620-2 | |
| Solar panel & battery system | System voltage | 24 VDC | |||
| Solar panel system | 1,620 W- 3*540 W Mono | ||||
| Retractable panel system | Manual sliding system with guide rail | ||||
| Solar system sunshine tilt | Manually 10°-49°adjustable with 2,500lb winch | ||||

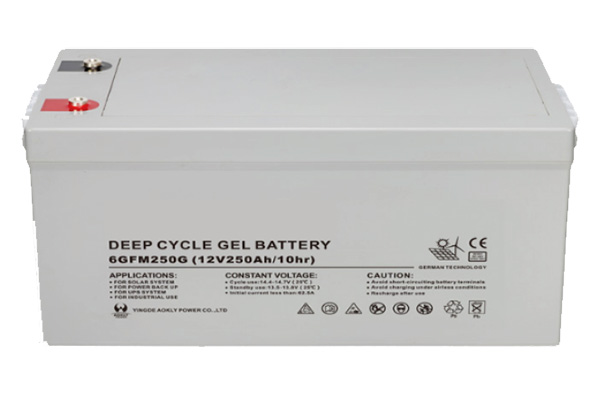

| Battery | 4*200 Ah Gel battery | 1*200Ah Lithium battery | 6*200 Ah Gel battery | 2*150Ah Lithium battery | |
| Controller (Day time) | 1*80 A MPPT controller | ||||

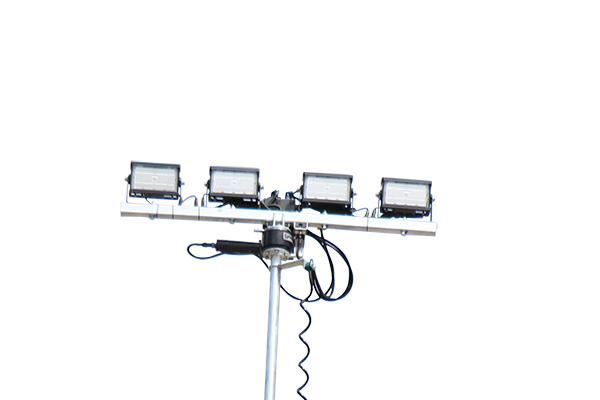

| Mast & Luminaire | Luminaire | 400 W-4*100 W LED (DC 24V with dimming) | |||
| Luminous flux | 60,000 Lumen | ||||
| Auto LED turn on-off | Controlled by timer of MPPT controller | ||||
| Manual LED turn on-off | Circuit breaker | ||||

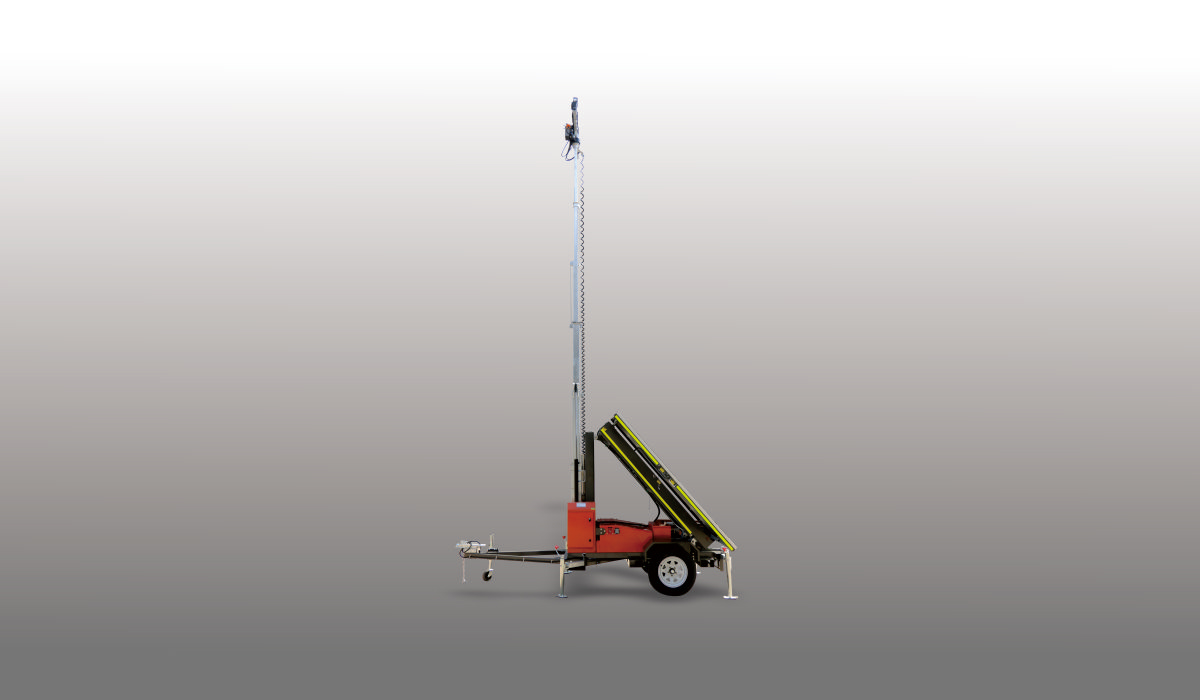

| Mast style | 5 sections; 2,500 lb manual winch | ||||
| Mast rotation | Manual 202.5° with self-lock | ||||
| Light tilt | Manual | ||||
| Trailer | Suspension & brake | Single leaf-spring axle without brake | |||
| Tow bar | "A" style frame with a directional wheel | ||||
| Forklift slots | 2 sides + rear | ||||
| Stabilizing leg | 4 retractable jacks | ||||
| Wheel | 16" rim with regular tire | ||||
| Tow Coupler | Switchable 2" ball coupler with 2½" pintle ring | ||||
| Taillights | Night, turning & stopping taillights | ||||
| Max towing speed | 100 km/h (62 mph) | ||||
| General Data | Max. lighting hours with batteries fully charged | 10 hours (Theoretical data for reference only) | 14 hours (Theoretical data for reference only) | ||
| Max. wind resistance (All solar panels retracked) | 20 m/s (45 mph) | ||||
| Max. quantity for loading in 40' high cube | 7 | ||||
| Optional parts or accessories | DC power input | DC 24V receptacle | |||
| Battery Charger with cable & plug | 1 pcs | ||||
| R-Regular configuration—Gel batteries; P-Premium configuration—Iron-lithium batteries | |||||
| Notes: | |||||
| 1. How full the batteries be charged by solar are completely depend on the weather, season and location. | |||||
| 2. For keeping the lighting hours you need, please adjust the lighting time of controller or LED load by the dimming knob as the weather & season. | |||||
