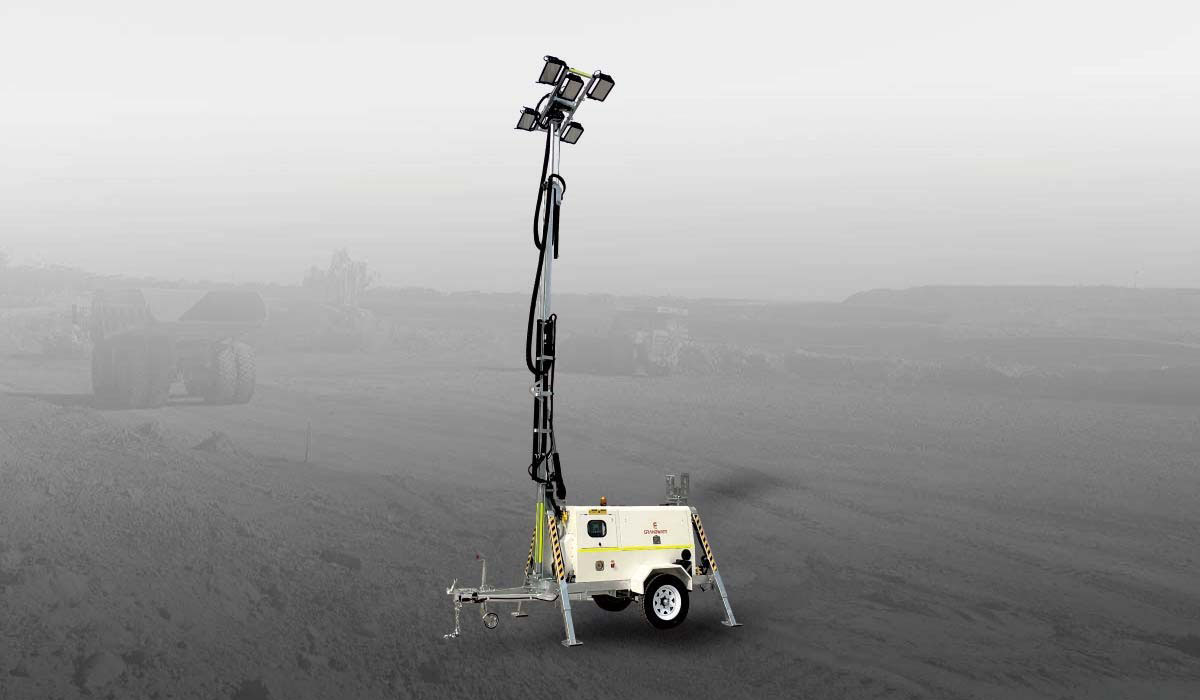

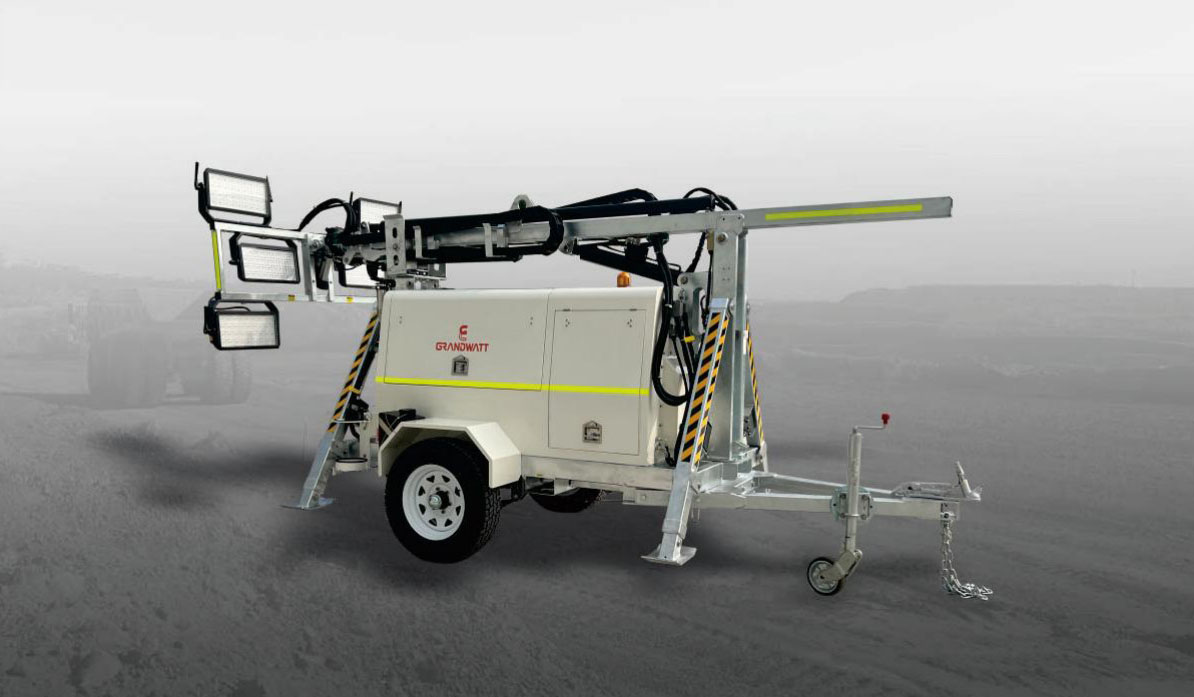

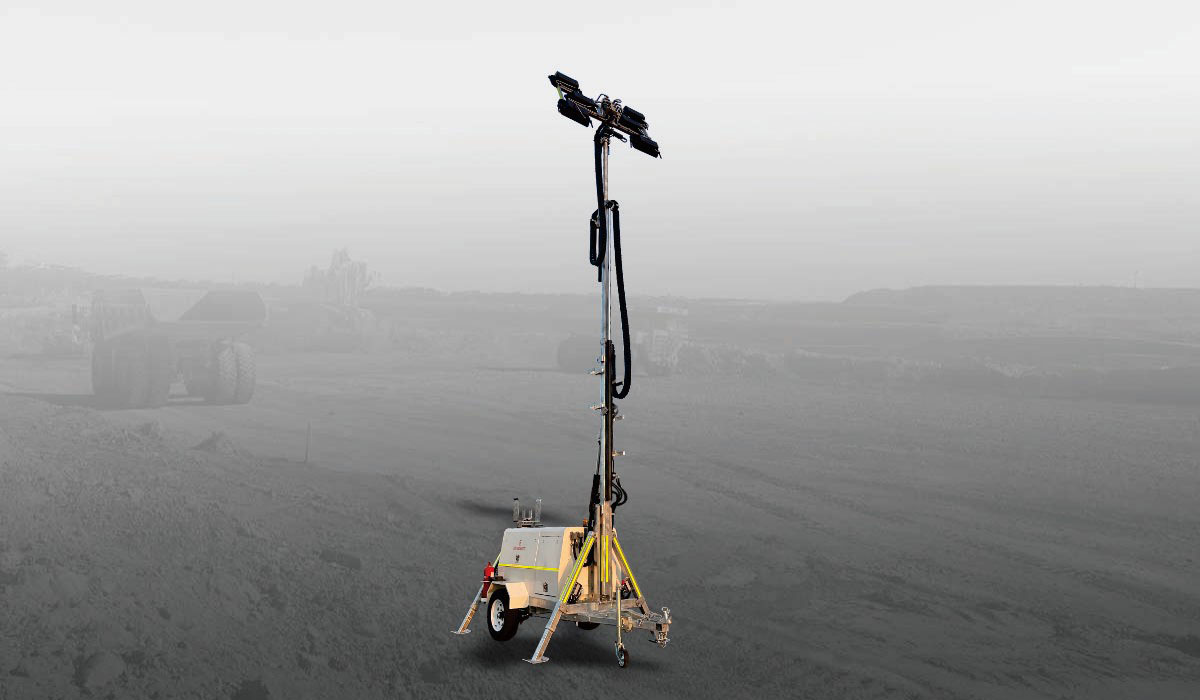

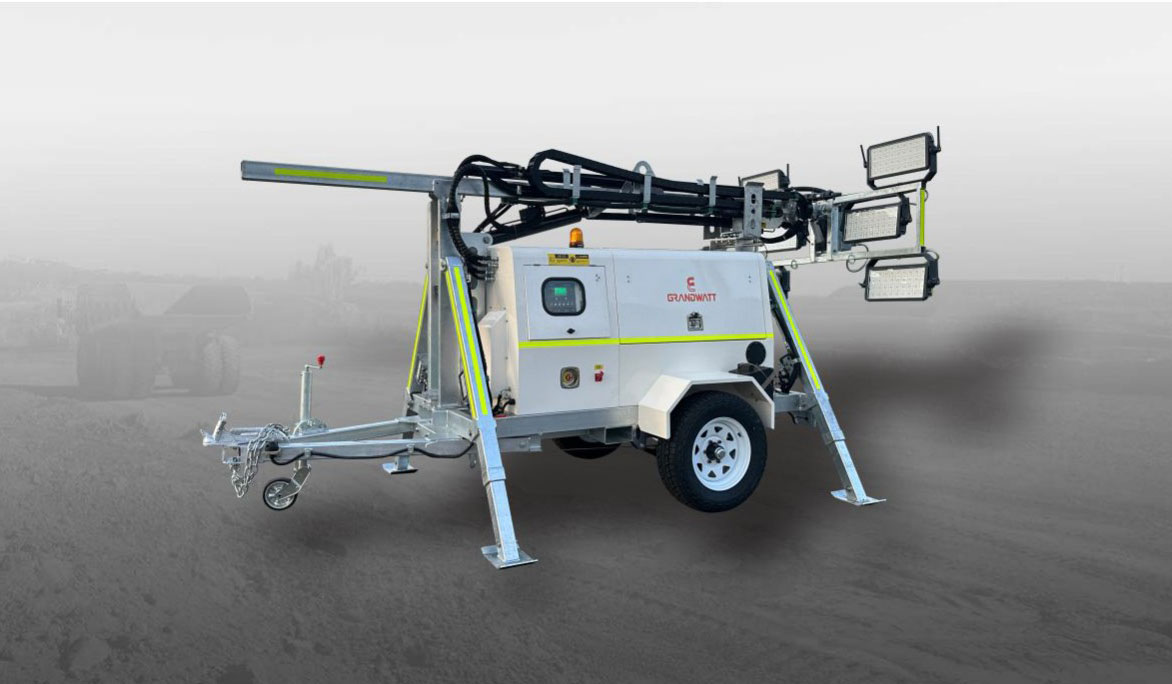

TENNESSEE Series Diesel Light Towers HT10-M2400

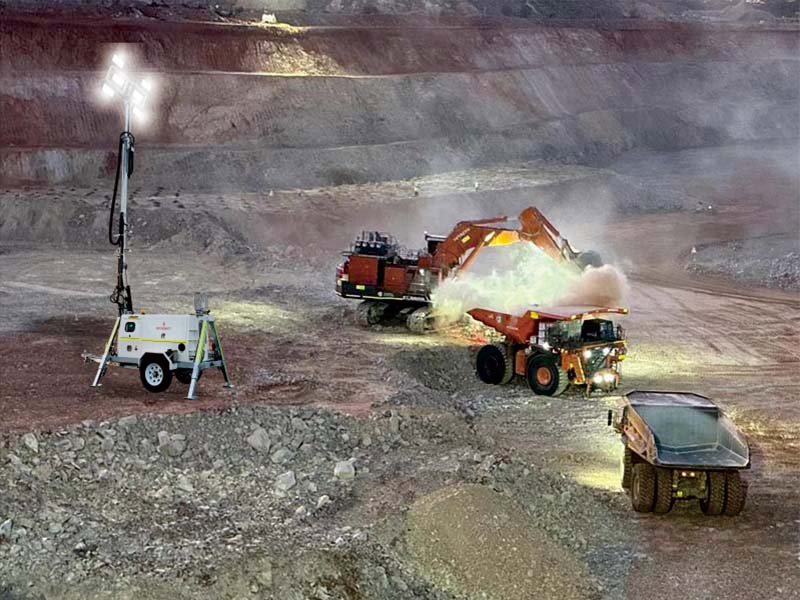

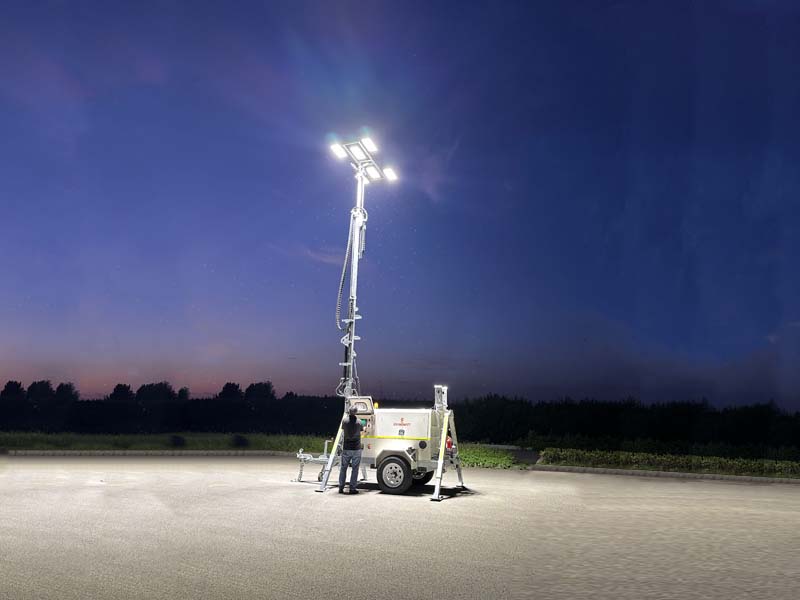

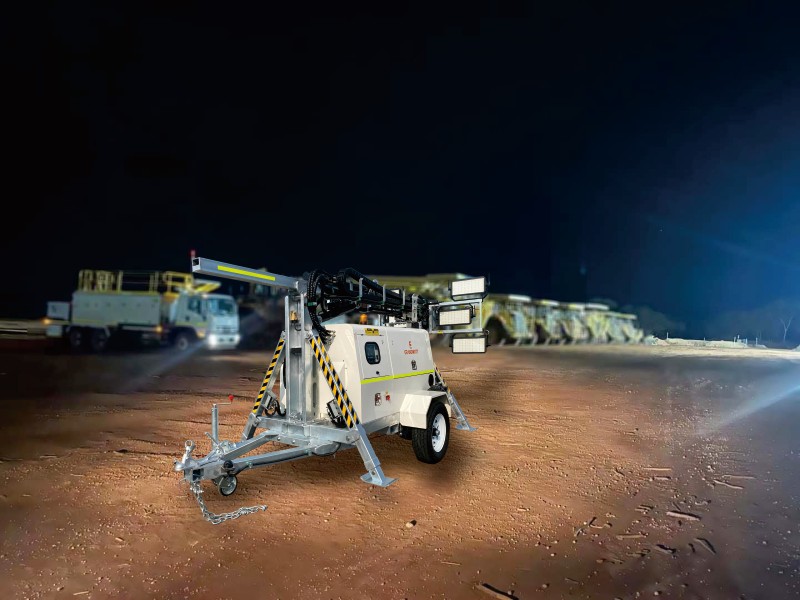

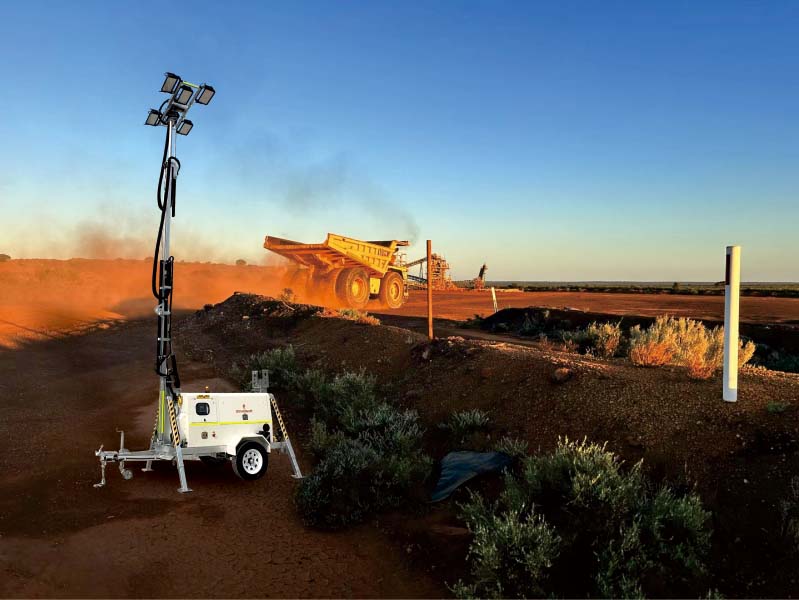

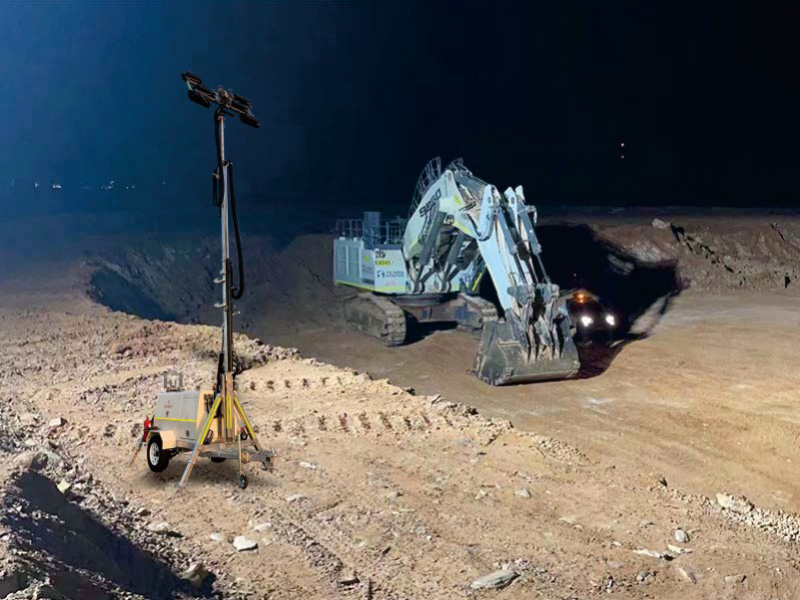

TENNESSEE series diesel light towers HT10-M2400 is designed and applied for mining. Hydraulic mast, electric rotation and tilt, hydraulic legs are friendly and convenient for a person operation. It is powered by Japan Yanmar engine and DC alternator, with lower noise, lower fuel consumption, lower failure rate and global warranty. 6*400W LED or 6*600W LED light coverage ≥40,000 m2. Controller has automatic timer to turn on and off light. 348L big fuel tank running 262 hours without refueling to save more maintenance time.
Main Feature

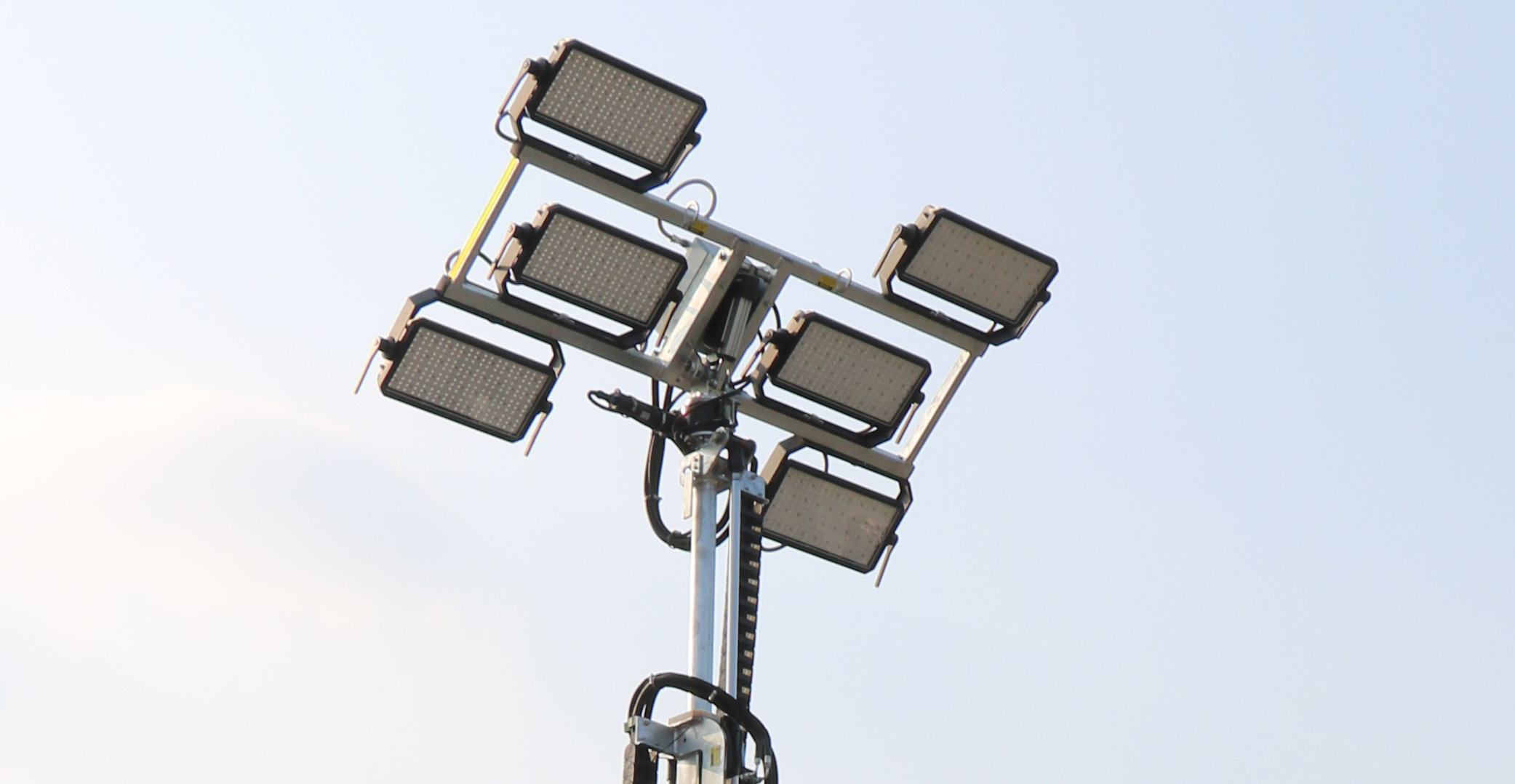

6*400 W LED, 396,000 Lumens
Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.
6*400W LED or 6*600W LED are optional.
| HT10 Series Light Tower | |
| Standard Model | HT10-M2400 |
| Mast System | |
| Max. mast height | 9,200mm ( 30' 2") |
| Mast raise &telescope | Hydraulic |
| Light bar rotation | Electric 340 ° |
| Light bar tilt | Electric 90 ° |
| Luminaire | |
| Luminaire | 6*400 W LED (48 VDC) |
| Overall lumens | 396,000 Lumens |
| Towing Dimensions | |
| Overall length*width*height | 4,810mm ( 15'9")*2,070mm ( 6' 9½" )*2,410mm ( 8') |
| Weight | 2,000 kg (4,409 lbs) |
| Engine & Alternator | |
| Engine model | YANMAR 3TNV76 |
| Engine characters | 3 cylinders, 4 cycles & water cooling |
| Alternator | DC 48V |
| Chassis | |
| Brake | Electrical |
| Towing frame | "A" style with heavy duty direction wheel & safe chains |
| Stabilizing leg | "A" style hydraulic legs |
| Towing coupler | 75mm pintle ring or 50mm ball coupler |
| Max. towing speed | 100km/h ( 62 mph) |
| General Data | |
| Fuel tank | 348 liters (92 US gal) bunded metal tank |
| Fuel consumption | 1.33 L/hrs |
| Run time before refuel | 262 hours |
| Max. wind resistance | 20m/s (45 mph) |
| Acoustic pressure | 69 dB(A) at 7 meters away |
| Max. units load in 40' HC | 3 |
