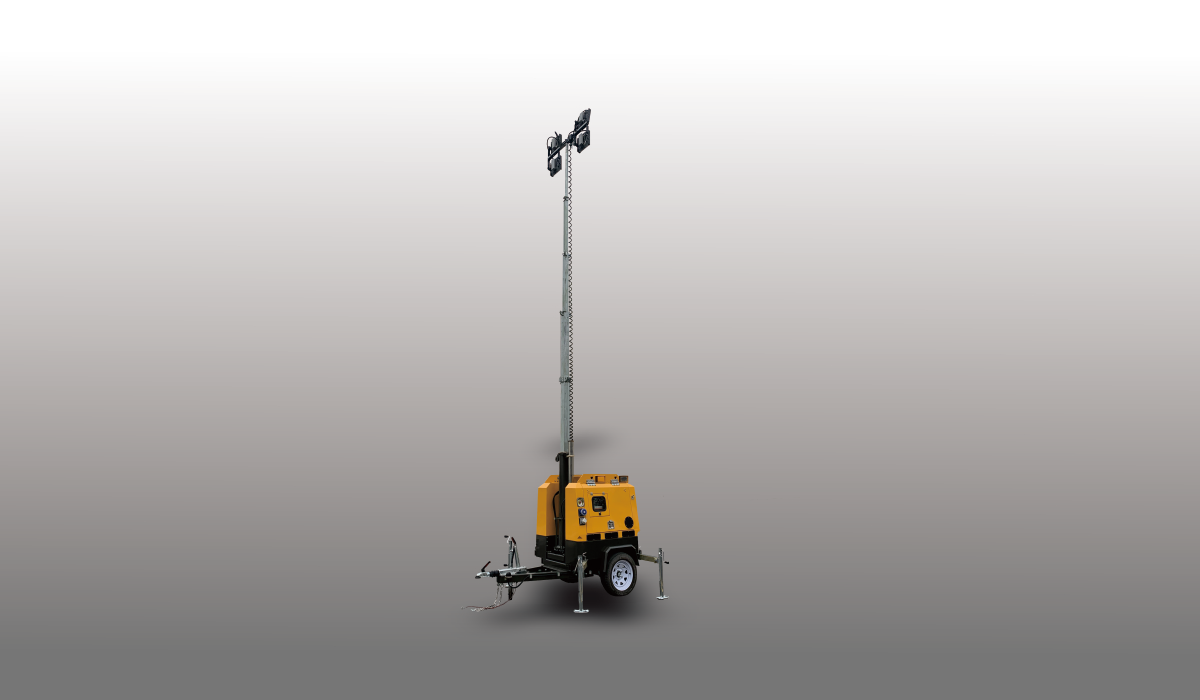

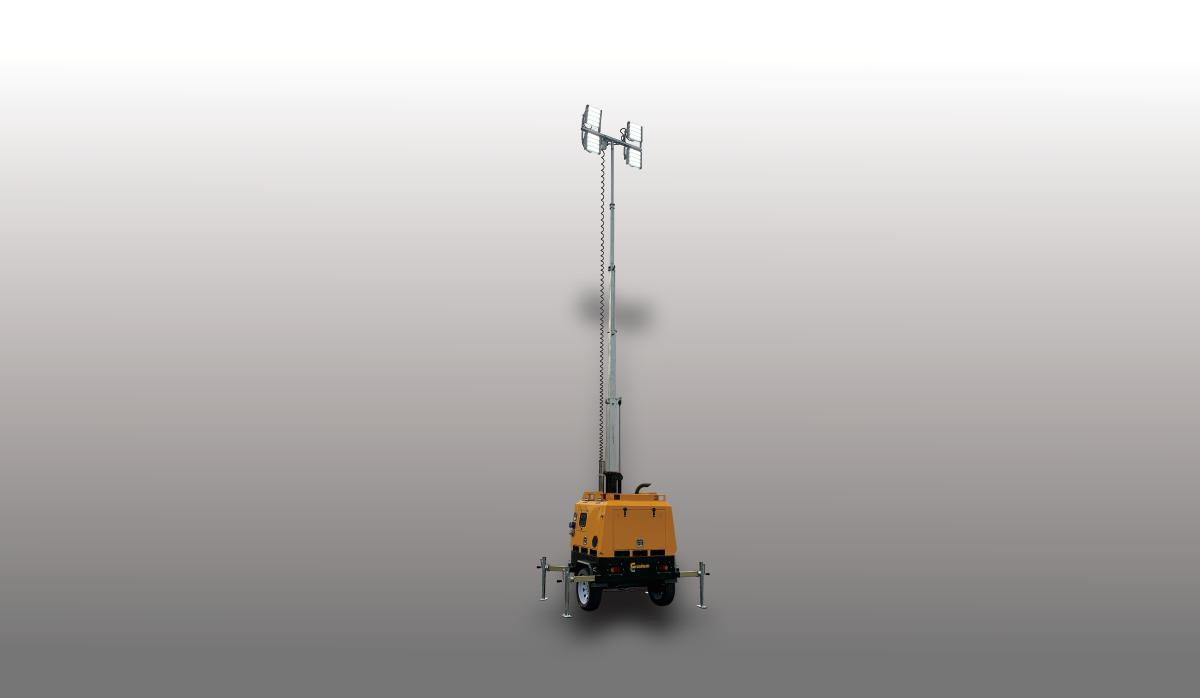

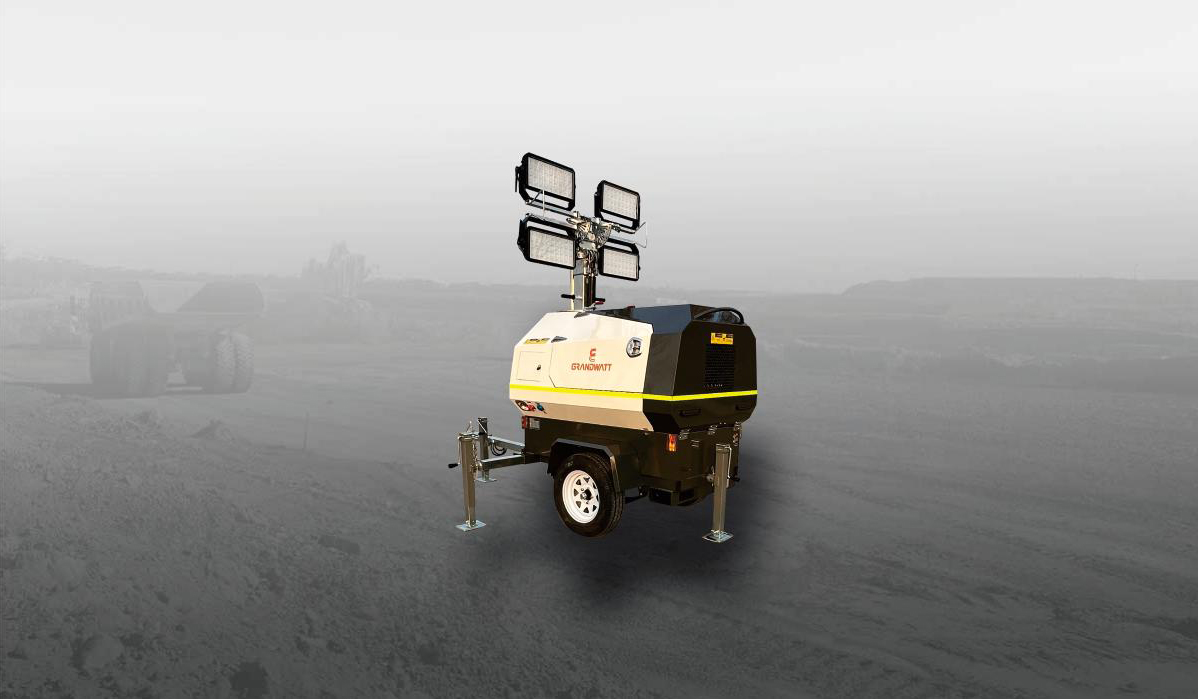

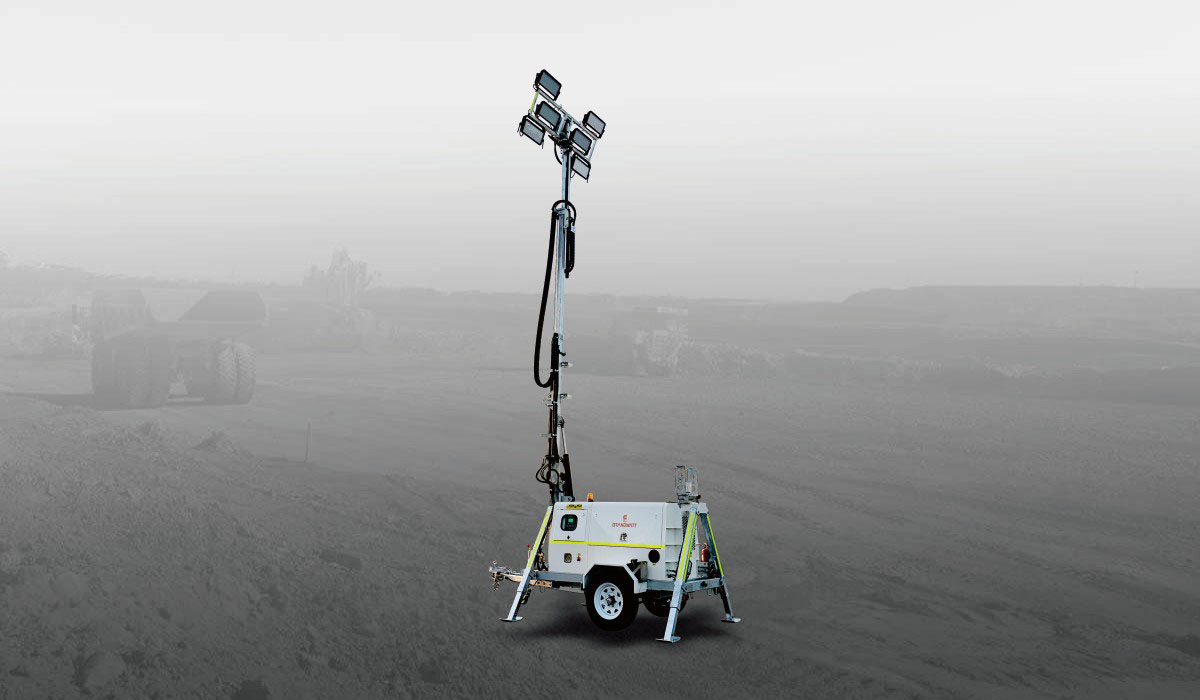

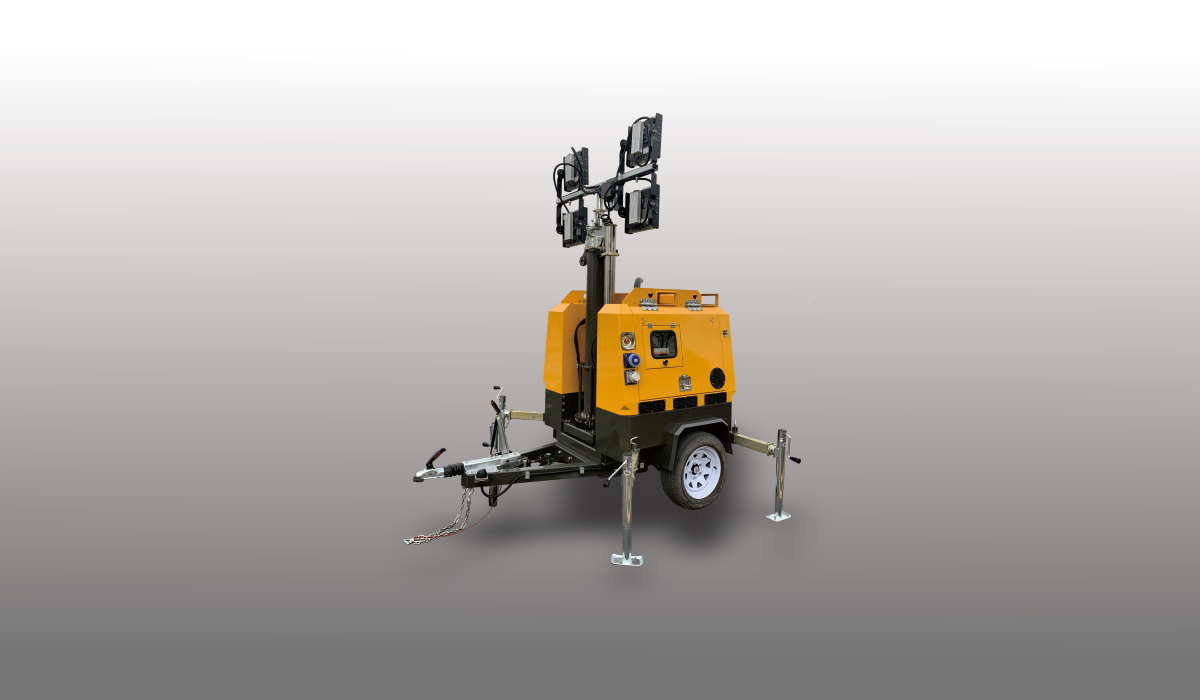

TEXAS Series Diesel Light Towers HX9-R2000

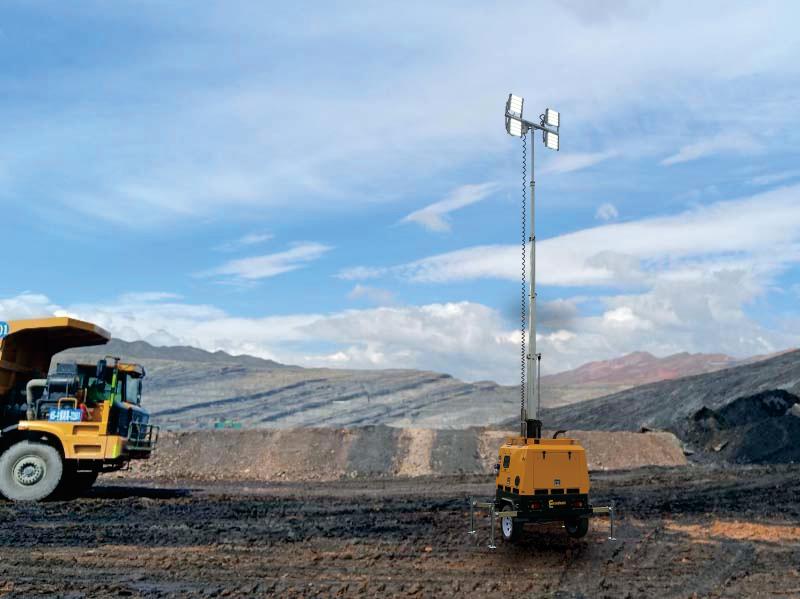

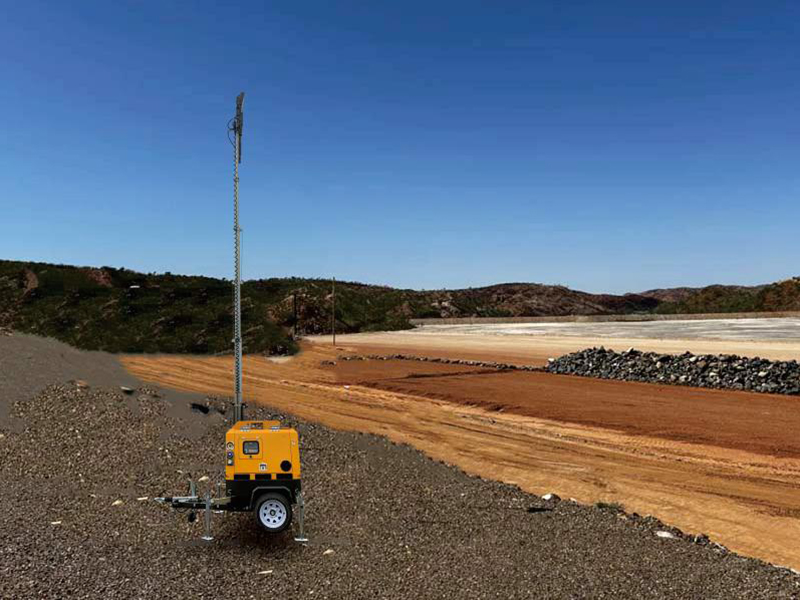

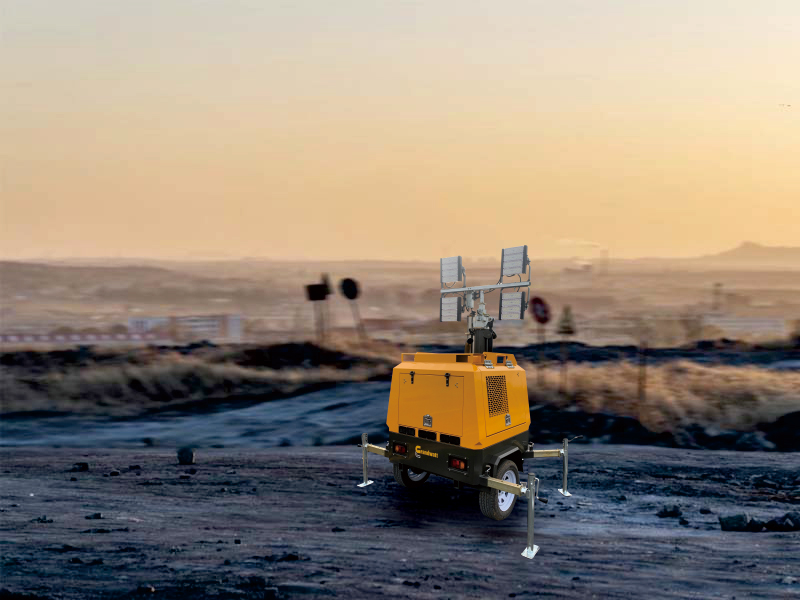

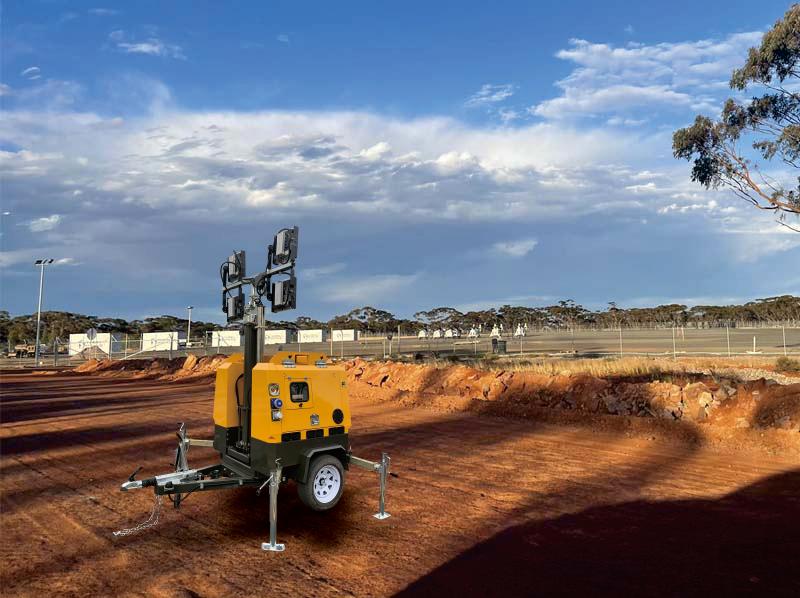

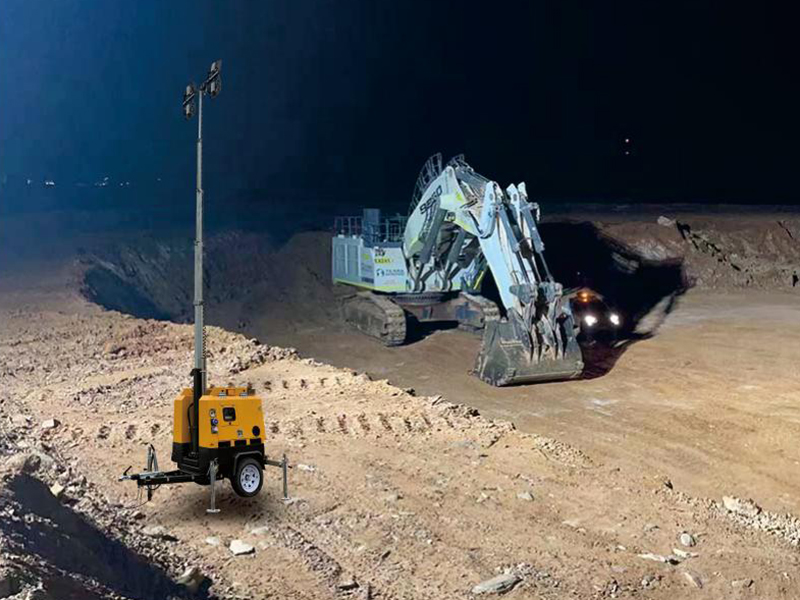

TEXAS series diesel light tower HX9-R2000 is mini hydraulic light tower, 8.5 m hydraulic light mast, 359° Manual rotation with locking. Its AMOSS kit automatically lowers the light tower mast when handbrake is released, a safe brake system to avoid towing the trailer with extended mast. It is applied in road, construction and mining, etc. It is powered by Japan Kubota engine and Italy Mecc Alte alternator, with 4*500W LED. It is economic, compact designed with super smaller size for transportation, it can be loaded 16 sets in a 40'high cube to save more transportation cost. This model is the most economic type and will bring you good lighting solution. It is widely welcome in Australia market, Asia market, North and South America market, etc. If you consider energy consumption and lighting area, HX9 would be great choice with competitive price.
Main Feature
6*400 W LED, 396,000 Lumens
Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.
6*400W LED or 6*600W LED are optional.
| HX9 Series Light Tower | ||||
| Standard Model | HX9-R1200 | HX9-R1600 | HX9-R2000 | |
| Dimensions | Max.(L*W*H) | 2,285 mm (7' 5 ½" )*1,470 mm ( 4' 10" )*8,500 mm(28’8) | ||
| Max.(L*W*H) | 1,145 mm(3' 9")*1,470 mm ( 4' 10" )*2,490 mm ( 8'2" ) | |||
| Gross weight | 1,090kg ( 2,403 lbs ) | |||
| Engine | Model | D1105 Kubota or 3TNV76 Yanmar | ||
| Speed(rpm) | 1,500/1,800 | |||
| Engine characters | 3 cylinders, 4 cycles & Water cooling | |||
| Combustion/Aspiration | IDI/ Natural aspiration | |||
| Alternator | Model | LT3N-130/4 Mecc alte | ||
| Frequency (HZ) | 50/ 60 | |||
| Rating voltage | 230/ 240-120 VAC | |||

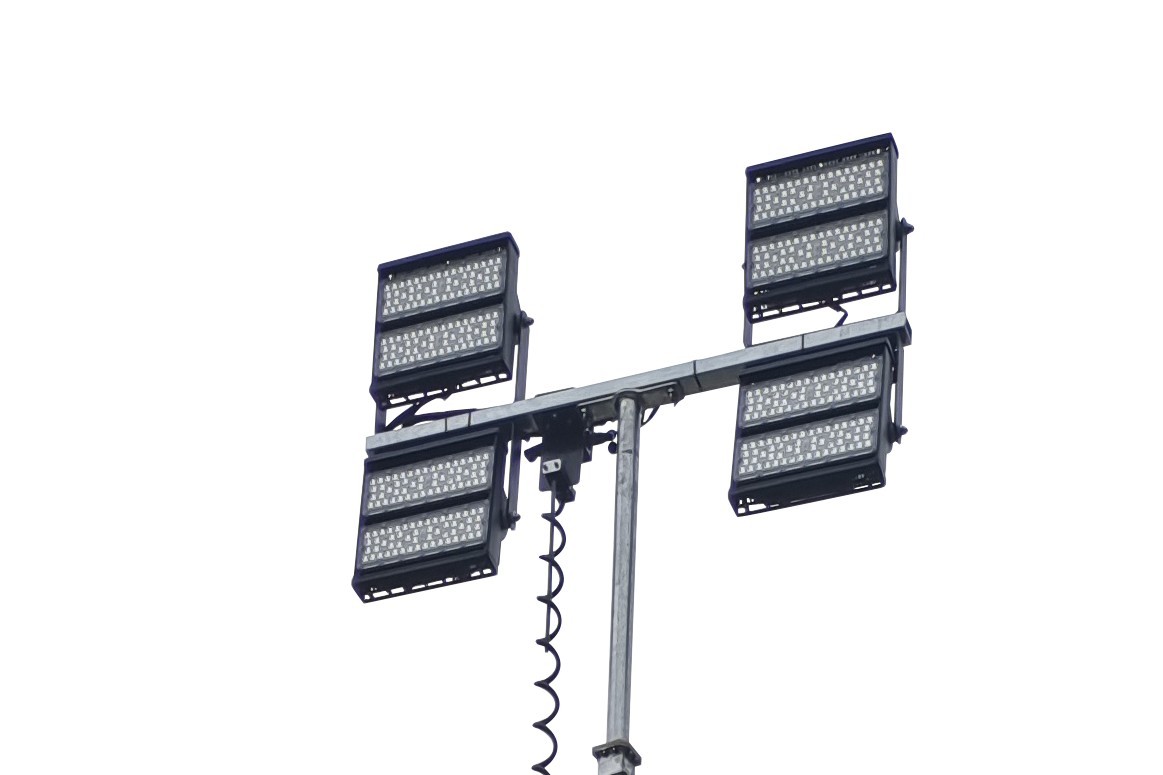

| Mast & Luminaire | Luminaire | 4*300W LED | 4*400W LED | 4*500W LED |
| Luminous flux | 180,000 Lm | 232,000 Lm | 290,000 Lm | |
| Mast style | 7 sections, Hydraulic drive | |||
| Mast rotation | 359° Manual rotation with locking | |||
| Mast structure treatment | Hot galvanizing | |||
| Light rotation | 359° Manual rotation | |||
| Light tilt | Manual | |||
| Trailer | Suspension & brake | Torsion axle with AMOSS kit | ||
| Towing bar | "A" style with a supporting wheel | |||
| Max towing speed | 100 km/h ( 62 mph) | |||
| General Data | Accessory | 1*socket output and 1*mains input | ||
| Fuel tank | 100 liters ( 26 US gal) bunded metal tank | |||
| Operating hours | 130 hours | 110 hours | 100 hours | |
| Control system | Grandwatt Controller 1790N | |||
| Max. against wind | 20 m/s (45 mph) | |||
| Max. acoustic pressure | 69 dB(A) at 7 meters away | |||
| Max. load in 40' high cube | 16 | |||
