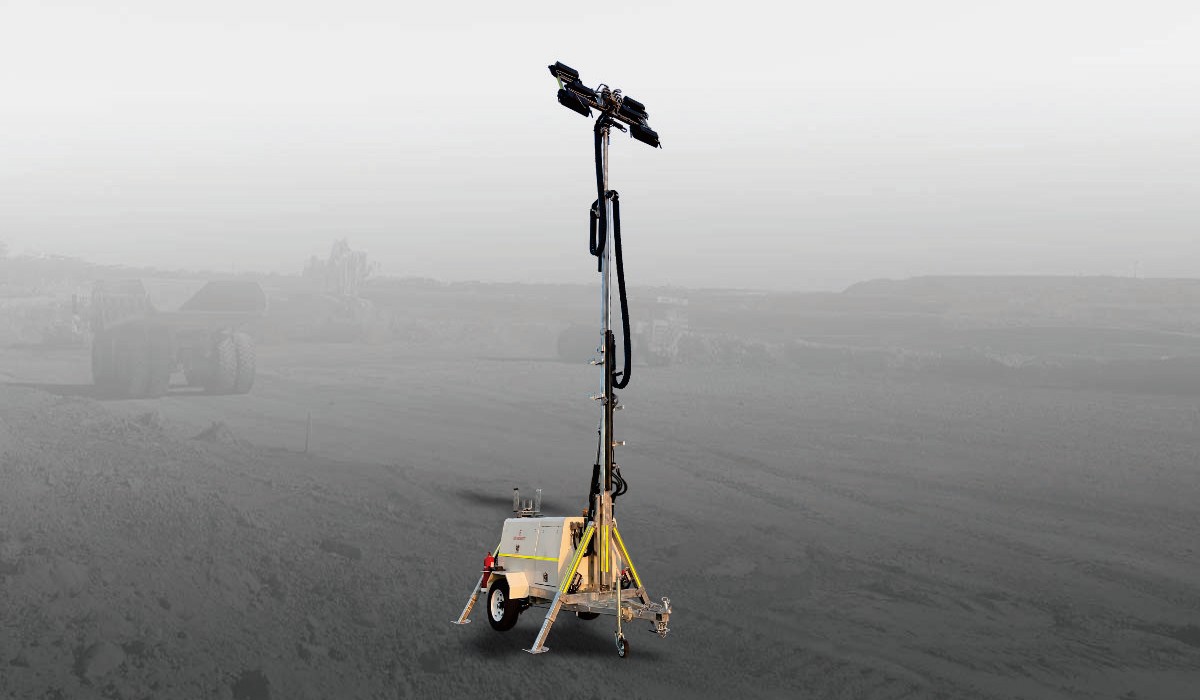

Hybrid Light Tower For Mine Sites (2).jpg

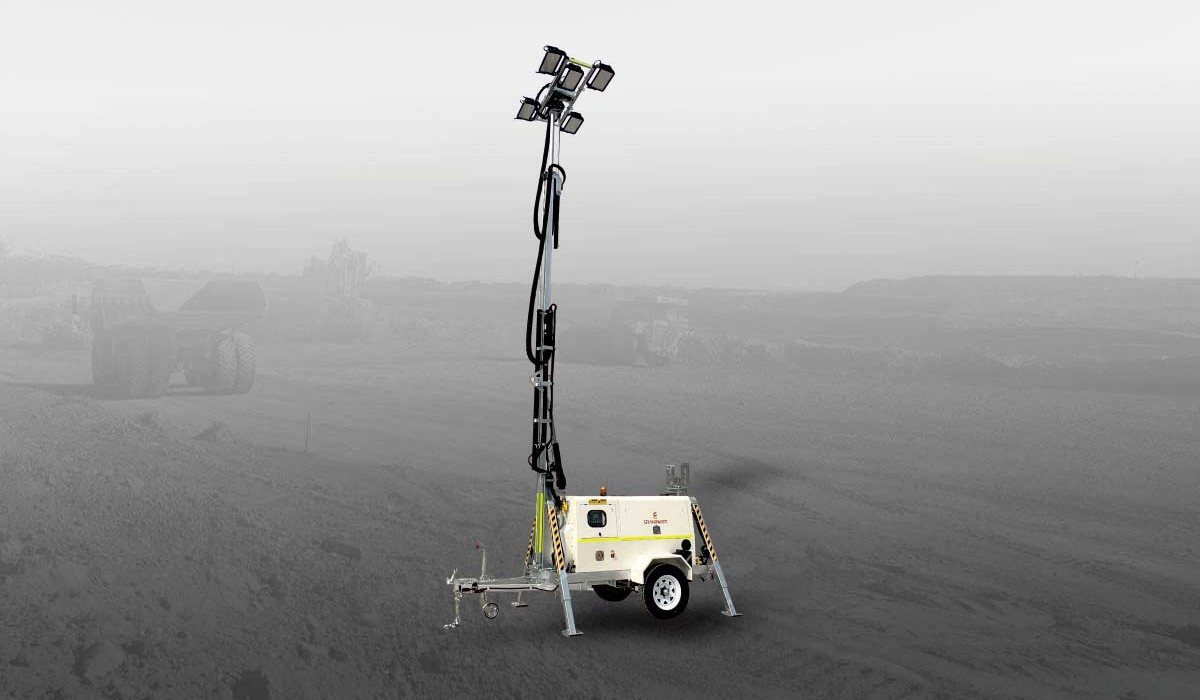

Hybrid Light Tower For Mine Sites (3).jpg

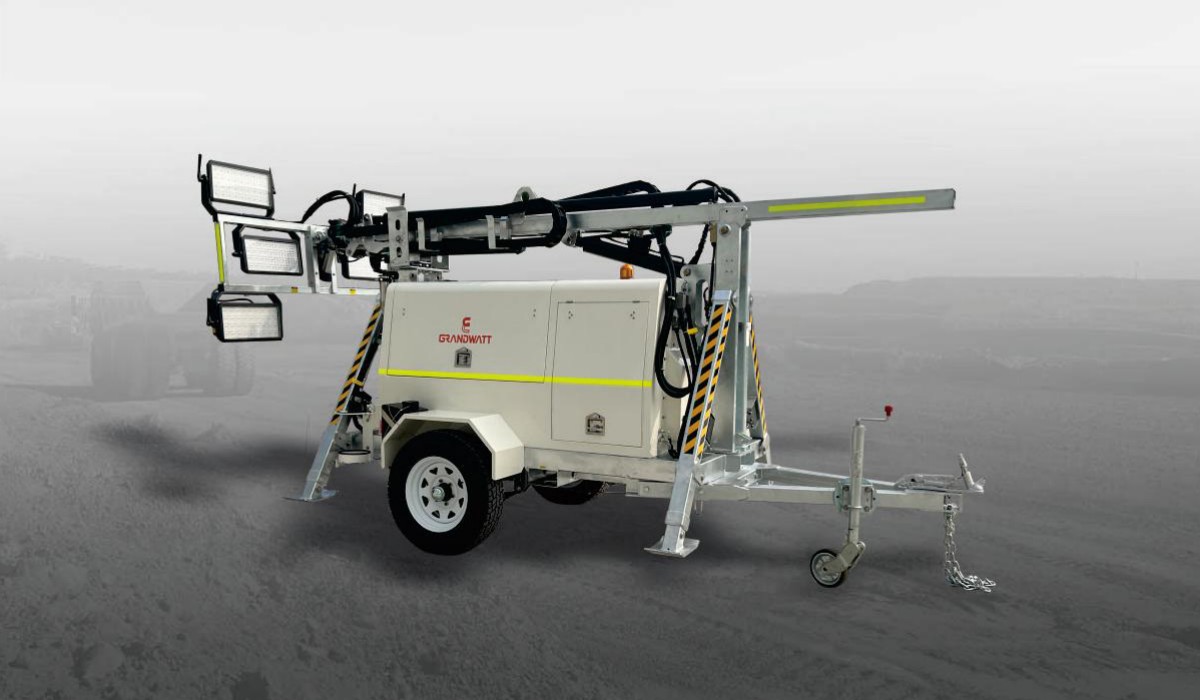

Hybrid Light Tower For Mine Sites (4).jpg

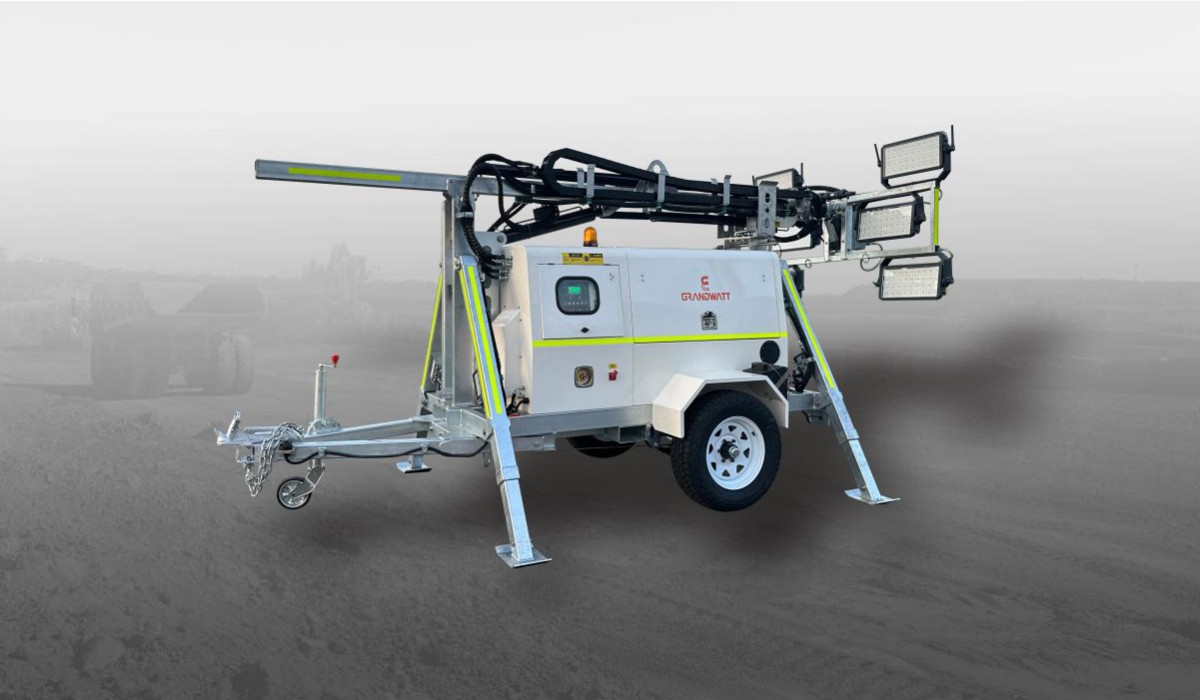

Hybrid Light Tower For Mine Sites (5).jpg
010203040506

TENNESSEE Series Diesel Light Towers HT10-M2240/DB

TENNESSEE series diesel light towers HT10-M2240/DB is an advanced lighting tower that operates from diesel and lithium battery combination. Utilizing latest, hybrid technology, it will save 39% fuel cost, extend 57% maintenance period, running time before refill reach to 520h with big fuel tank capacity 348L, which will save labor cost drastically. In the meanwhile, it will reduce CO2 emissions and noise at night. Japan Kubota or Yanmar engine coupled to a Sincro DC alternator makes for a winning combination. The Hybrid Light Tower stands out with its unique combination of lithium battery and diesel power, allowing for extended operation while significantly reducing fuel consumption and emissions. Equipped with high-efficiency LED lights, it provides bright, clear illumination that can cover vast areas, ensuring safety and visibility in any environment. With adjustable height and 359°rotation, you can easily direct light where it’s needed most. The HYBRID is ready to apply in road construction, mining, oil field, events and military, provide continuous all weather and all years round illumination.

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

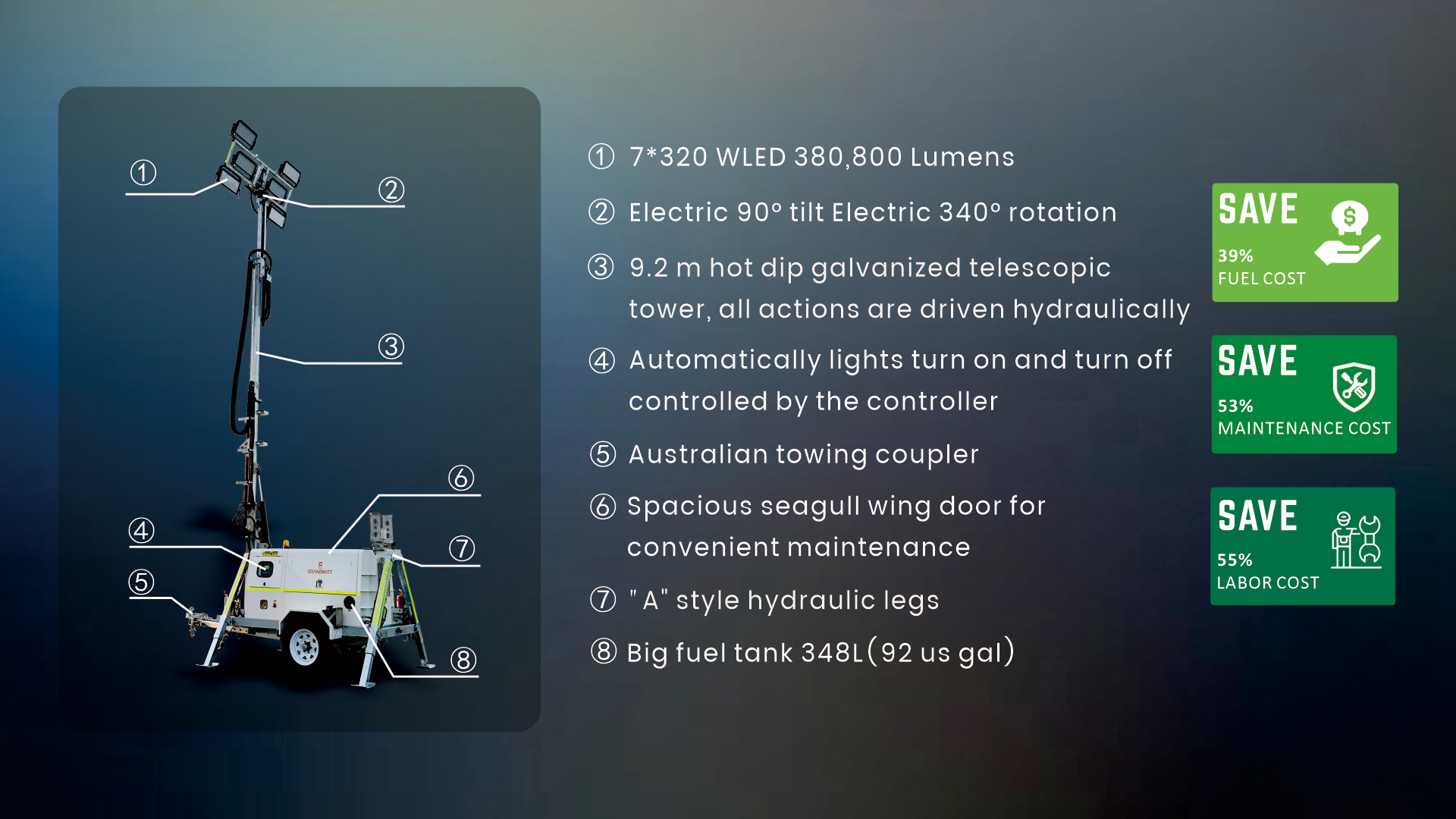

HIGHLIGHT FEATURES

Main-feature

MAIN DATASHEET

HBT10 Series Light Tower
Standard Model HT10-M2240/DB
Mast System Max mast height 9,200mm ( 30' 2")
Mast structure treatment Hot galvanizing
Mast raise & telecope Hydraulic
Light bar rotation Electric 340°
Light bar tilt Electric 90°
Luminaire Luminaire 7*320 W LED (48 VDC)
Overall lumens 380,800 Lumens
Dimensions Overall width 2,070mm ( 6' 9½" )
Overall height 2,410mm ( 8')
Overall length 4,810mm ( 15'9")
Weight 2,000 kg (4,409 lbs)
Engine & Alternator Engine model KUBOTA D1105
Engine characters 3 cylinders, 4 cycles & water cooling
Alternator DC type
Battery Lithium battery 2*200Ah
General Data Fuel tank 348 liters (92 US gal) bunded metal tank
Fuel consumption 1.78 L/hrs
Hybrid mode consumption 0.67 L/hrs
Run time before refuel 455 hours
Control system Hybrid controller
Max wind resistance 20m/s (45mph)
Max units load in 40' HC 3

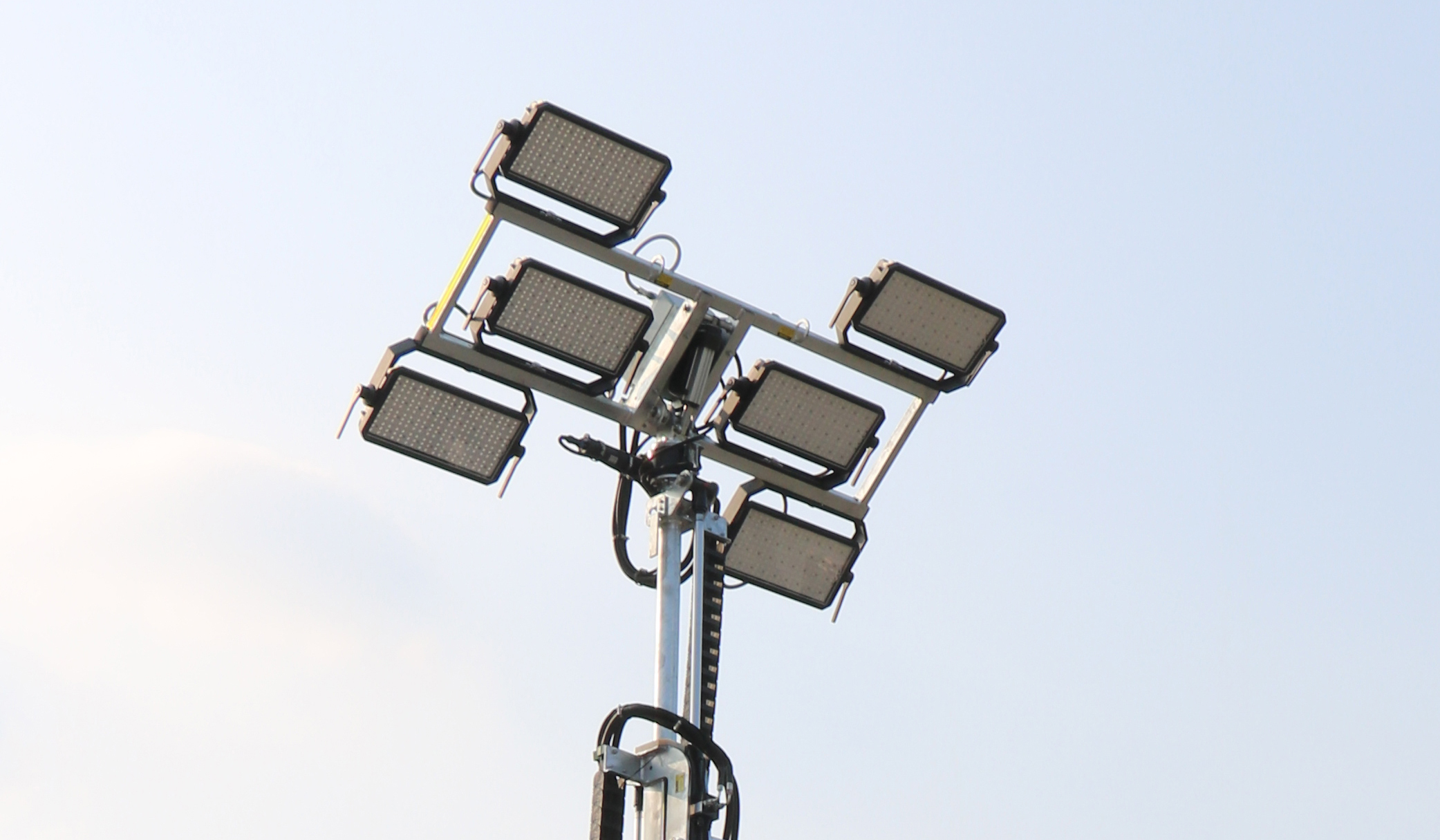

OPTIONS AVAILABLE
