Diesel Light Towers

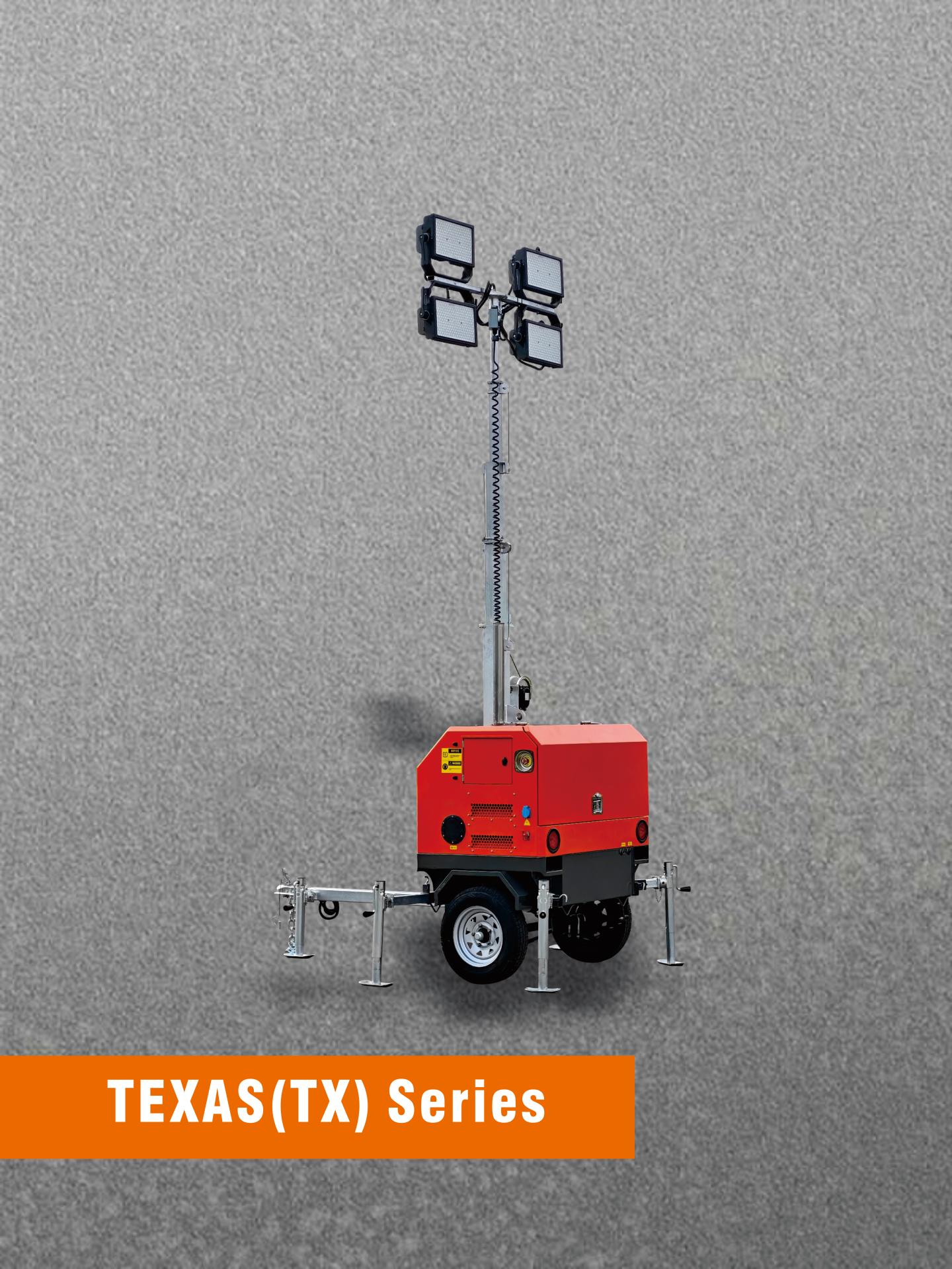

TEXAS series diesel light tower X7-R1200 is subcompact type manual vertical light tower, 7m manual light mast, 90° manual rotation for 2 light mounting tubes and 360° manual rotation for each light. It is applied in road, construction and mining, etc. It is powered by Japan Kubota or Yanmar engine and Italy Mecc Alte alternator, with 4*300W or 4*350W LED. It is economic, super compact designed with super smaller size for transportation, it can be loaded up to 23 sets in a 40’ high cube to save more transportation cost. This model is the most economic type and will bring you good lighting solution. If you consider energy consumption and small floor area, X7 would be great choice with competitive price.

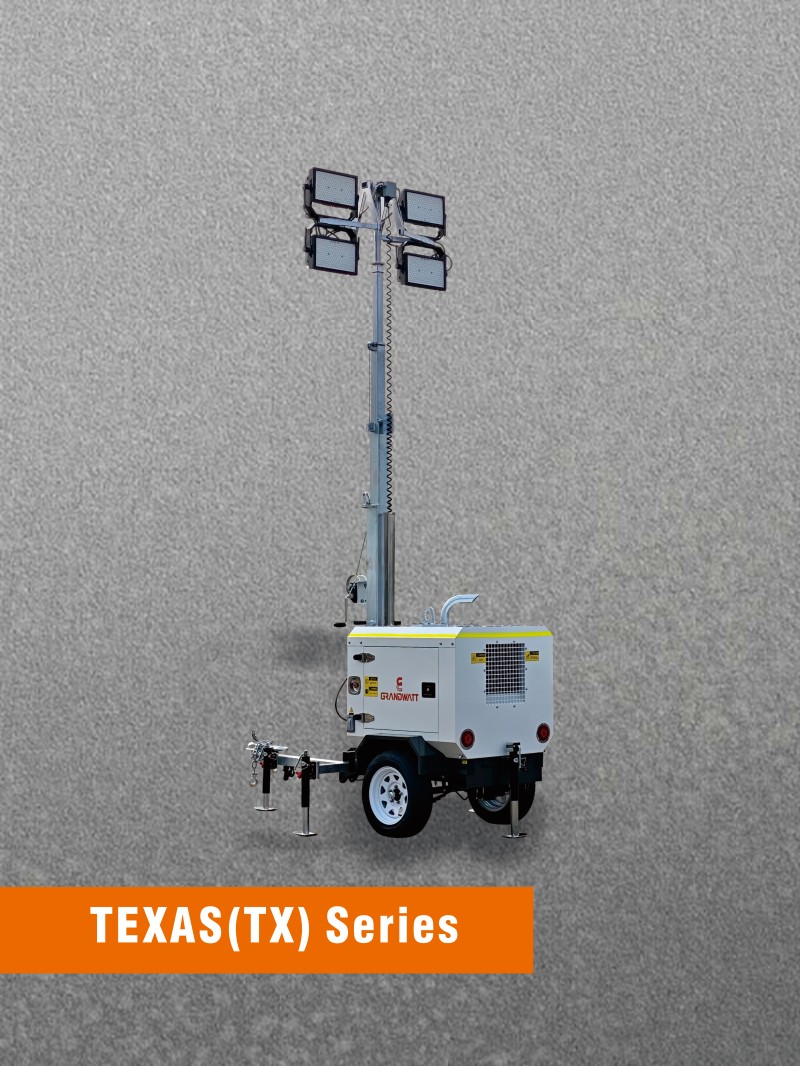

TEXAS series diesel light tower X8000 features a 26'3" high, galvanized mast with 359-degree rotation. Wide doors for easy maintenance along with an easy-to use controller to manage your hour, day, week, dusk to dawn, and remote requirements. Choice of Yanmar or Kubota coupled to a Mecc Alte alternator makes for a winning combination. The rugged X8000 is a perfect fit for construction, mining, oil field, events, rental, and military applications. Its compact design equates to more units on a truck or in a container.

TEXAS series diesel light tower HX9-R2000 is mini hydraulic light tower, 8.5 m hydraulic light mast, 359° Manual rotation with locking. Its AMOSS kit automatically lowers the light tower mast when handbrake is released, a safe brake system to avoid towing the trailer with extended mast. It is applied in road, construction and mining, etc. It is powered by Japan Kubota engine and Italy Mecc Alte alternator, with 4*500W LED. It is economic, compact designed with super smaller size for transportation, it can be loaded 16 sets in a 40'high cube to save more transportation cost. This model is the most economic type and will bring you good lighting solution. It is widely welcome in Australia market, Asia market, North and South America market, etc. If you consider energy consumption and lighting area, HX9 would be great choice with competitive price.

TENNESSEE series diesel light towers TN9-R4000 is manual horizontal light tower, 9 m manual light mast, 330° manual rotation with locking pin. It is powered by Japan Yanmar or Kubota engine and Italy Mecc Alte alternator, with 4*1000W metal halide, 300-400W LED are optional. Two individual manual winches are installed on the tower which ensure the operation of mast more reliable and safer, self-locking device be fitted on all winches which makes the extension of mast easily. It is economic, compact designed for transportation, it can be loaded 18 sets in a 40'high cube to save more transportation cost. Robust canopy with powder coated treatment and thickened metal plate which provide protection for interior components, and greatly improve life expectancy of light tower especially in the harsh environment, this model is the most economic type and will bring you good lighting solution.

TENNESSEE series diesel light towers HT10-M2400 is designed and applied for mining. Hydraulic mast, electric rotation and tilt, hydraulic legs are friendly and convenient for a person operation. It is powered by Japan Yanmar engine and DC alternator, with lower noise, lower fuel consumption, lower failure rate and global warranty. 6*400W LED or 6*600W LED light coverage ≥40,000 m². Controller has automatic timer to turn on and off light. 348L big fuel tank running 262 hours without refueling to save more maintenance time.

TENNESSEE series diesel light towers HT10-M2240/DB is an advanced lighting tower that operates from diesel and lithium battery combination. Utilizing latest, hybrid technology, it will save 39% fuel cost, extend 57% maintenance period, running time before refill reach to 520h with big fuel tank capacity 348L, which will save labor cost drastically. In the meanwhile, it will reduce CO₂ emissions and noise at night. Japan Kubota or Yanmar engine coupled to a Sincro DC alternator makes for a winning combination. The Hybrid Light Tower stands out with its unique combination of lithium battery and diesel power, allowing for extended operation while significantly reducing fuel consumption and emissions. Equipped with high-efficiency LED lights, it provides bright, clear illumination that can cover vast areas, ensuring safety and visibility in any environment. With adjustable height and 359°rotation, you can easily direct light where it’s needed most. The HYBRID is ready to apply in road construction, mining, oil field, events and military, provide continuous all weather and all years round illumination.

GRANDWATT NEVADA series light towers HNV9-R2000 features innovative designed wide angle maintenance door and trunk for conveniently access, 27'3'' max. height with telescopic hydraulic mast hot dipped, 359° manual rotation with multi-angle locking, ±90° manual lighting frame tilt with lockable pin, foldable stepping board for adjusting lights and horizontal angle. It is powered by Japan Kubota engine and Italy Mecc Alte alternator. It is applied in road construction, mining, oil field, events and military. Compact design makes loading and unloading quantity to be more pretty.
