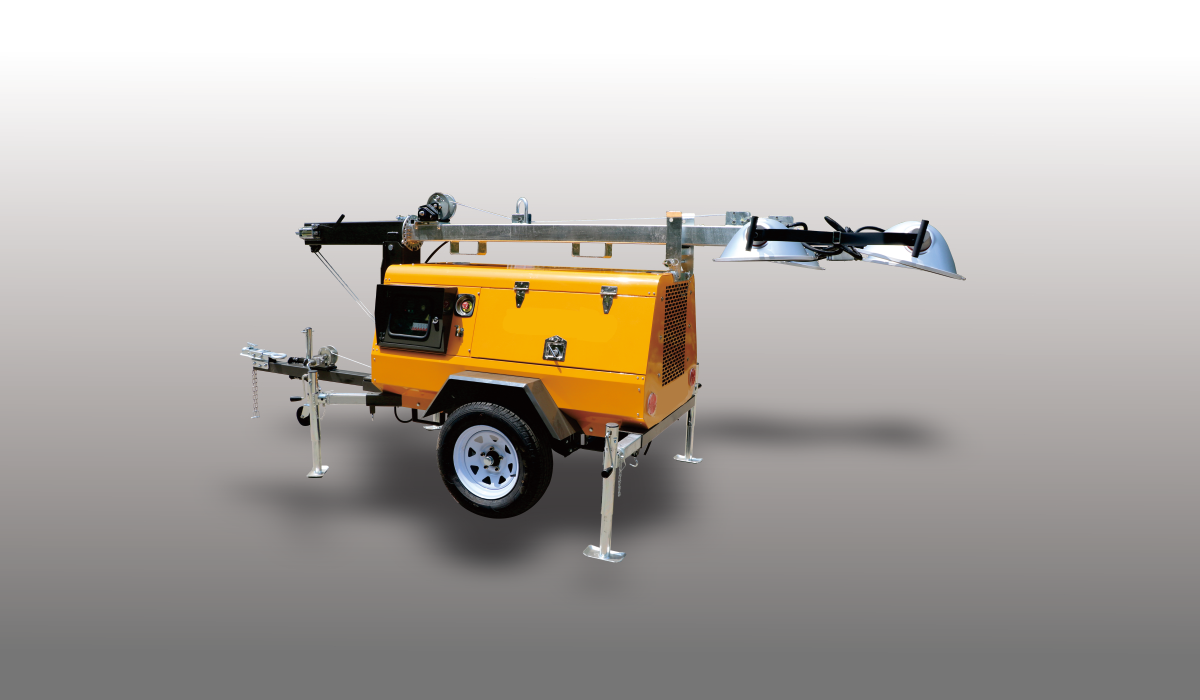

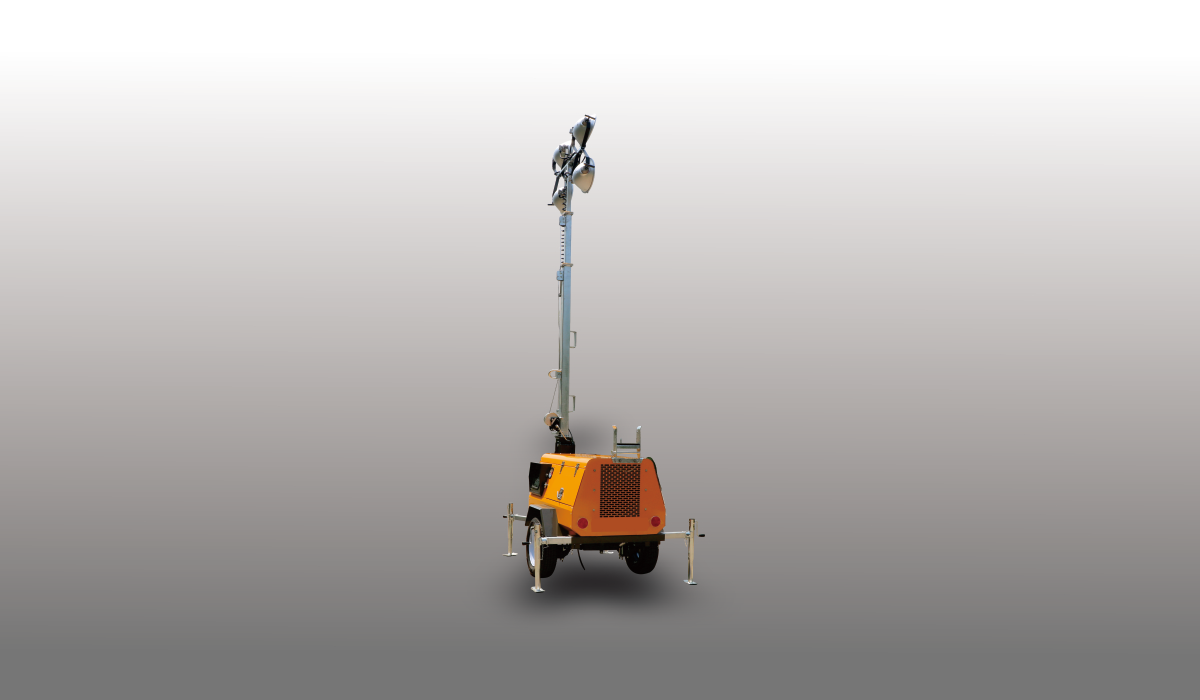

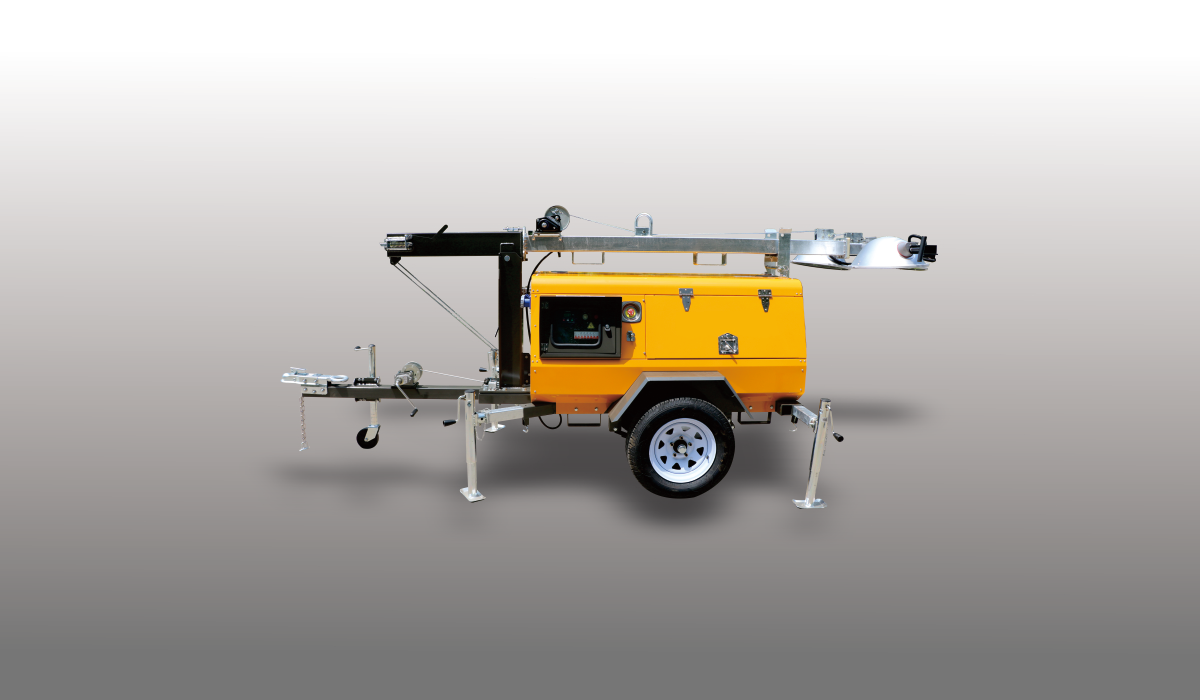

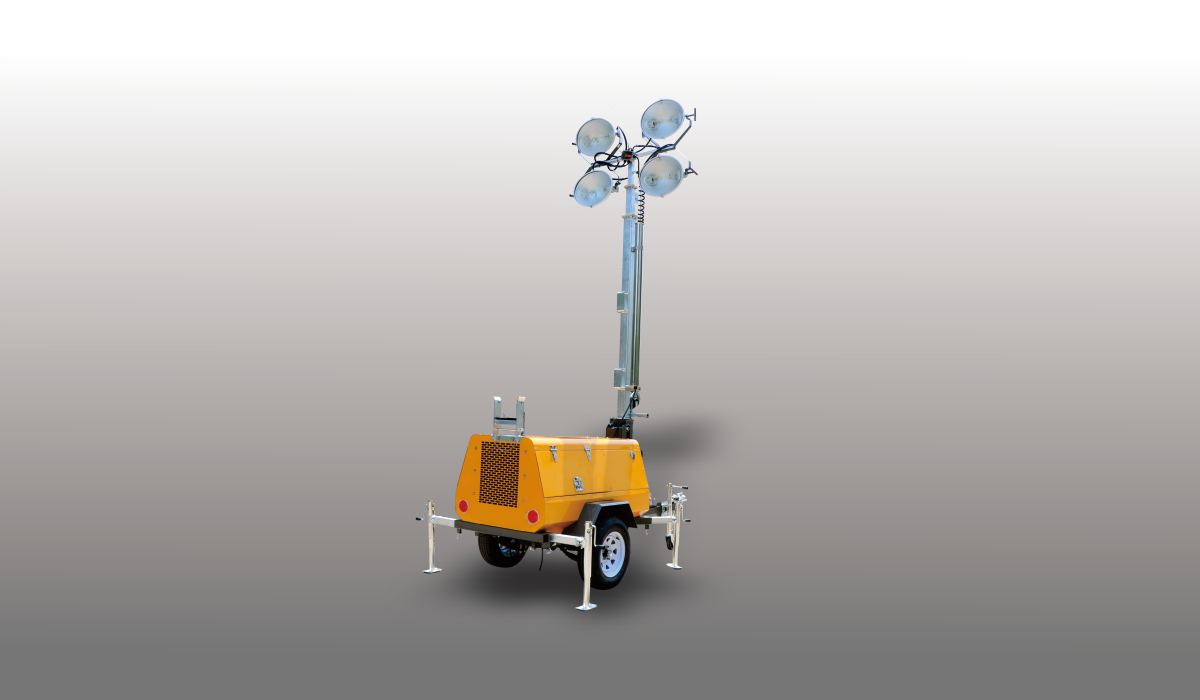

TENNESSEE Series Diesel Light Towers TN9-R4000
TENNESSEE series diesel light towers TN9-R4000 is manual horizontal light tower, 9 m manual light mast, 330° manual rotation with locking pin. It is powered by Japan Yanmar or Kubota engine and Italy Mecc Alte alternator, with 4*1000W metal halide, 300-400W LED are optional. Two individual manual winches are installed on the tower which ensure the operation of mast more reliable and safer, self-locking device be fitted on all winches which makes the extension of mast easily. It is economic, compact designed for transportation, it can be loaded 18 sets in a 40'high cube to save more transportation cost. Robust canopy with powder coated treatment and thickened metal plate which provide protection for interior components, and greatly improve life expectancy of light tower especially in the harsh environment, this model is the most economic type and will bring you good lighting solution.
Main Feature
6*400 W LED, 396,000 Lumens
Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.
6*400W LED or 6*600W LED are optional.
| TN9 Series Light Tower | |||||
| Standard Model | TN9-R4000 | TN9-R4400 | TN9-R1200 | TN9-R1600 | |
| Dimensions | Length*Width*Height | 3,180 mm (10' 5" )*1,320 mm ( 4' 4" )*1,450 mm ( 4' 9" ) | |||
| Height extended fully | 9 m (29' 7'') | ||||
| Gross weight | 980 kg ( 2,150 lbs ) | 930 kg ( 2,040 lbs ) | 950 kg ( 2,084 lbs ) | ||
| Engine | Model | D1105 Kubota or 3TNV76 Yanmar | |||
| Speed | 1,500rpm/ 1,800 rpm | ||||
| Engine characters | 3 cylinders, 4 cycles & Water cooling | ||||
| Combustion/Aspiration | IDI/ Naturally aspirated | ||||
| Alternator | Model | LT3N-130/4 MECCALTE | |||
| Frequency (HZ) | 50/60 | ||||
| Rating voltage | 230VAC 240/120 VAC | ||||
| Insulation | Class H | ||||

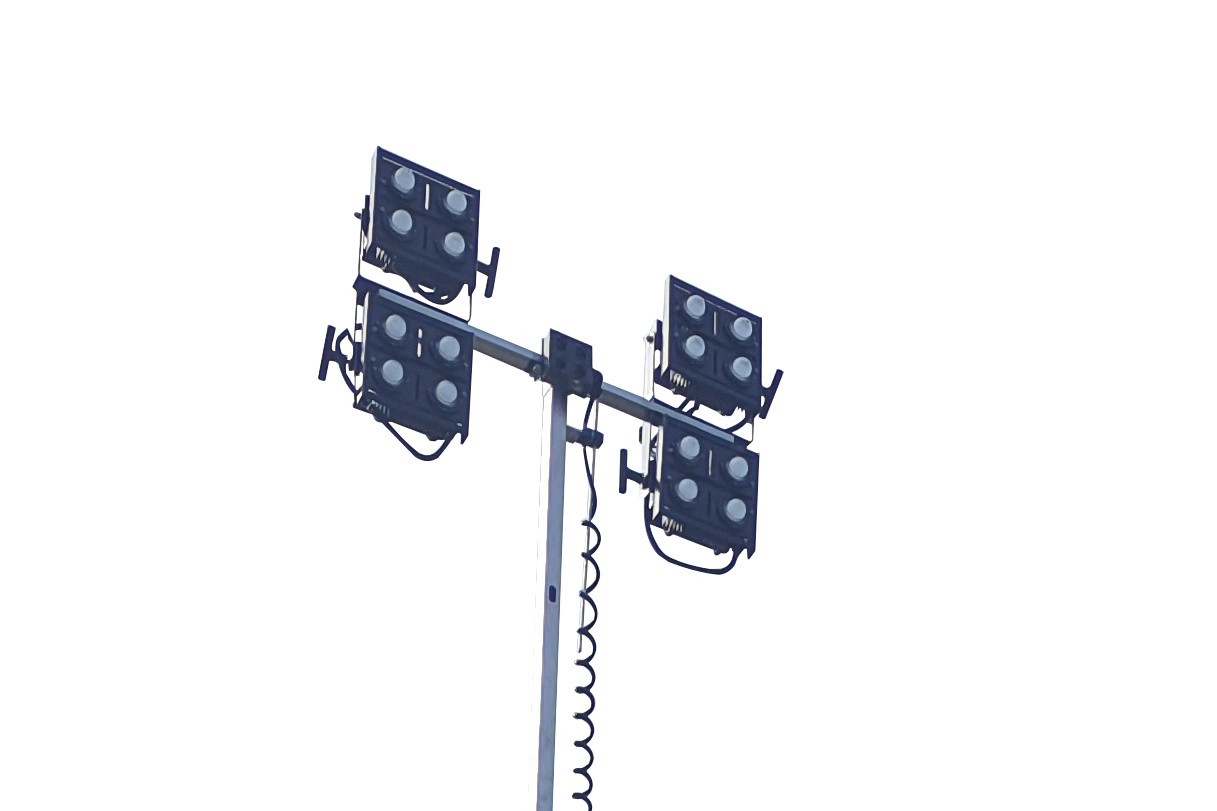

| Mast & Lights | Luminaire | 4*1,000W Metal Halide(Oval) |
4*1,100W Metal Halide(Oval) |
4*300W LED | 4*400W LED |
| Luminous flux | 440,000 Lm | 180,000 Lm | 232,000 Lm | ||
| Mast sections | 3 | ||||
| Mast lift & extension | Manual | ||||
| Mast rotation | 330° Manual rotation with locking pin | ||||
| Light tilt | Manual | ||||
| General Data | Fuel tank | 173 liters ( 45 US gal) metal tank | |||
| Operating hours | 110 hours | 105 hours | 225 hours | 190 hours | |
| Control system | Key start or optional Grandwatt Controller 1790N | ||||
| Max. against wind | 20 m/s (45 mph) | ||||
| Max. acoustic pressure | 71 dB(A) at 7 meters away | ||||
| Max. load in 40’ high cube | 18 (Mast has to be detached for loading) | ||||
