Hybrid Light Towers

GRANDWATT

Lithium Battery Hybrid Light Tower

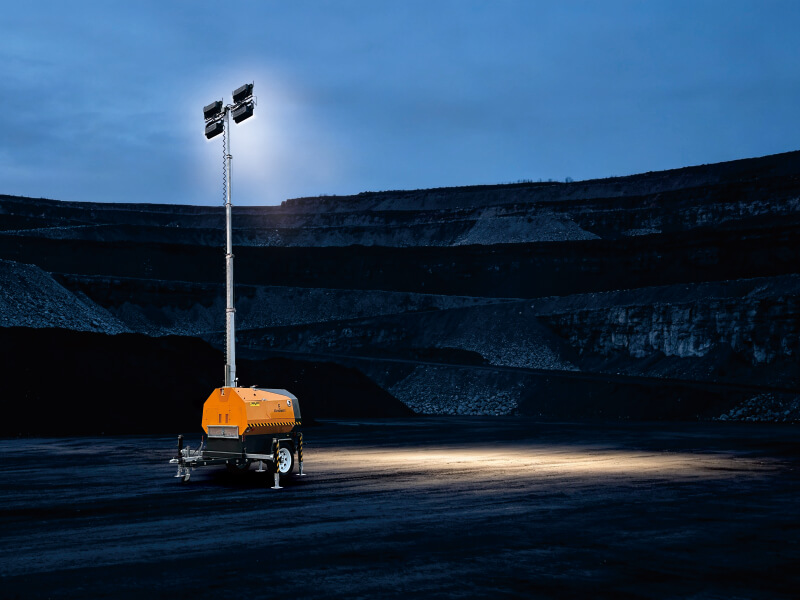

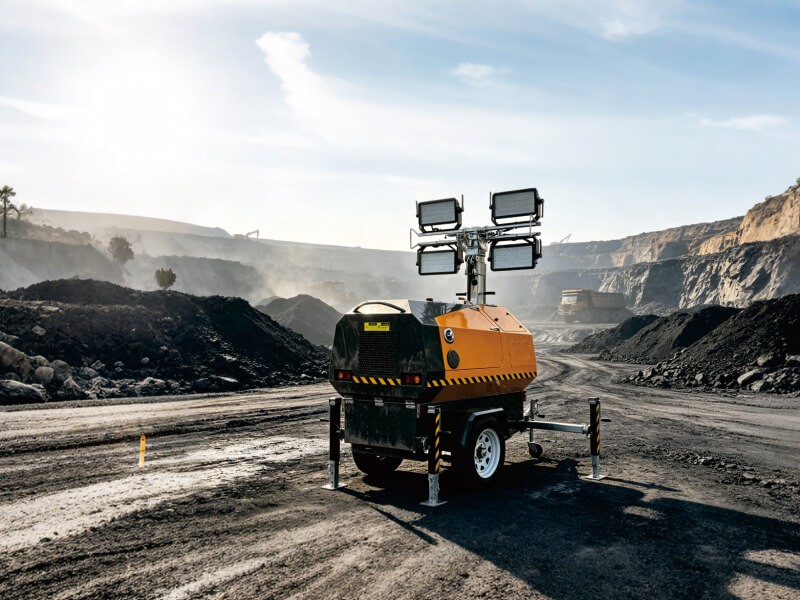

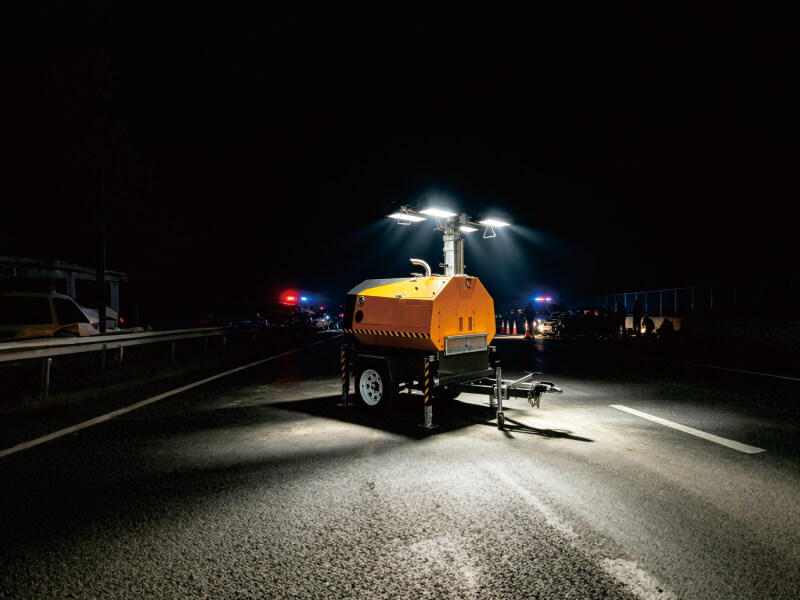

GRANDWATT NEVADA Series HYBRID is an advanced hybrid light tower combining diesel power with lithium battery energy storage. The intelligent energy management system automatically optimizes power usage, reducing fuel consumption and engine runtime compared with conventional diesel light towers. It extends service intervals, reduces refueling frequency, and lowers total operating costs while delivering reliable, low-noise lighting for mining, construction, oil & gas, and other demanding applications.

product details

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

Key Highlights

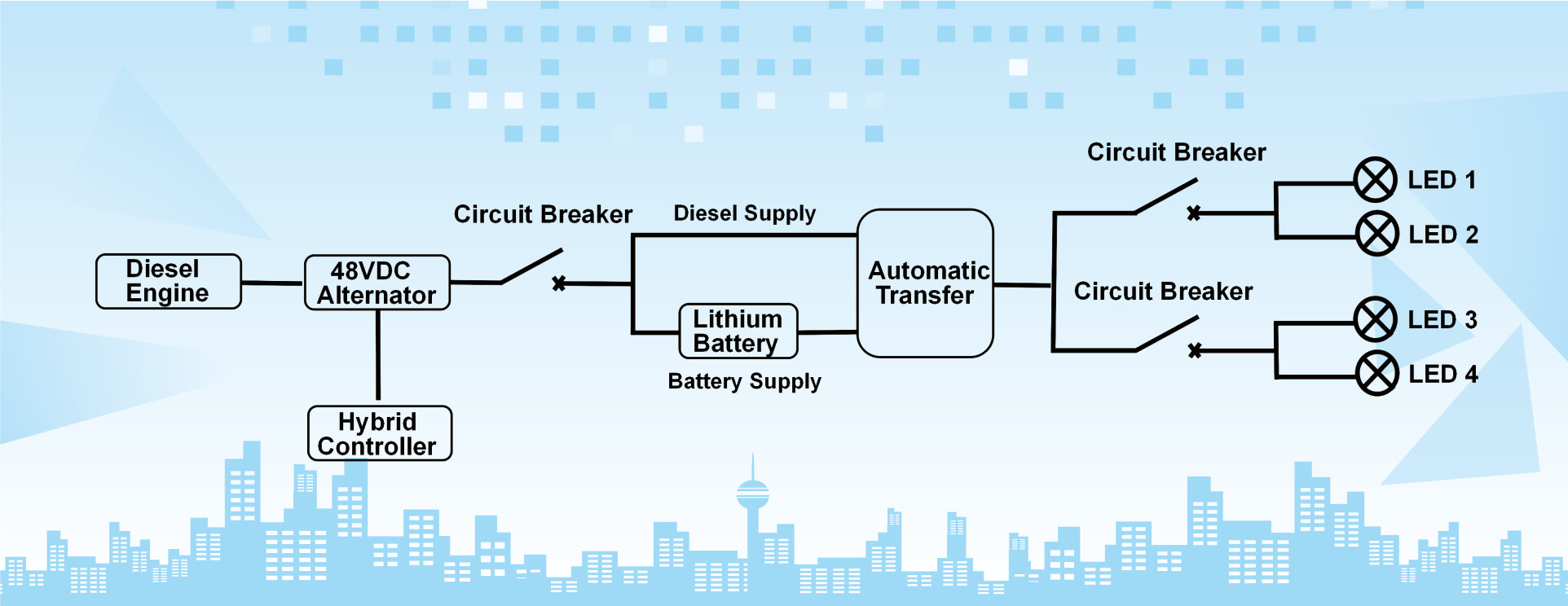

How It Works

Battery supplies power during low load.

Diesel engine starts automatically when needed.

Intelligent energy management optimizes power usage automatically

Why Choose Hybrid?

A Smarter Way to Use Diesel Power

Run the engine only when needed — reduce fuel consumption, lower maintenance, and improve overall efficiency without compromising performance.

Hybrid vs Conventional Diesel Light Towers

Item	Conventional Diesel	Hybrid
Engine Operation	Runs continuously	Runs only when needed
Fuel Consumption	High	Significantly reduced
Noise Level	Constant engine noise	Quiet battery operation available
Maintenance	Frequent servicing	Reduced maintenance intervals
Refueling	Frequent	Extended refueling intervals
Efficiency	Fixed operation	Intelligent energy management

Key Features

Lithium Battery
Energy Storage

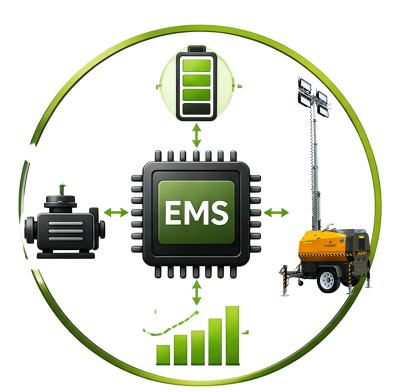

Intelligent Energy
Management

Automatic Start/Stop

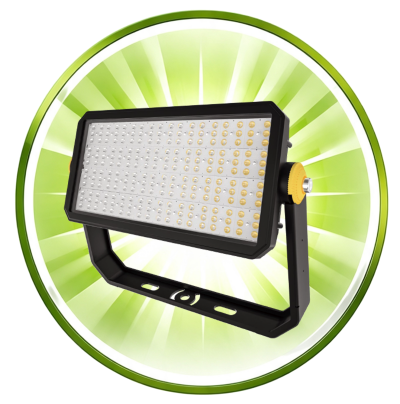

High Efficiency LED

Heavy-duty Structure

Easy Maintenance Design

Technical Specifications

NEVADA Series Hybrid Light Tower
Standard Model		HNV9-R2000/DB
Lighting & Mast	LED	4*500W
	Luminous Flux	330,000 Lumens
	Mast Type	Hydraulic
	Max. Height	27'6''(8.4 m)
Engine	Model	YANMAR 3TNV76
Alternator	Model	SINCRO FB4-48/150(DC 48V)
Battery	Lithium Battery	2*150Ah
Hybrid Performance	Charging Times	5 hours
	Battery Runtime	7 hours
	Fuel Consumption	0.77 L/hrs
	Run Time before Refuel	318 Hours
	Fuel Saving	Up to 34%
