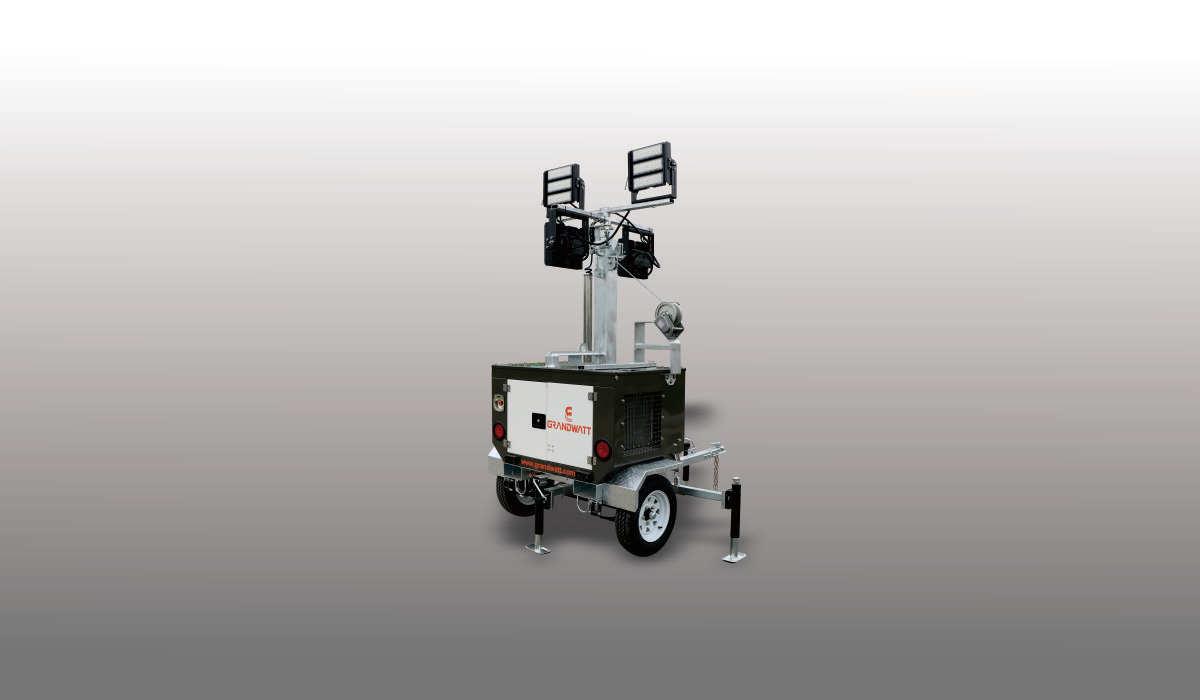

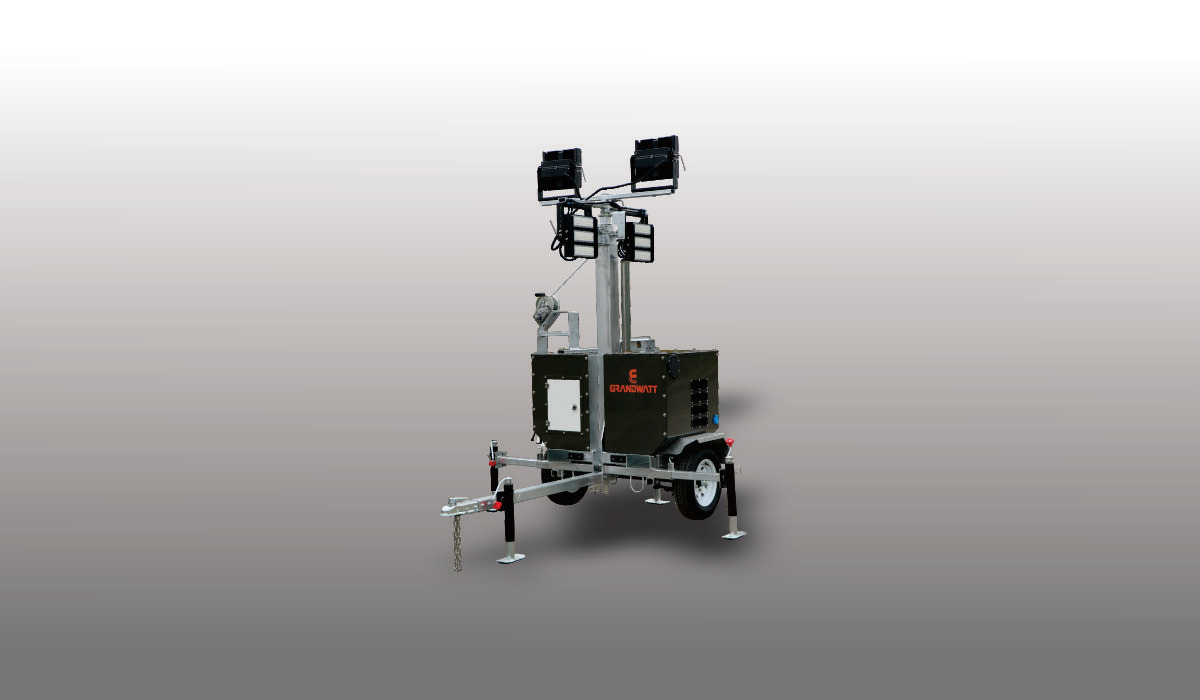

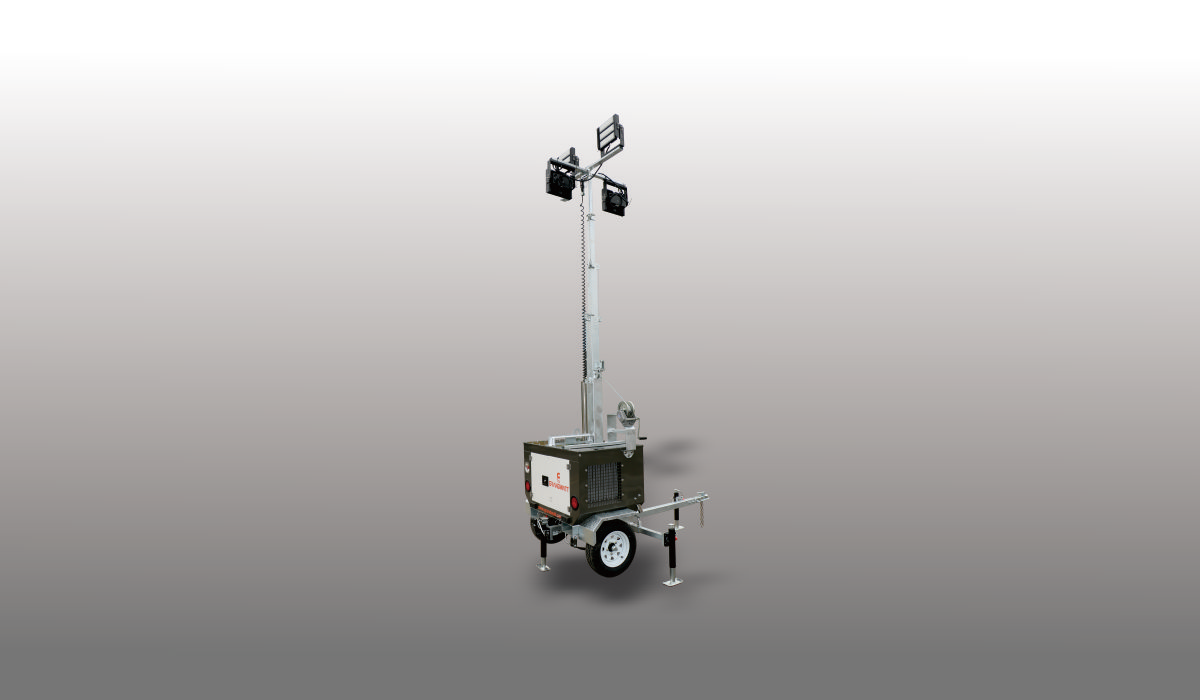

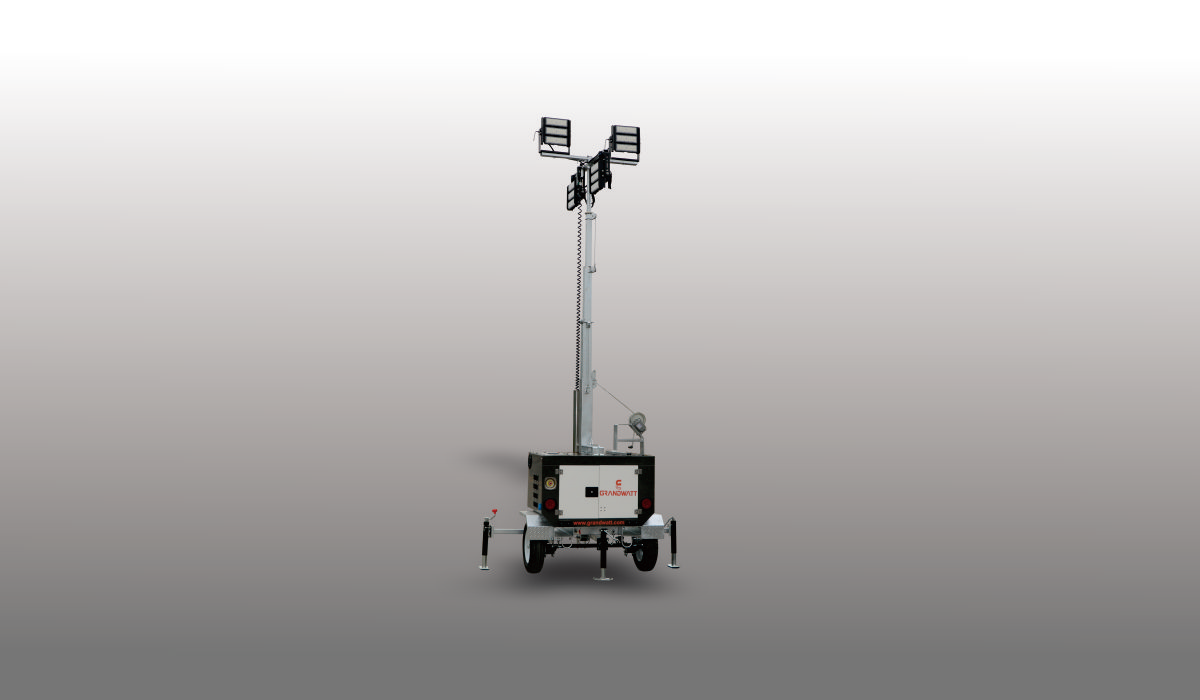

TEXAS Series Diesel Light Towers X7-R1200

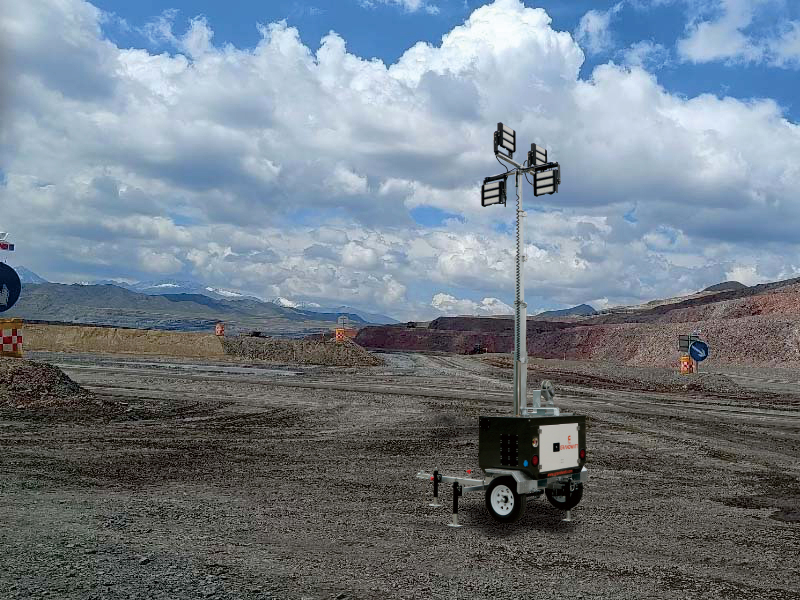

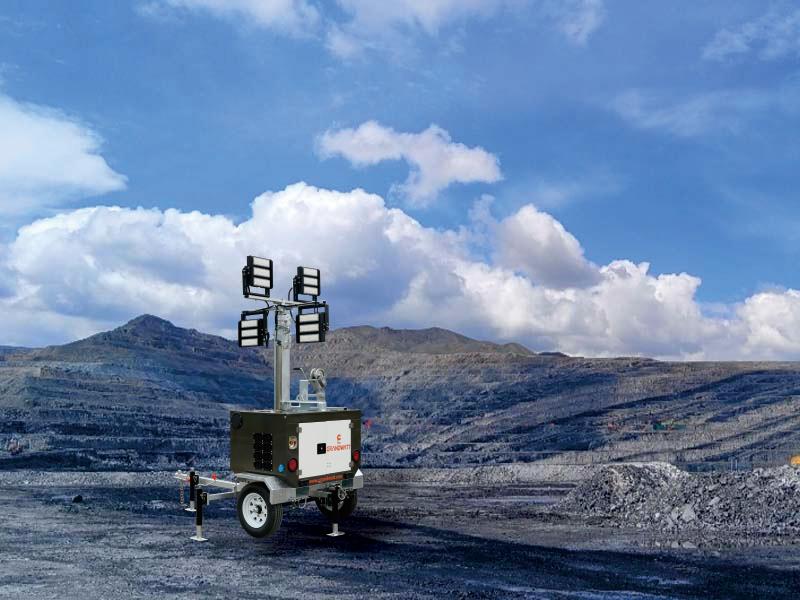

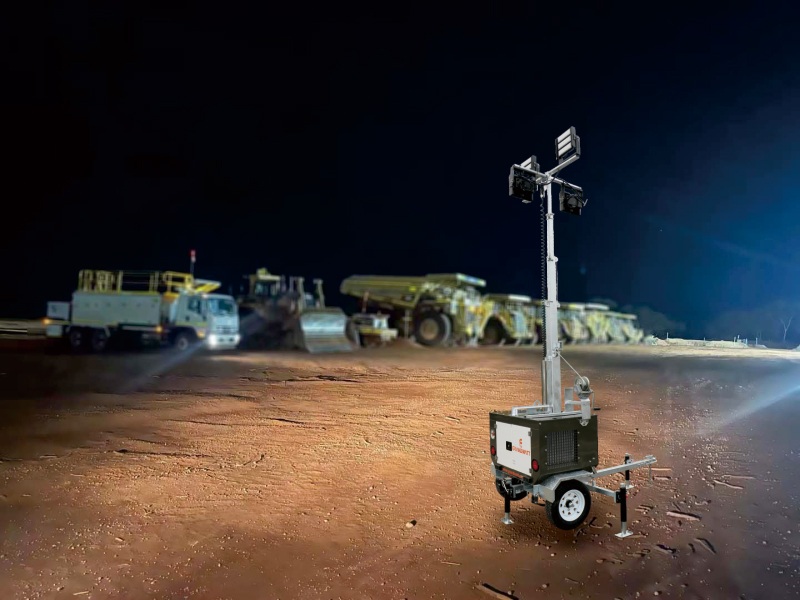

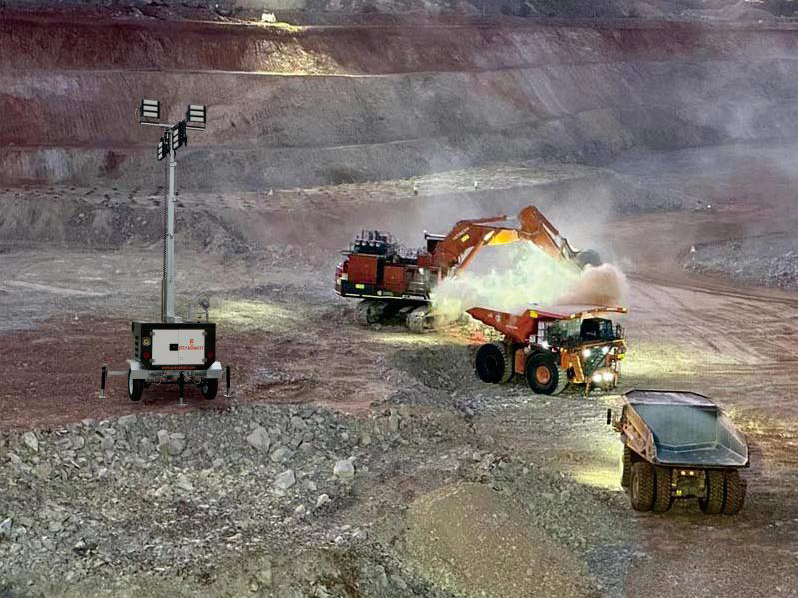

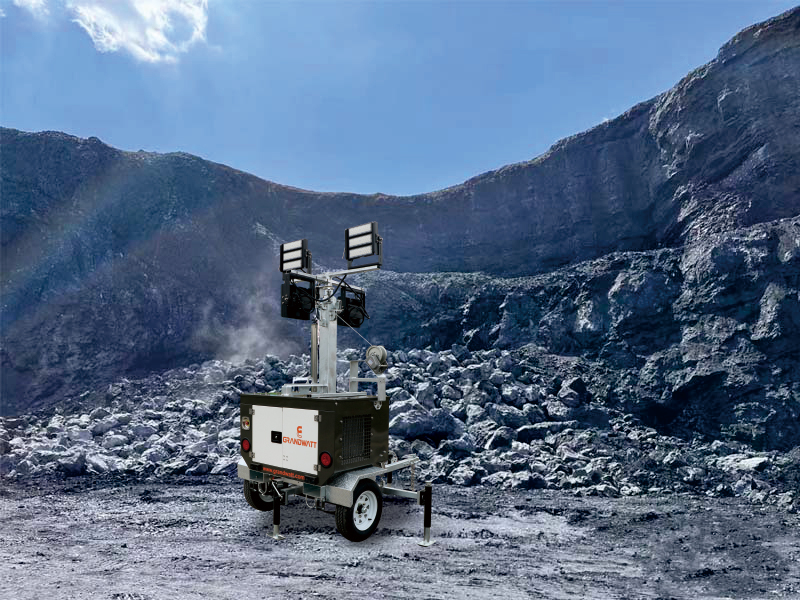

TEXAS series diesel light tower X7-R1200 is subcompact type manual vertical light tower, 7m manual light mast, 90° manual rotation for 2 light mounting tubes and 360° manual rotation for each light. It is applied in road, construction and mining, etc. It is powered by Japan Kubota or Yanmar engine and Italy Mecc Alte alternator, with 4*300W or 4*350W LED. It is economic, super compact designed with super smaller size for transportation, it can be loaded up to 23 sets in a 40’ high cube to save more transportation cost. This model is the most economic type and will bring you good lighting solution. If you consider energy consumption and small floor area, X7 would be great choice with competitive price.
Main Feature
6*400 W LED, 396,000 Lumens
Electric 90° tilt
Electric 340° rotation
9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically
Automatically lights turn on and turn off controlled by the controller
4 pcs " A" style hydraulic legs
Spacious seagull wing door for convenient maintenance
Big fuel tank 348L (92 us gal) running 262 hours without refueling.

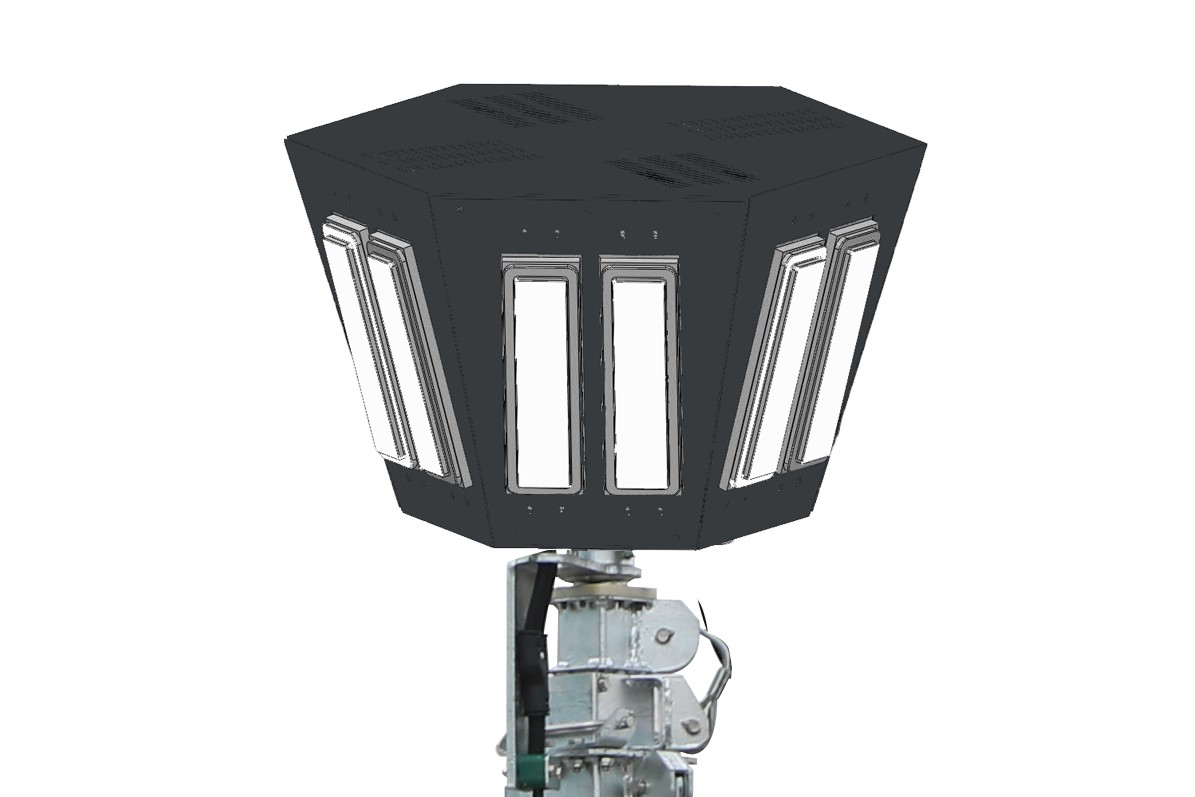

6*400W LED or 6*600W LED are optional.
| X7 Series Light Tower | |||||
| Standard Model | X7-R1200 | X7-R1400 | |||
| Dimensions | Max.(L*W*H) | 2,520mm (8'3")*1,430mm (4'8")*7 m (23' ) | |||
| Min.(L*W*H) | 815mm (2'8")*1,430mm (4'8")*2,350mm (7'8½") | ||||
| Gross weight | 620 kg ( 1,367 lb ) | ||||
| Engine | Engine model | Z482 Kubota/ 3TNM68 Yanmar | |||
| Engine speed(rpm) | 1,500/ 1,800 | ||||
| Engine characters | 2 cylinders(Z482)/ 3 cylinders(3TNM68), 4 cycles & water cooling | ||||
| Combustion & Aspiration | IDI & naturally aspirated | ||||
| Alternator | Alternator model | LT3N-75/4 Mecc alte | |||
| Frequency (HZ) | 50HZ/ 60HZ | ||||
| Voltage | 220/ 230/ 240-120 VAC | ||||

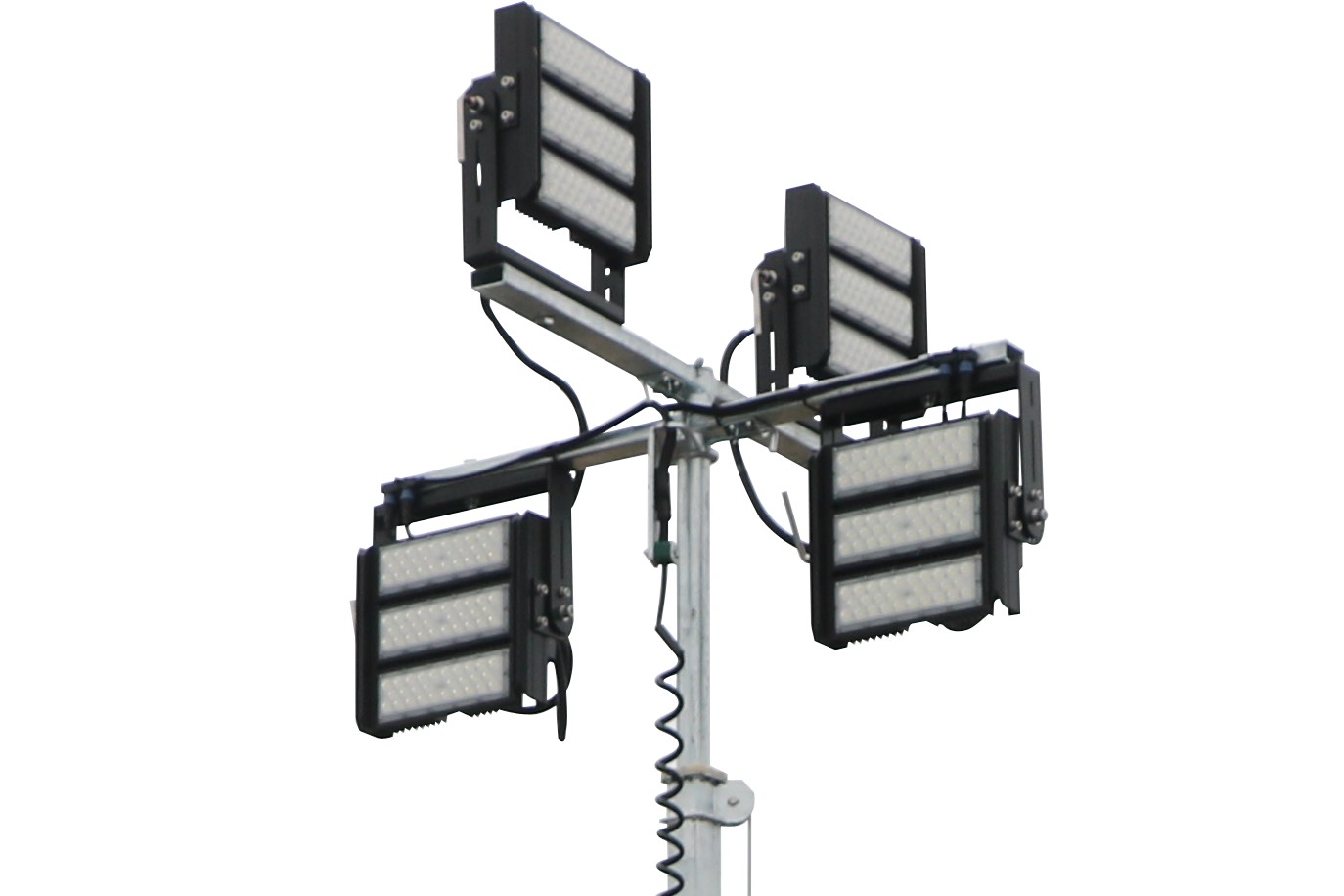

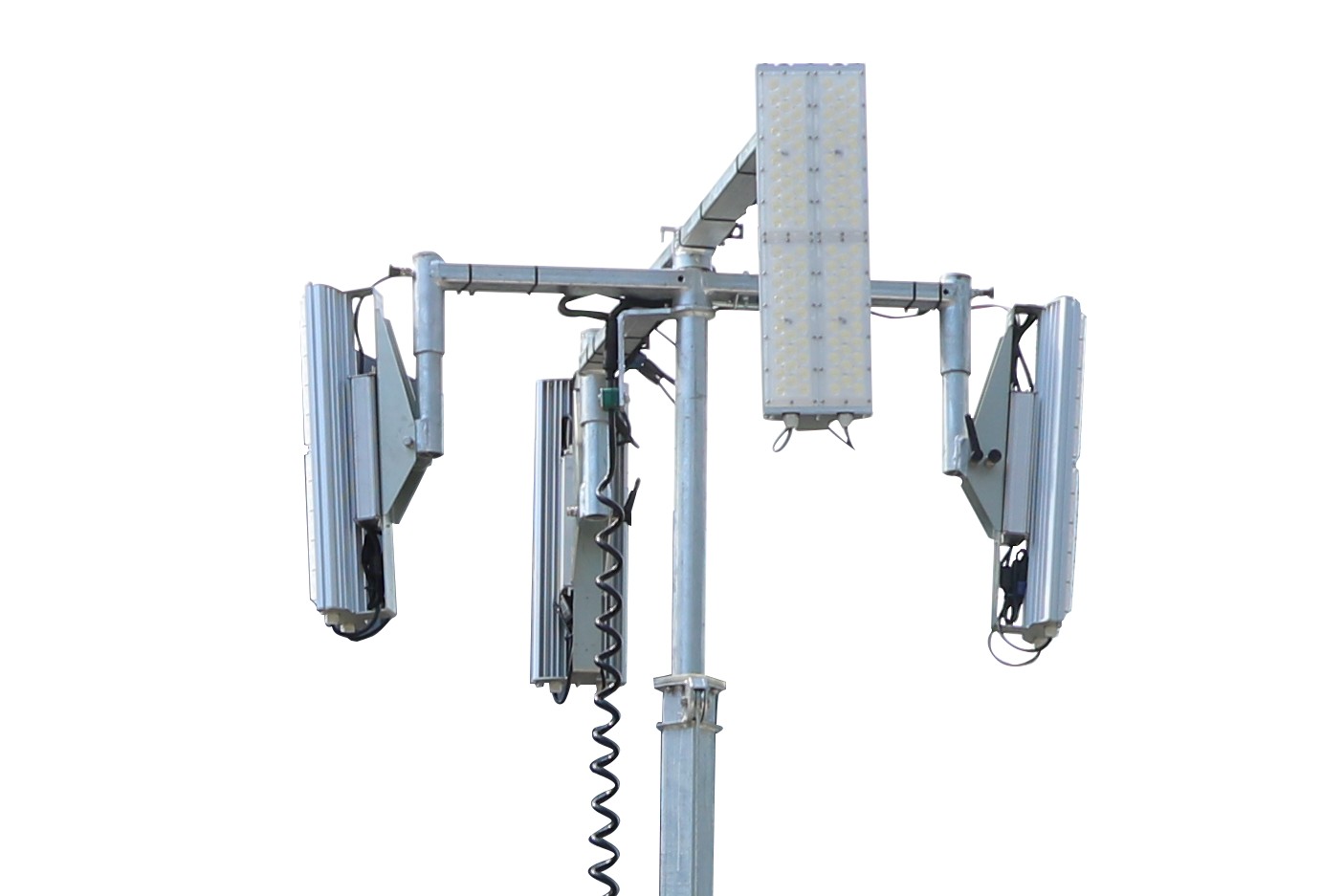

| Mast & Lights | Light | 4*300 W LED | 4*350 W LED | ||
| Luminous flux | 180,000 Lm | 210,000 Lm | |||
| Mast sections | 5 | ||||
| Mast extension | Manual, 2,500 lb winch | ||||
| Lighting direction | 90° for 2 light mounting tubes and 360° for each light | ||||
| Light tilt | Manual | ||||
| General Data | Fuel tank | 80 liters (21 US gal) Metal Sheet | |||
| Operating hours with full fuel | 105 hours | 97 hours | |||
| Power receptacle | 1 pcs US standard 20A | ||||
| Max. acoustic pressure | 65 dB(A) at 7 meters away | ||||
| Max. against wind | 20m/s (45 mph) | ||||
| Max. load in 40’ high cube | 23 | ||||
