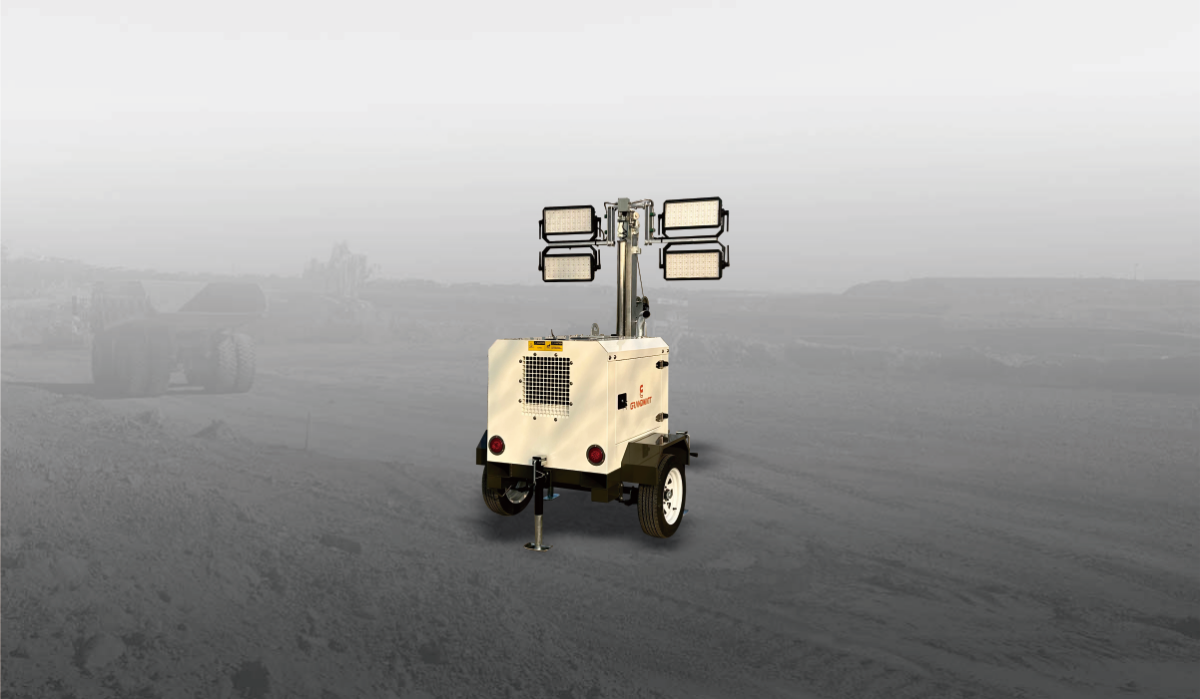

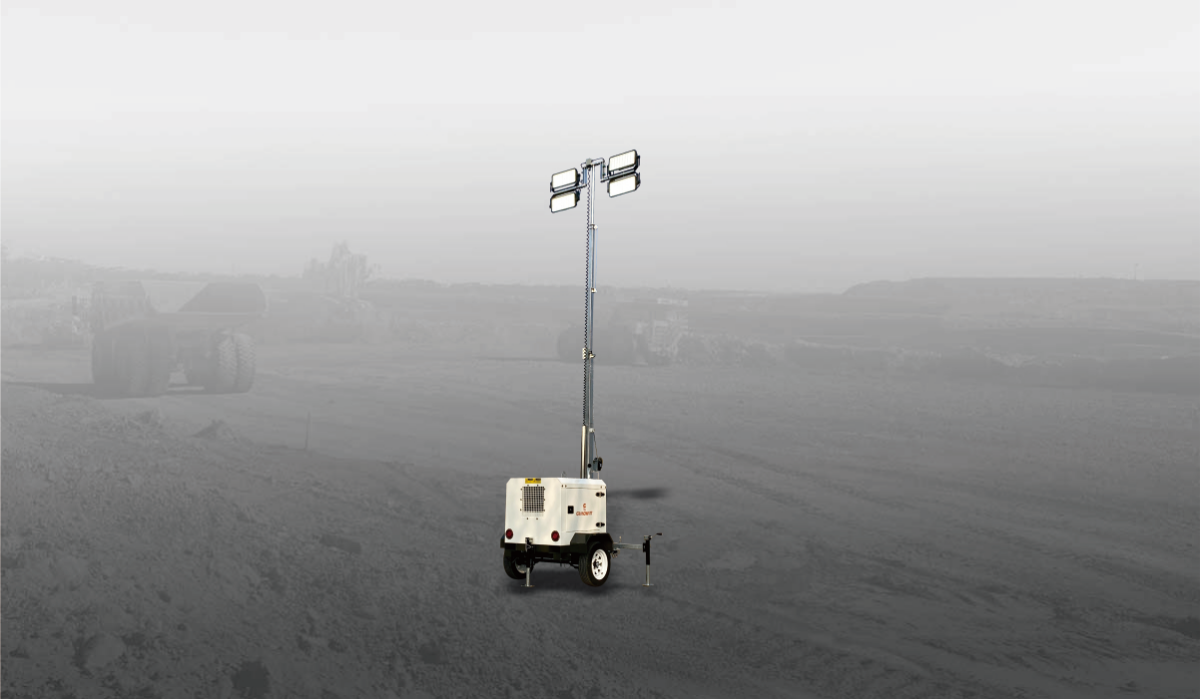

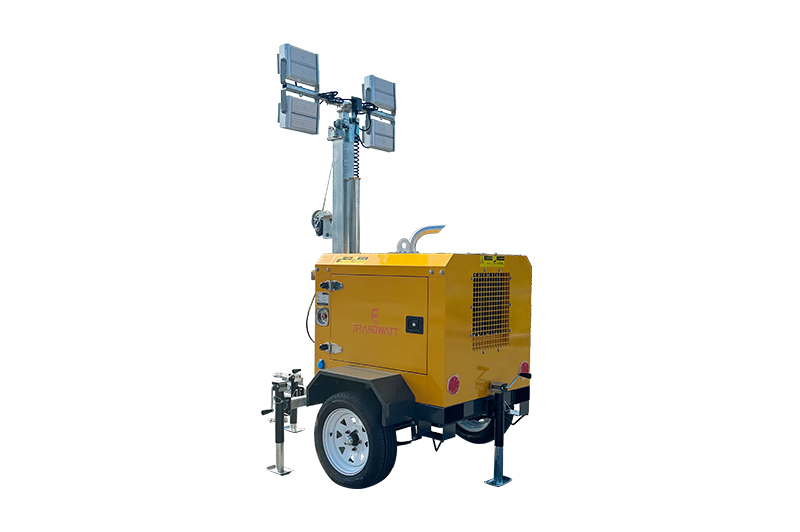

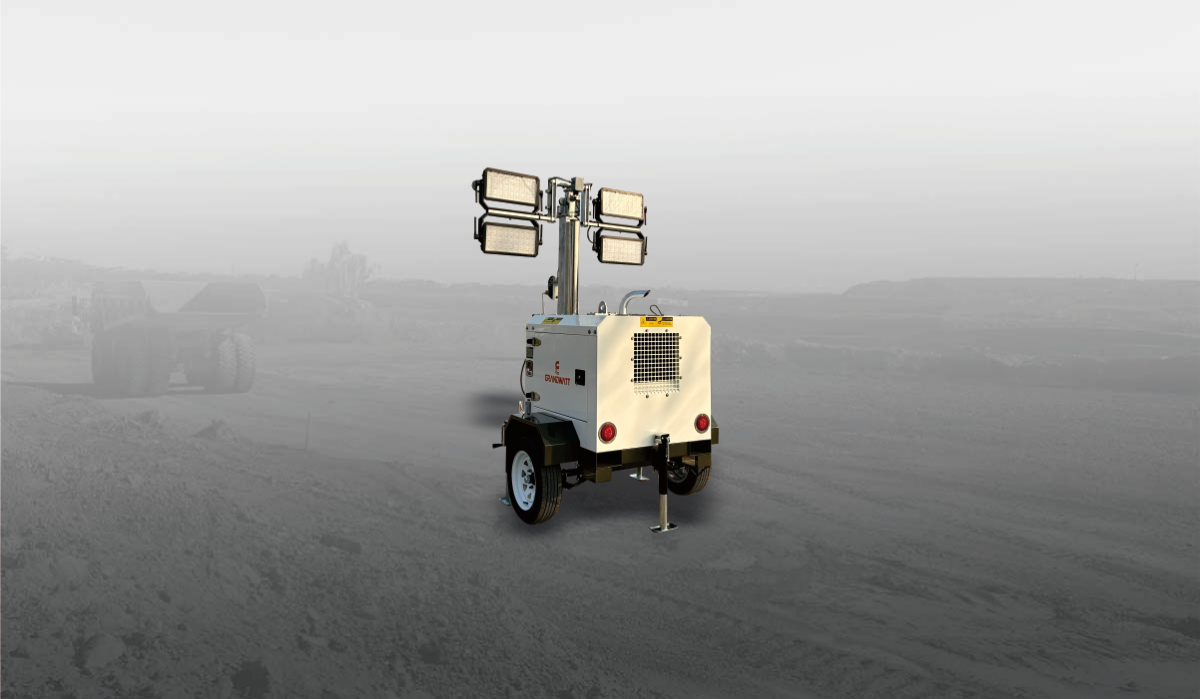

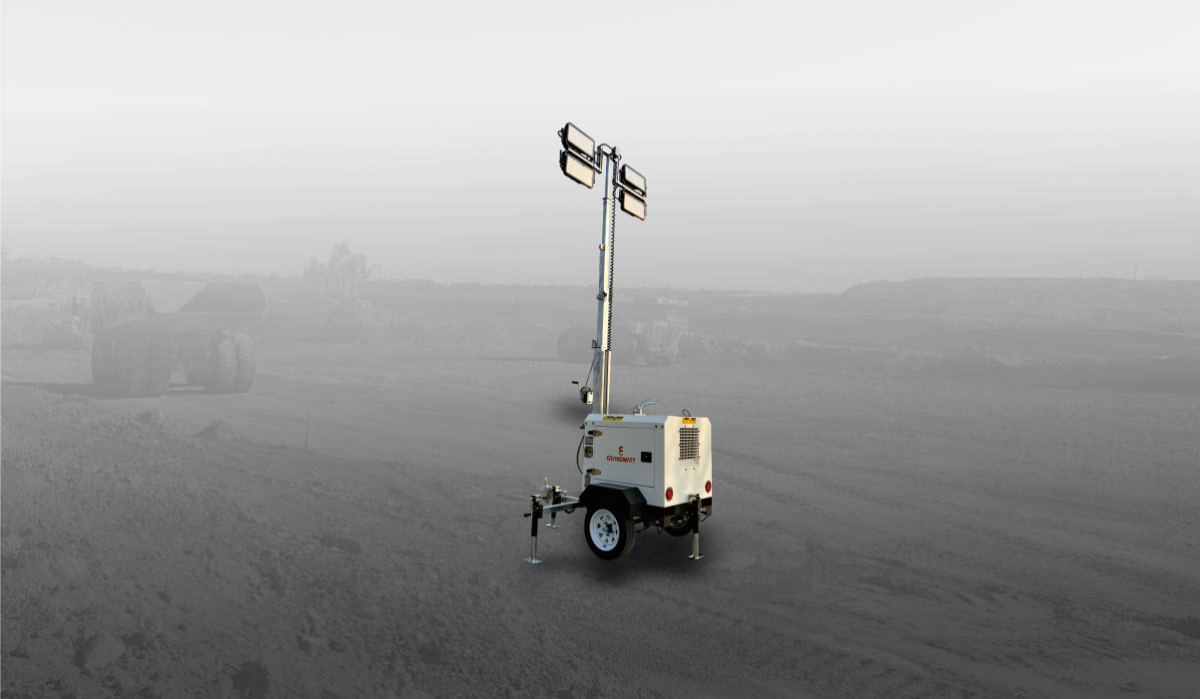

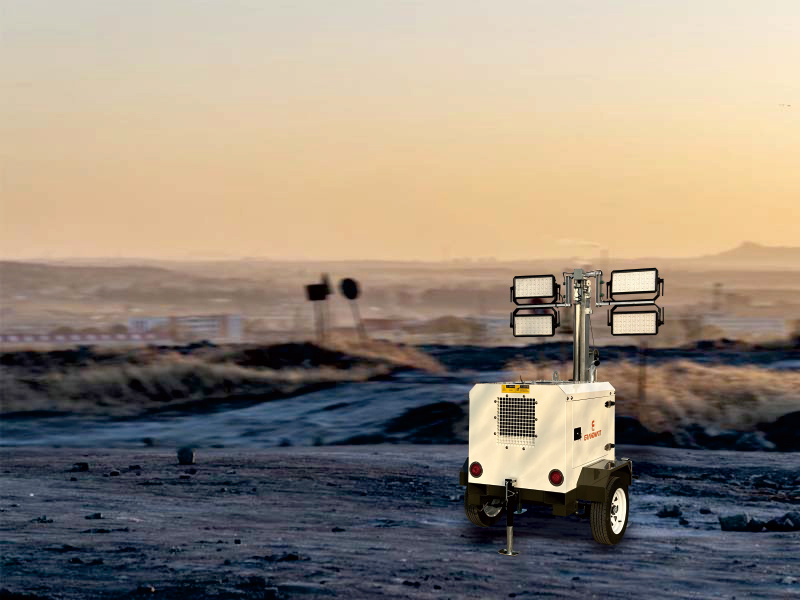

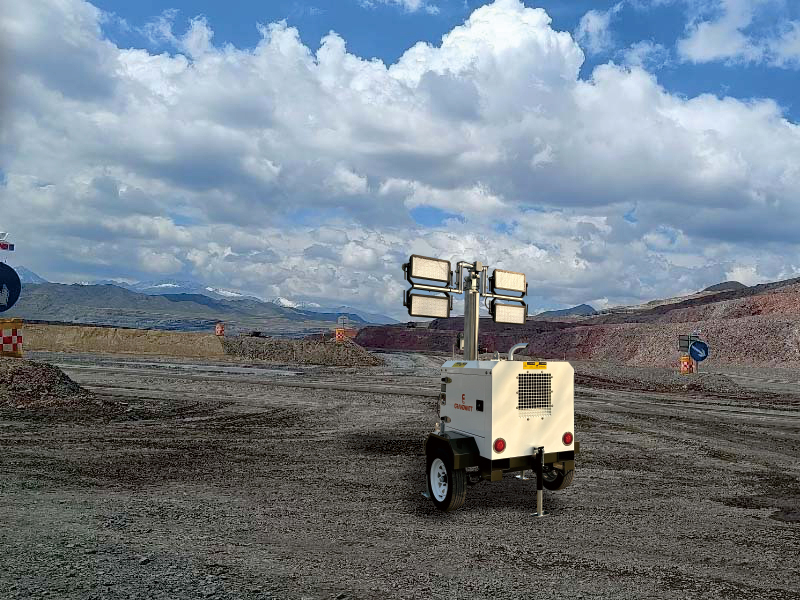

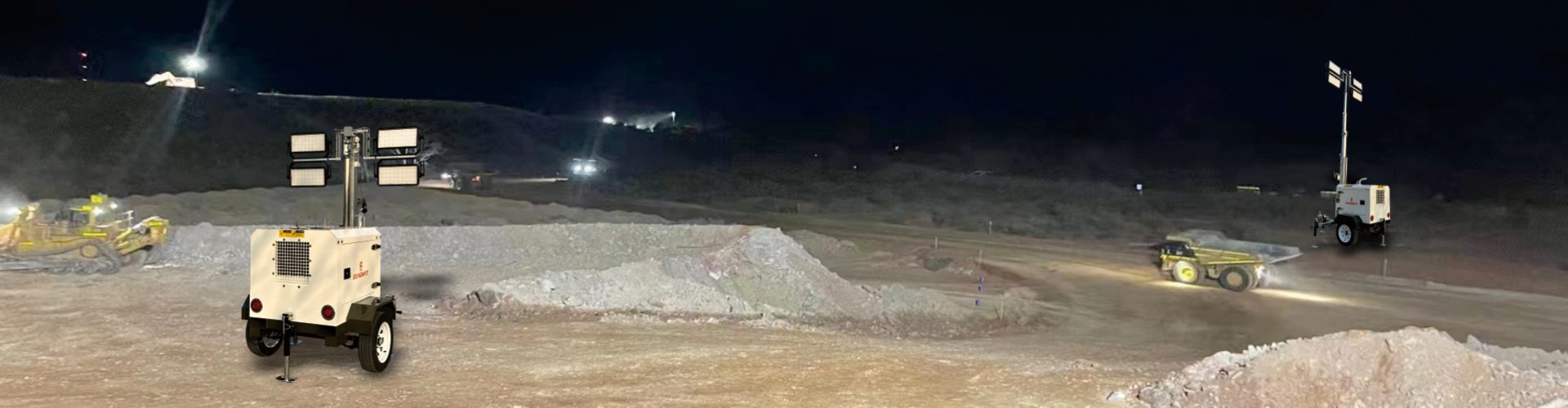

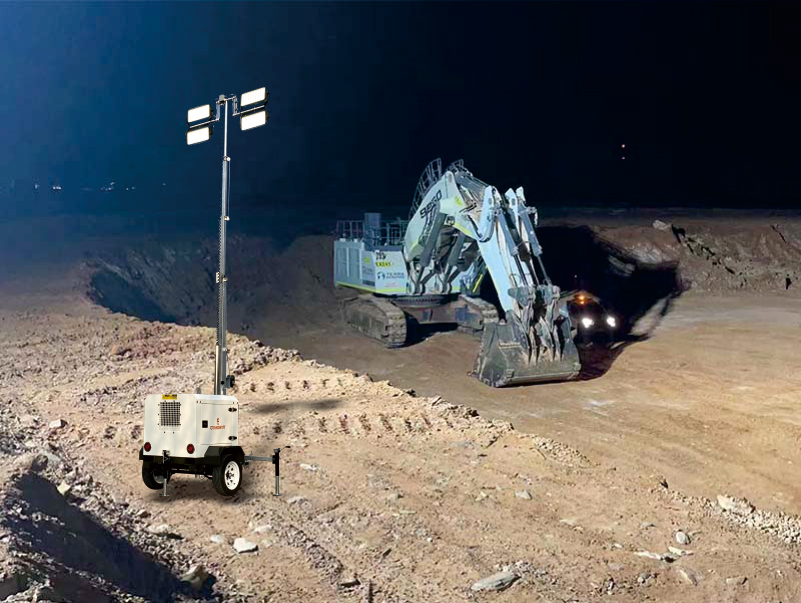

US-Spec Light Tower with Foldable Drawbar

Designed for the U.S. market, this compact light tower features a foldable drawbar, low-profile under-mounted LED lights and pallet-friendly transport width. Powered by a Kubota Tier 4 Final engine and Mecc Alte alternator, it delivers reliable lighting performance with 4 × 350W or 4 × 500W LED options and manual or hydraulic mast configurations.

product details

Main Feature

6*400 W LED, 396,000 Lumens

Electric 90° tilt

Electric 340° rotation

9.2 m hot dip galvanized telescopic tower, all actions are driven hydraulically

Automatically lights turn on and turn off controlled by the controller

4 pcs " A" style hydraulic legs

Spacious seagull wing door for convenient maintenance

Big fuel tank 348L (92 us gal) running 262 hours without refueling.

6*400W LED or 6*600W LED are optional.

Key Features & Benefits

Technical Specifications

TEXAS Series Light Tower
Standard Model		X8000		HX8100
Towing Dimensions	LengthWidthHeight	10′ 1″(3,080mm)4'(1,210mm)8'6½"(2,600mm)
Operating Dimensions	LengthMax.WidthHeight	10′ 1″(3,080mm)8′ 6¾″(2,610mm)25'8''(7,830mm)		10′ 1″(3,080mm)8′ 6¾″(2,610mm)26'7''(8,100mm)
Transport Sizes & Weight	LengthWidthHeight	6′ 5″(1,960mm)4'(1,210mm)8'4½"(2,550mm)
	Gross Weight	1,851 lb (840kg)		1,984 lb (900kg)
Vertical Mast	Actuation	Manual		Hydraulic Cylinder
	Rotation	340° Manual with Lockable Pin

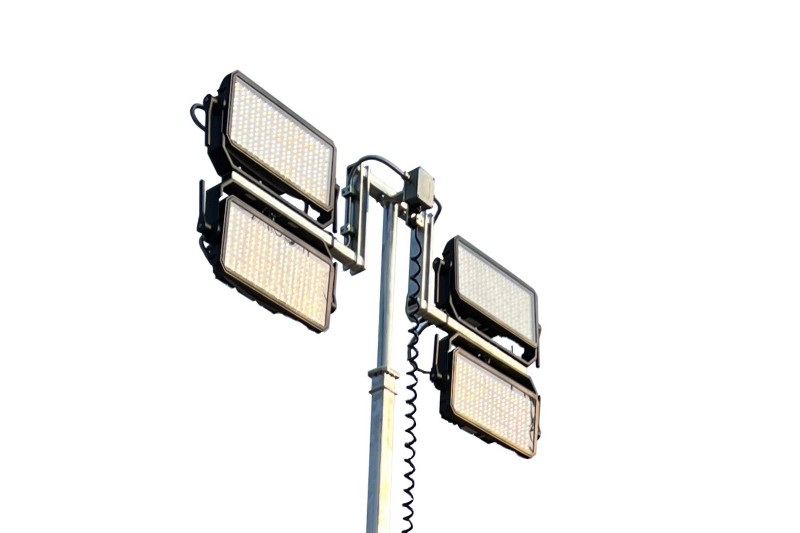

Lighting	LED	4*350W	4*500W	4*350W	4*500W
	Luminous Flux	210,000 Lumens	314,000 Lumens	210,000 Lumens	314,000 Lumens
Diesel Engine & Fuel Tank	Model	Kubota Z482-E4B
	Fuel Consumption	0.198 U.S.gal/h (0.75L/h)	0.264 U.S. gal/hr (1.00 L/h)	0.198 U.S.gal/h (0.75L/h)	0.264 U.S. gal/hr (1.00 L/h)
	Max. Running Time	206 h	155 h	206 h	155 h
	Tank Capacity	41 U.S. Gal (155 Liters)
Alternator	Model	Mecc Alte LT3N-130/4
Trailer	Towing Bar	90° foldable
General Data	Generator Output (Prime)	3KW/3KVA
	Control System	Deepsea DSEL401
	Noise Level dB(A) at 7m	66 dB(A)
Transport	Loading or Unloading	Top center lifting eye, 2 sides forklift pockets
	Number in 40' High Cube	10
	Number in 40' High Cube	13(Wheels, mudguard and Stabilizers have to be detached for loading)
	Number on 48' Flatbed	14
	Number on 53' Flatbed	16
